TD-8816 ADSL2+ Modem Router User Guide
36

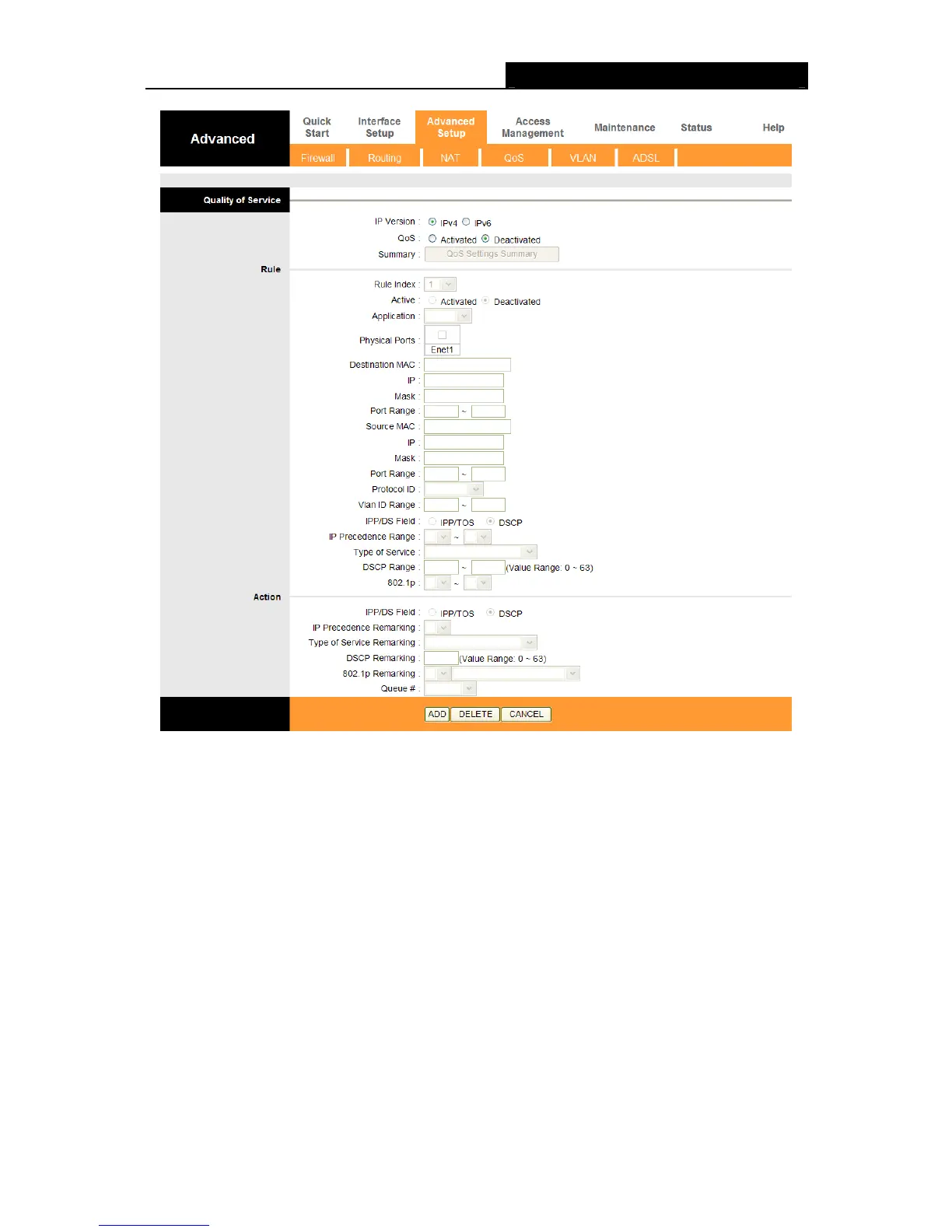

Figure 4-27
QoS: Select this option to Activate/Deactivate the QoS.
Summary: Click the button to view the configurations of QoS.
Rule: Configure the rules for QoS. If the traffic complies with the rule, then the modem router
will take the corresponding action to deal with it.
Rule Index: Select the index for the rule you want to configure.
Active: Activate the rule. The rule can take effect only when it is activated.
Application: Select the application that the rule aimed at.
Physical Ports: Select the port whose traffic flow are controlled by the rule.
Destination MAC & IP & Mask & Port Range: Enter the IP information about the
Destination host for the rule.
Source MAC & IP & Mask & Port Range: Enter the IP information about the Source
host for the rule.
Protocol ID: Select one among TCP/UDP, TCP, UDP and ICMP protocols for the
application.
Vlan ID Range: Enter the Vlan range, then the rule will be effective to the selected
