TD-8816 ADSL2+ Modem Router User Guide
44
Note:
If you want to make the rule take effect, please select
Yes
to active the rule.

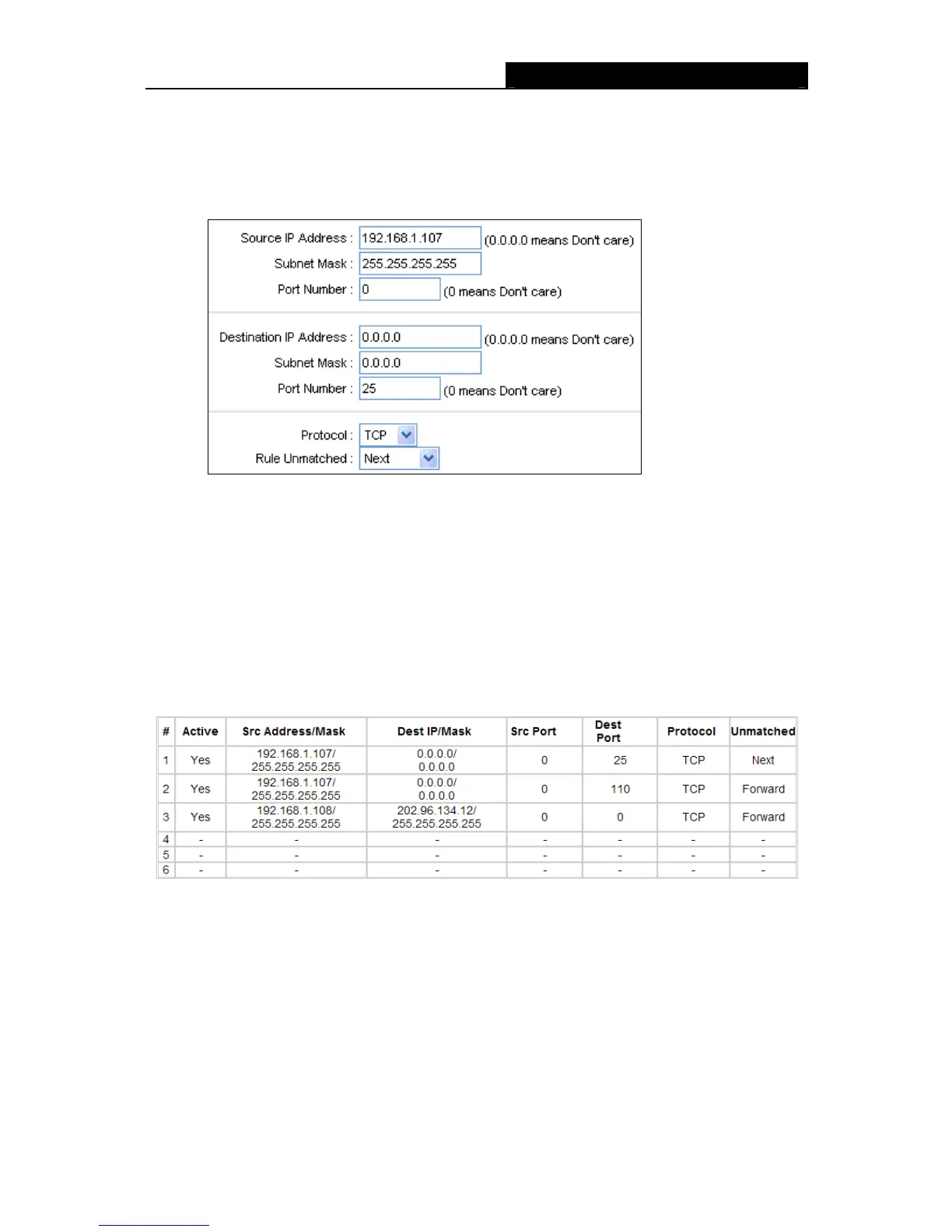

Step 3: Enter the “Source IP Address”, “Destination IP Address”, “Subnet Mask” and “Port
Number” in the corresponding field.
Step 4: Select the Protocol as “TCP” and select the Unmatched rule as “Next”.
Step 5: Finally, click the SAVE to save the entry.
Step 6: Go to Step 2 to configure the next two rules: Block E-mail received by the IP address
192.168.1.107 on your local network; Make the PC with IP address 192.168.1.108
unable to visit the website of IP address 202.96.134.12.
Note:
After you complete the IP filter rules for the example, the Filter list will show as follows. You can
enter the IP / MAC Filter Set Index to view the information about the rule.
Other configurations for the entries as shown in Figure 4-35:
Enter the IP
/ MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry.
Enter the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and
then click the DELETE button to delete the entry.
4.5.2.2. MAC Filter
Select I
P/MAC Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-36),
then you can configure the filter rules based on MAC address.
