TD-8840 ADSL2+ Modem Router User Guide
8
Chapter 3. Quick Installation Guide
3.1 Configure PC
After you directly connect your PC to the TD-8840 or connect your adapter to a Hub/Switch which
has connected to the Router, you need to configure your PC’s IP address. Now you have two
ways to configure the TCP/IP protocol below:
¾ Setting IP address automatically
Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).

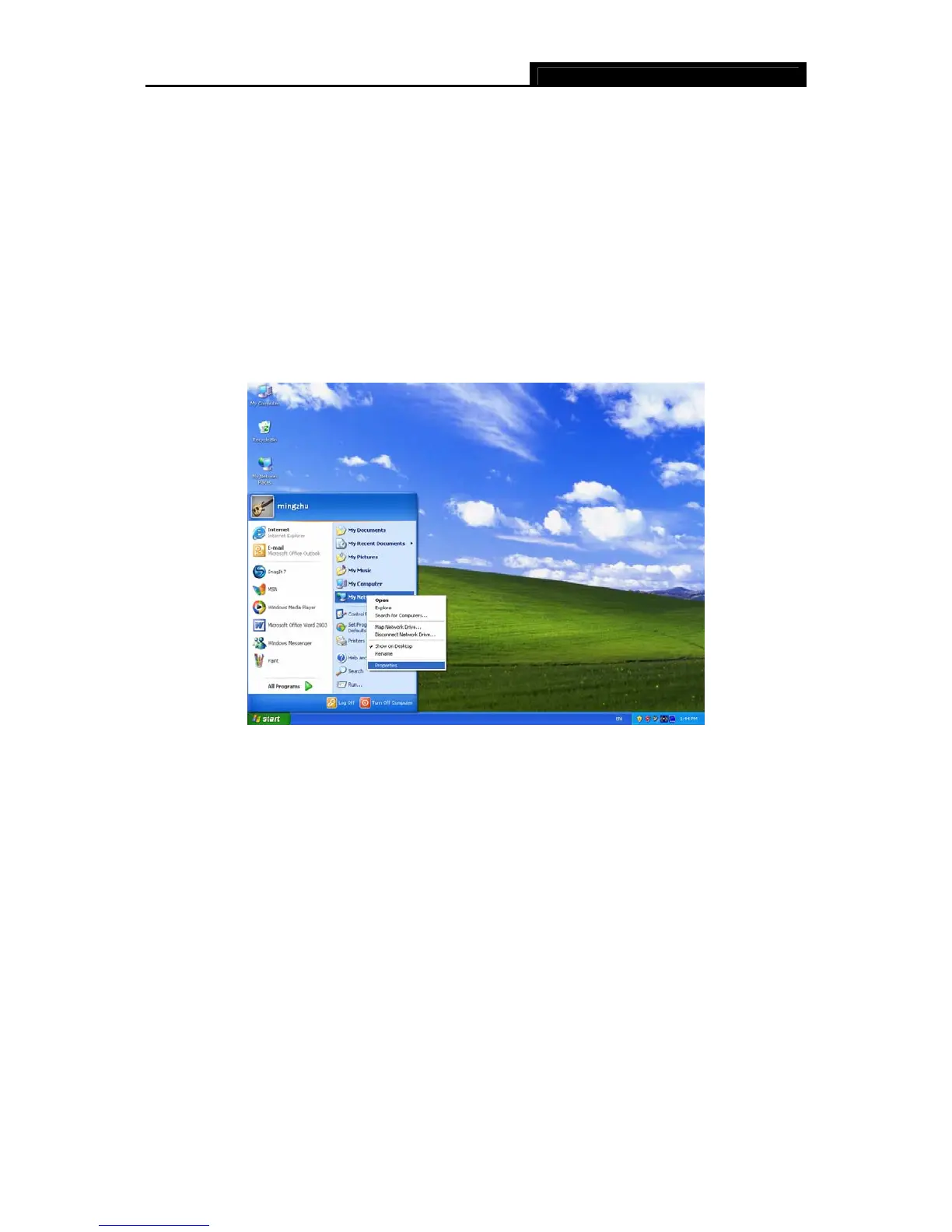

Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.
To Next Page
