TP-Link TD-8840 User Manual

TD-8840 ADSL2+ Modem Router User Guide
12

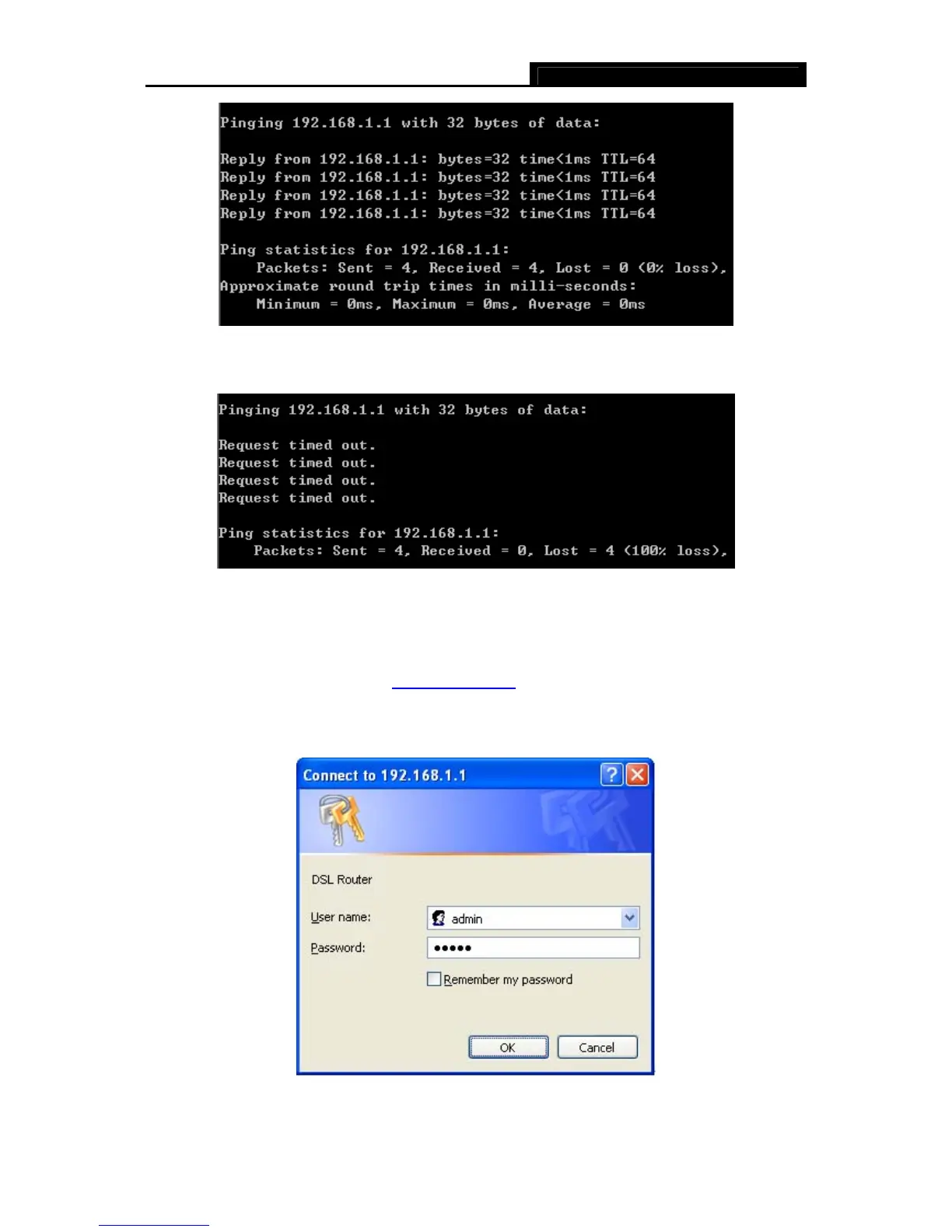

Figure 3-6
If the screen looks like the following, the connection has failed. Please try again.
Figure 3-7
3.2 Login
Open your web browser and enter http://192.168.1.1 in the address bar of the browser. When
ADSL connection is OK, the following login box will pop up. Enter default user name (admin) and
password (admin) as shown in Figure 3-8. Click OK to enter the Web-based Utility of the Router.
Figure 3-8

TP-Link TD-8840 Specifications

General

Brand	TP-Link
Model	TD-8840
Category	Network Router
Language	English
