TP-Link TD-W300KIT User Manual

TD-W8961ND 300Mbps Wireless N ADSL2+ Modem Router User Guide
13

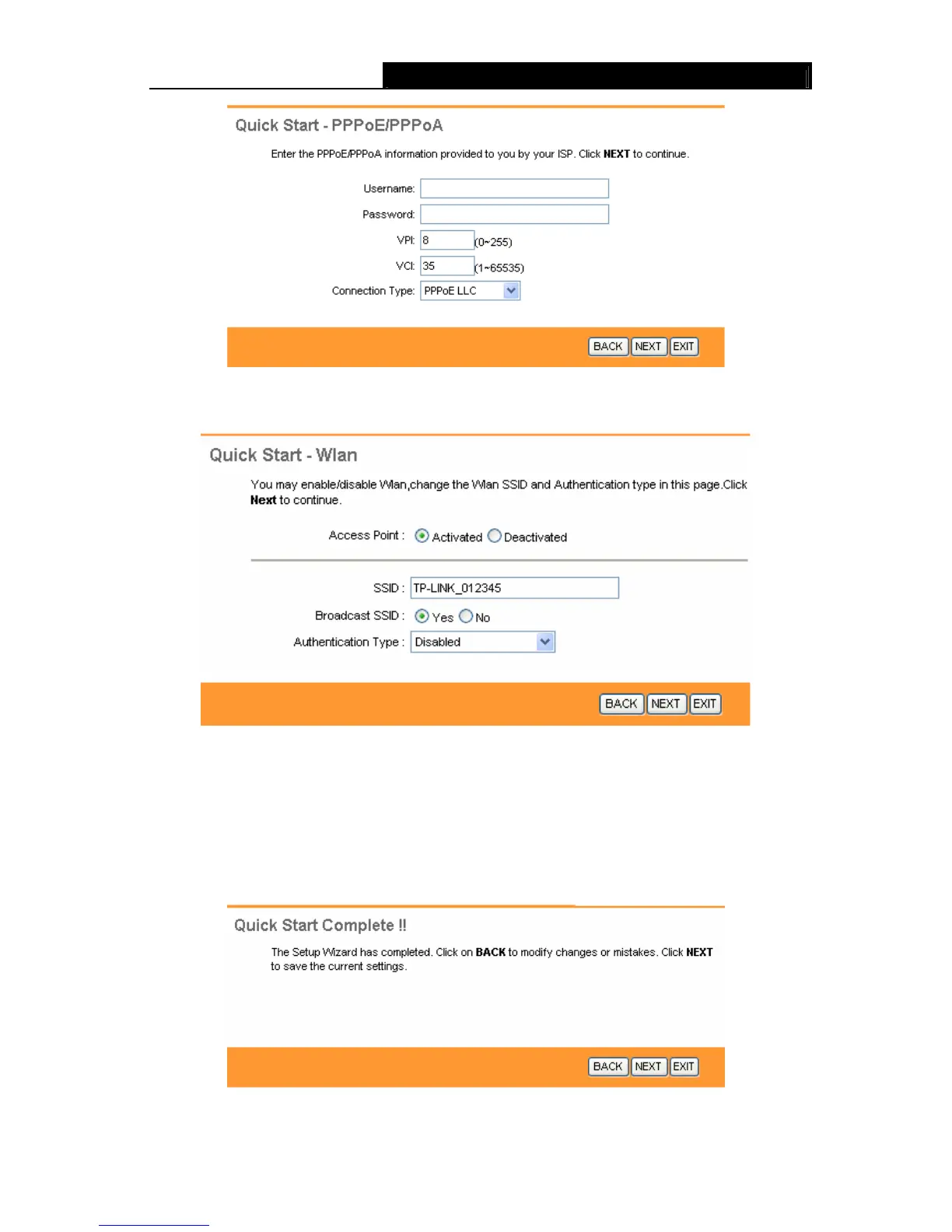

Figure 3-11
Step 5: Configure the rules for the WLAN, and click NEXT.
Figure 3-12
)
Note:
If the Access Point is activated, the wireless function will be available even without the external
antenna because of an additional printed antenna. To adopt the wireless security protection
measures, please refer to section 4.3.3.
Step 6: Click NEXT to finish the Quick Start.
Figure 3-13

TP-Link TD-W300KIT Specifications

General

Brand	TP-Link
Model	TD-W300KIT
Category	Network Router
Language	English
