TD-W8101G 54M Wireless ADSL2+ Router User Guide
12

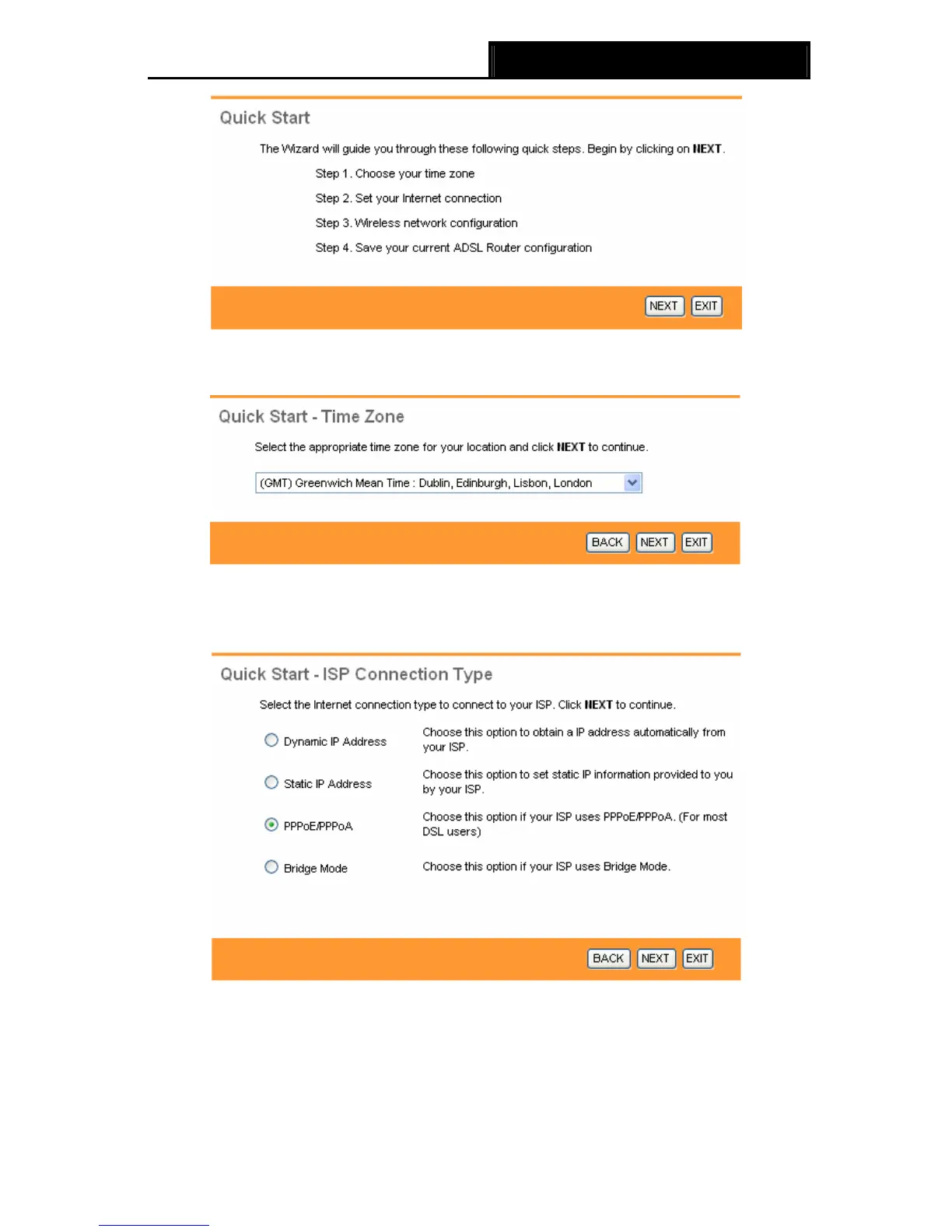

Figure 3-8
Step 2: Configure the time for the Router, and then click the NEXT button.
Figure 3-9
Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for
example here), and then click the NEXT button.
Figure 3-10
Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI
and Connection Type. Then click Next.
