TD-W8101G 54M Wireless ADSL2+ Router User Guide
36

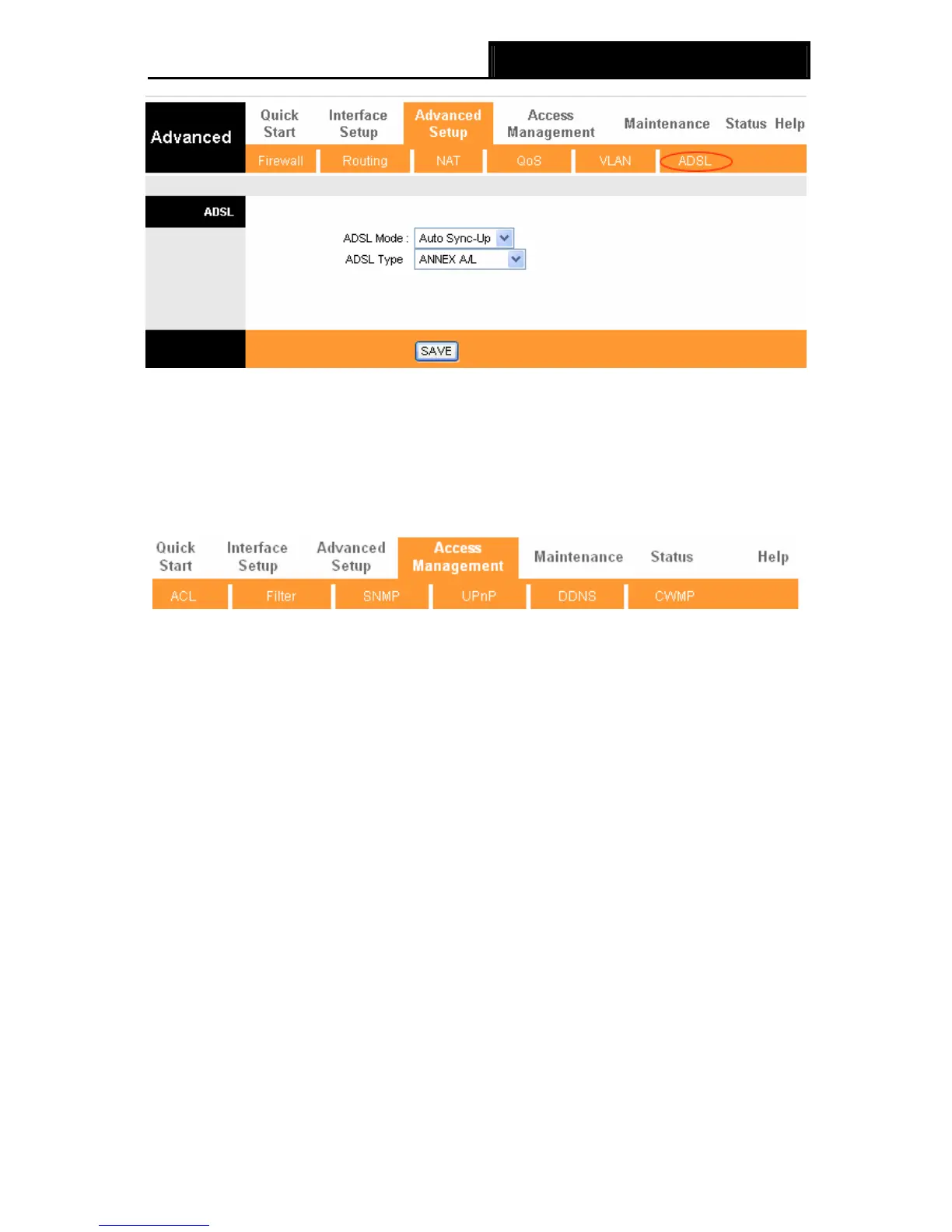

Figure 4-29
¾ ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.
¾ ADSL Type: Select the ADSL operation type which your ADSL connection uses.
4.5 Access Management
Choose “Access Management”, you can see the next submenus:
Figure 4-30
Click any of them, and you will be able to configure the corresponding function.
4.5.1 ACL
Choose “Access Management→ACL”, you can see the next screen (shown in Figure 4-31). You
can specify the client to access the ADSL Router once setting his IP as a Secure IP Address
through selected applications.
