TL-MR3020 Portable 3G/4G Wireless N Router

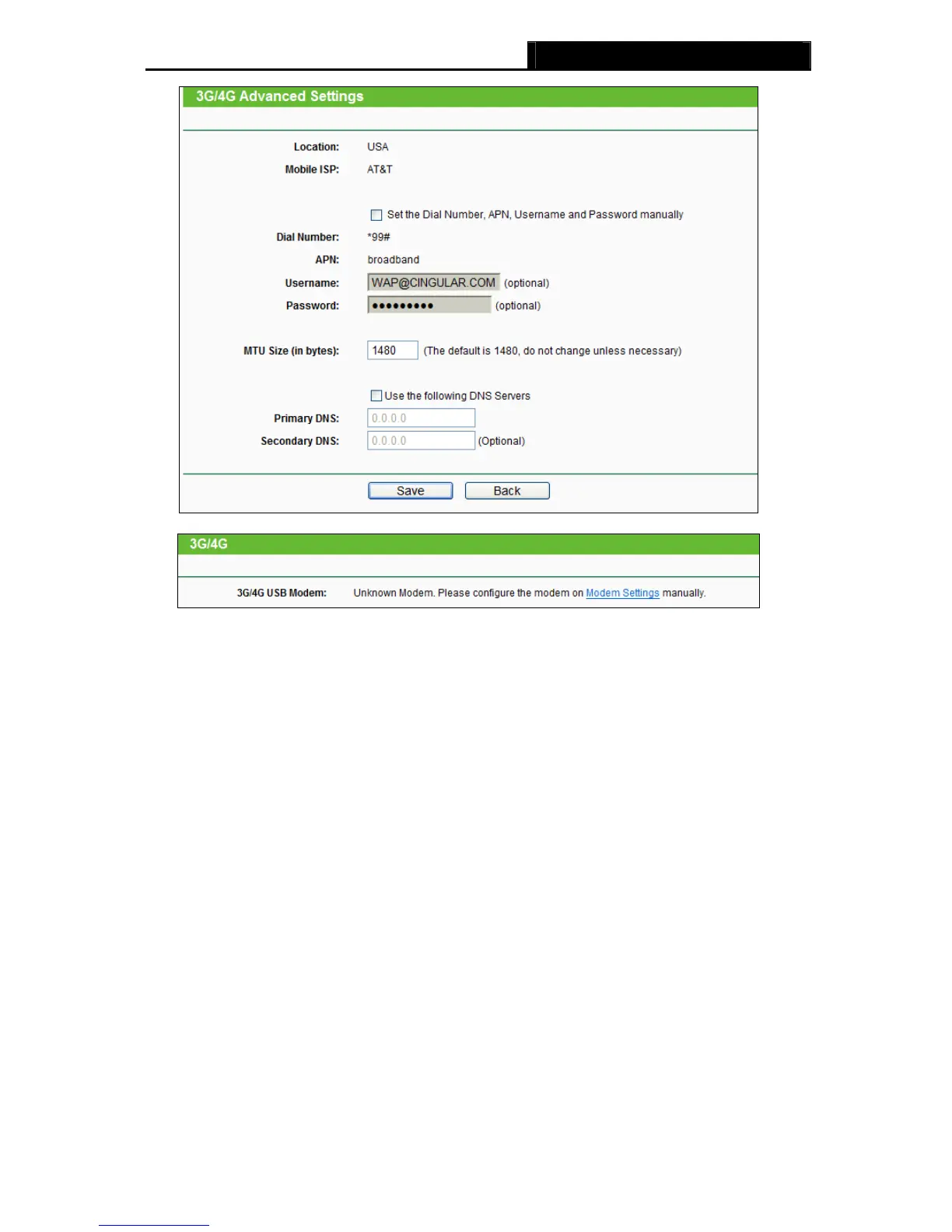

Figure 4-7
Figure 4-8
Location - Please select the location where you're enjoying the 3G/4G card.
Mobile ISP - Please select the ISP (Internet Service Provider) you apply to for 3G/4G
service. The router will show the default Dial Number and APN of that ISP.
Set the Dial Number and APN manually - Check the box and fill the Dial Number and
APN blanks below if your ISP is not listed in the Mobile ISP list or the default values are not
the latest ones.
Dial Number - Enter the Dial Number provided by your ISP.
APN - Enter the APN (Access Point Name) provided by your ISP.
Username/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive.
Click the Connect button to connect to your 3G/4G network. Once the connection is successful,
you will find the 3G/4G screen is similar to Figure 4-9. Click menu St
atus and you will see the
3G/4G status is similar to Figure 4-10.
-38-
