TL-MR3020 Portable 3G/4G Wireless N Router
WEP Index - This option should be chosen if the key type is WEP(ASCII) or
WEP(HEX).It indicates the index of the WEP key.
Auth Type - This option should be chosen if the key type is WEP(ASCII) or
WEP(HEX).It indicates the authorization type of the Root AP.
Password - If the AP your Router is going to connect needs password, you need to fill
the password in this blank.
4.6.2 Wireless Security
Choose menu “Wireless→Wireless Security”, you can configure the security settings of your
wireless network.
There are five wireless security modes supported by the Router: WEP (Wired Equivalent
Privacy), WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA2-PSK
(Pre-Shared Key), WPA-PSK (Pre-Shared Key).

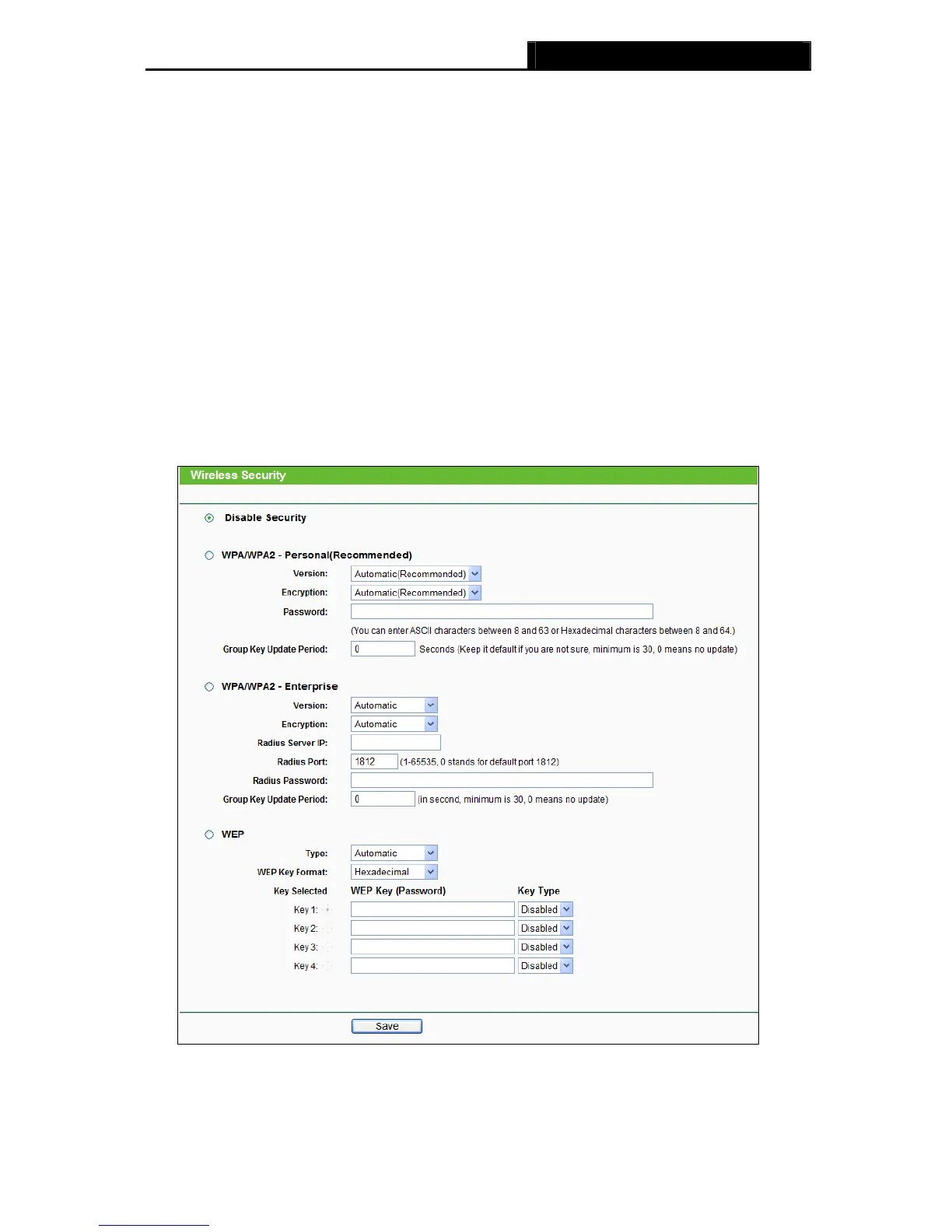

Figure 4-24
Disable Security
- If you do not want to use wireless security, select this check box, but it’s
strongly recommended to choose one of the following modes to enable security.
-55-
