TP-Link TL-WA5110G User Manual

51
To set up for DDNS, follow these instructions:
1. Enter the User Name for your DDNS account.
2. Enter the Password for your DDNS account.
3. Click the Login button to log in to the DDNS service.
¾ Connection Status - The status of the DDNS service connection is displayed here.
¾ Domain Name - The domain names are displayed here.
Click Logout to log out the DDNS service.
4.12.3 Comexe.cn DDNS
If your selected dynamic DNS Service Provider is www.comexe.cn, the page will appear as
shown in Figure 4-49:

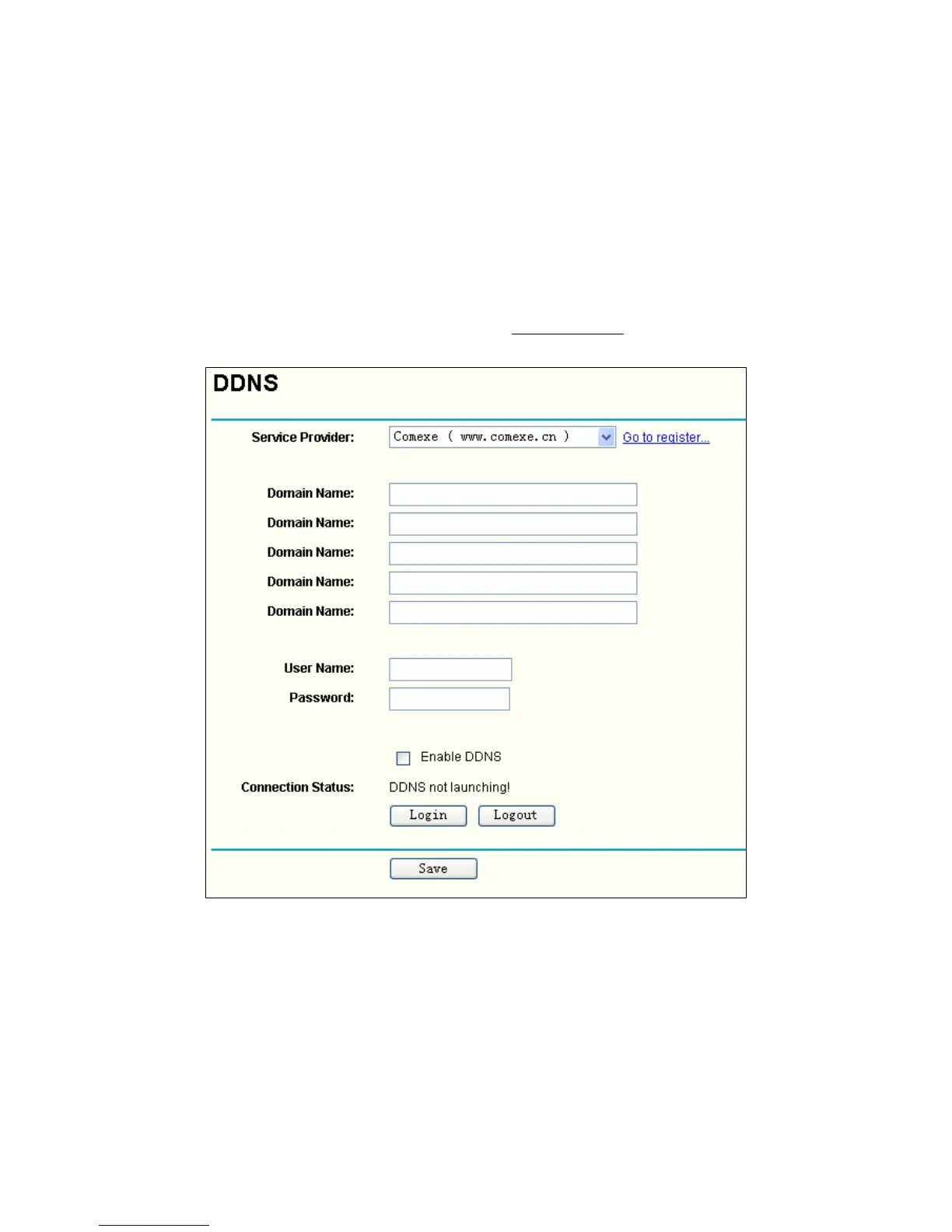

Figure 4-49 Comexe.cn DDNS Settings
To set up for DDNS, follow these instructions:
1. Enter the domain names your dynamic DNS service provider gave.
2. Enter the User Name for your DDNS account.
3. Enter the Password for your DDNS account.
4. Click the Login button to log in to the DDNS service.
¾ Connection Status -The status of the DDNS service connection is displayed here.
Click Logout to log out the DDNS service.

TP-Link TL-WA5110G Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm
Maximum data transfer rate	54 Mbit/s
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Non-operating relative humidity (non-condensing)	5 - 95 %
Antenna gain level (max)	4 dBi
Internal	No
Certification	CE FCC
Supported network protocols	PPPoE, IP
Ethernet LAN (RJ-45) ports	1
Output power description	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	165 x 108 x 28 mm
