TP-Link TL-WPS510U - Page 27

TL-WPS510U Pocket-sized Wireless Print Server
21

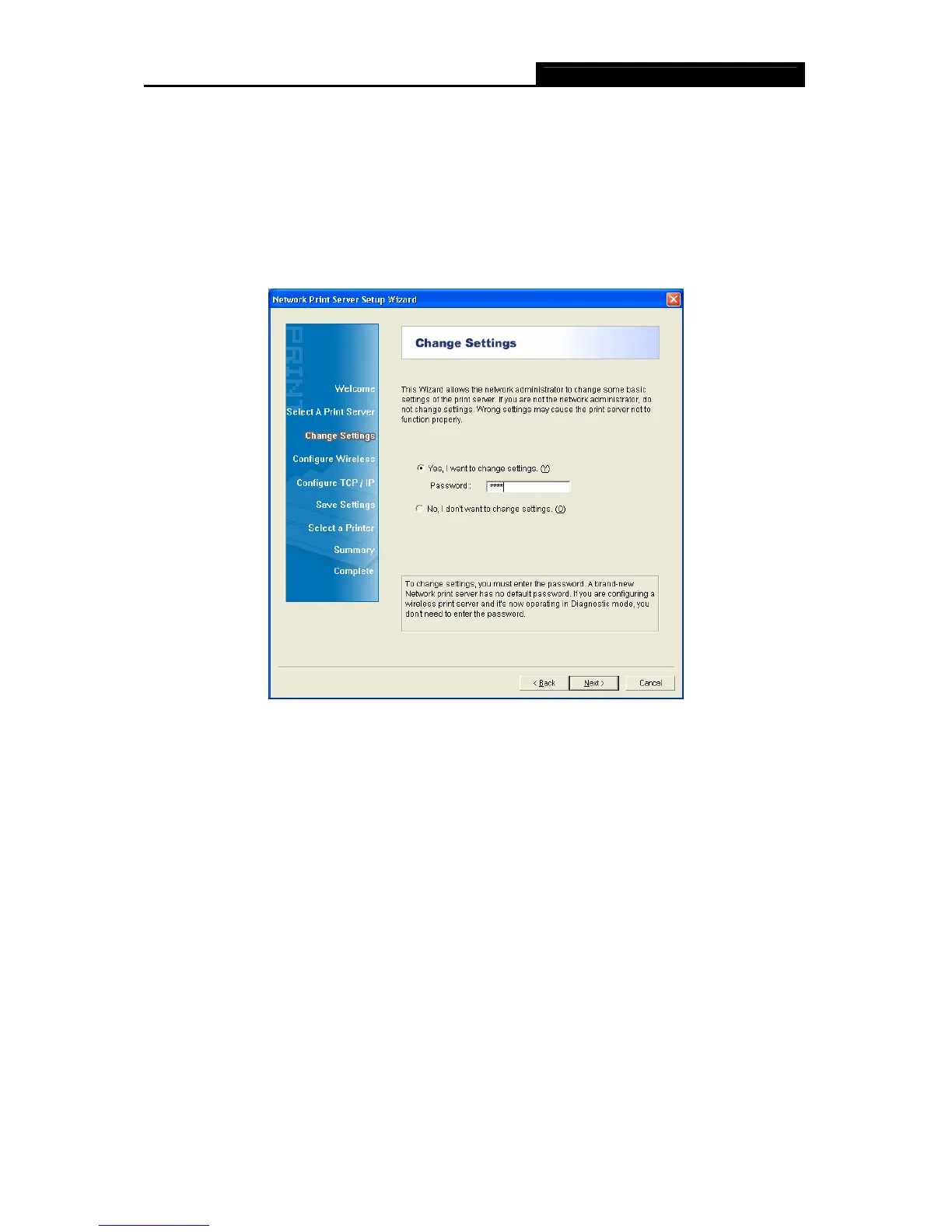

13. On the Change Settings screen as shown in Figure 3-32, select Yes or No.
¾ Select
“Yes” if you want to change the settings. The default password is 0000. Click Next
and then appears “Basic Wireless Settings” screen as shown in Figure 3-33. Proceed
with Step 7.
¾ Select
“No” if you don’t need to change any settings. Click Next and then appears Figure
3-38. Skip to
Step 23.
Figure 3-32
14. Configure the following wireless parameters in Figure 3-33 and then click N
ext.
¾ Communication Type: Options available are Infrastructure and Ad-Hoc. Select
Infrastructure here.
¾ SSID: Enter the SSID (network name) of the wireless network you want to connect.
Here takes TP-LINK_A4161E for example.
¾ Channel Number: Keep the default setting.
¾ Data Transmit Rates: Keep the default setting.
¾ Transmit Mode: Keep the default setting.
