TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 98 -

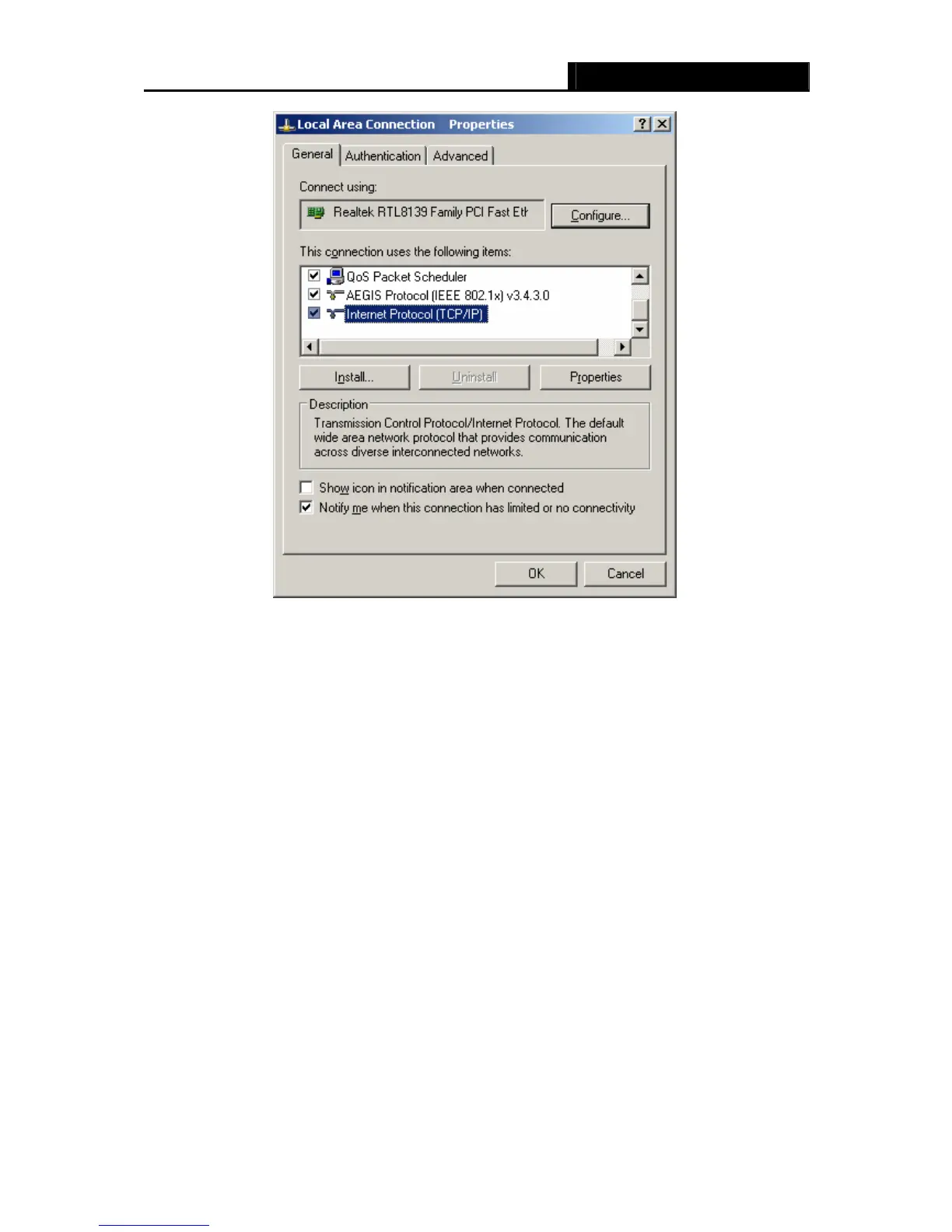

Figure 0-2
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
Now you have two ways to configure the TCP/IP protocol below:
¾ Setting IP address automatically
Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as
shown in the Figure below:

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in and is the answer not in the manual?

TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in Specifications

General IconGeneral
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4-2.4835GHz
Antenna5dBi fixed omni directional antenna
ButtonReset Button
Operating Temperature0°C~40°C (32°F~104°F)
Storage Temperature-40°C~70°C (-40°F~158°F)
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Signal Rate11n: Up to 150Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
Ports4 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
Power Supply9VDC / 0.6A
Wireless Security64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Weight0.3 kg
