TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 99 -

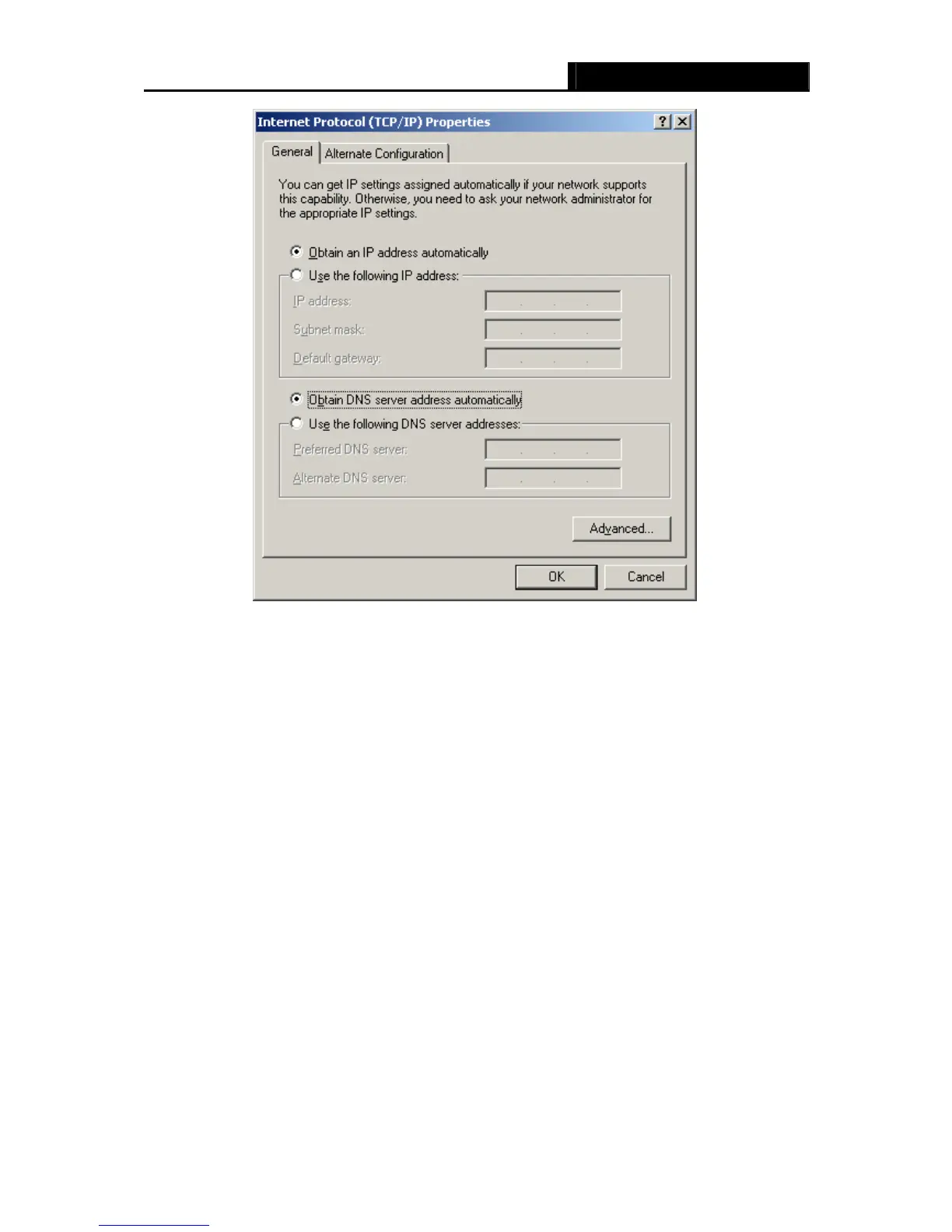

Figure 0-3
)
Note:
For Windows 98 OS or before, the PC and Router may need to be restarted.
¾ Setting IP address manually
1 Select Use the following IP address radio button. And the following items available
2 If the Router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x (x is
from 2 to 254), and the Subnet mask as 255.255.255.0.
3 Type the Router’s LAN IP address (the default IP is 192.168.1.1) into the Default gateway
field.
4 Select Use the following DNS server addresses. In the Preferred DNS Server field you
can enter the same value as the Default gateway or type the local DNS server IP address.

TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Antenna	5dBi fixed omni directional antenna
Button	Reset Button
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Signal Rate	11n: Up to 150Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
Ports	4 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
Power Supply	9VDC / 0.6A
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Weight	0.3 kg
