98
Chapter 5
Congure the Router in Hotspot Router Mode

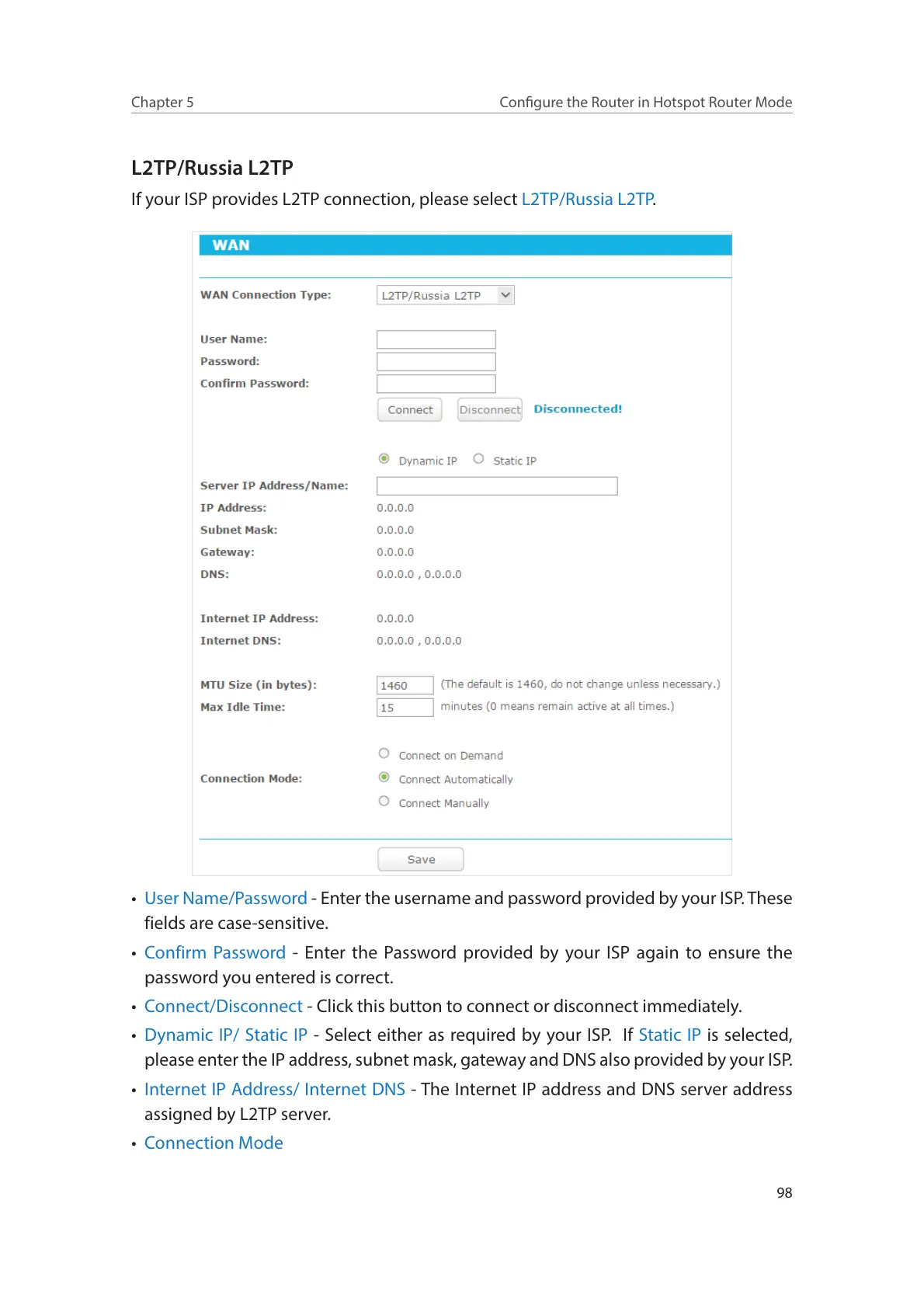

L2TP/Russia L2TP
If your ISP provides L2TP connection, please select L2TP/Russia L2TP.
• User Name/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.
• Confirm Password - Enter the Password provided by your ISP again to ensure the
password you entered is correct.
• Connect/Disconnect - Click this button to connect or disconnect immediately.
• Dynamic IP/ Static IP - Select either as required by your ISP. If Static IP is selected,
please enter the IP address, subnet mask, gateway and DNS also provided by your ISP.
• Internet IP Address/ Internet DNS - The Internet IP address and DNS server address
assigned by L2TP server.
• Connection Mode
