29
Chapter 4
Configure the Router in Standard Router Mode

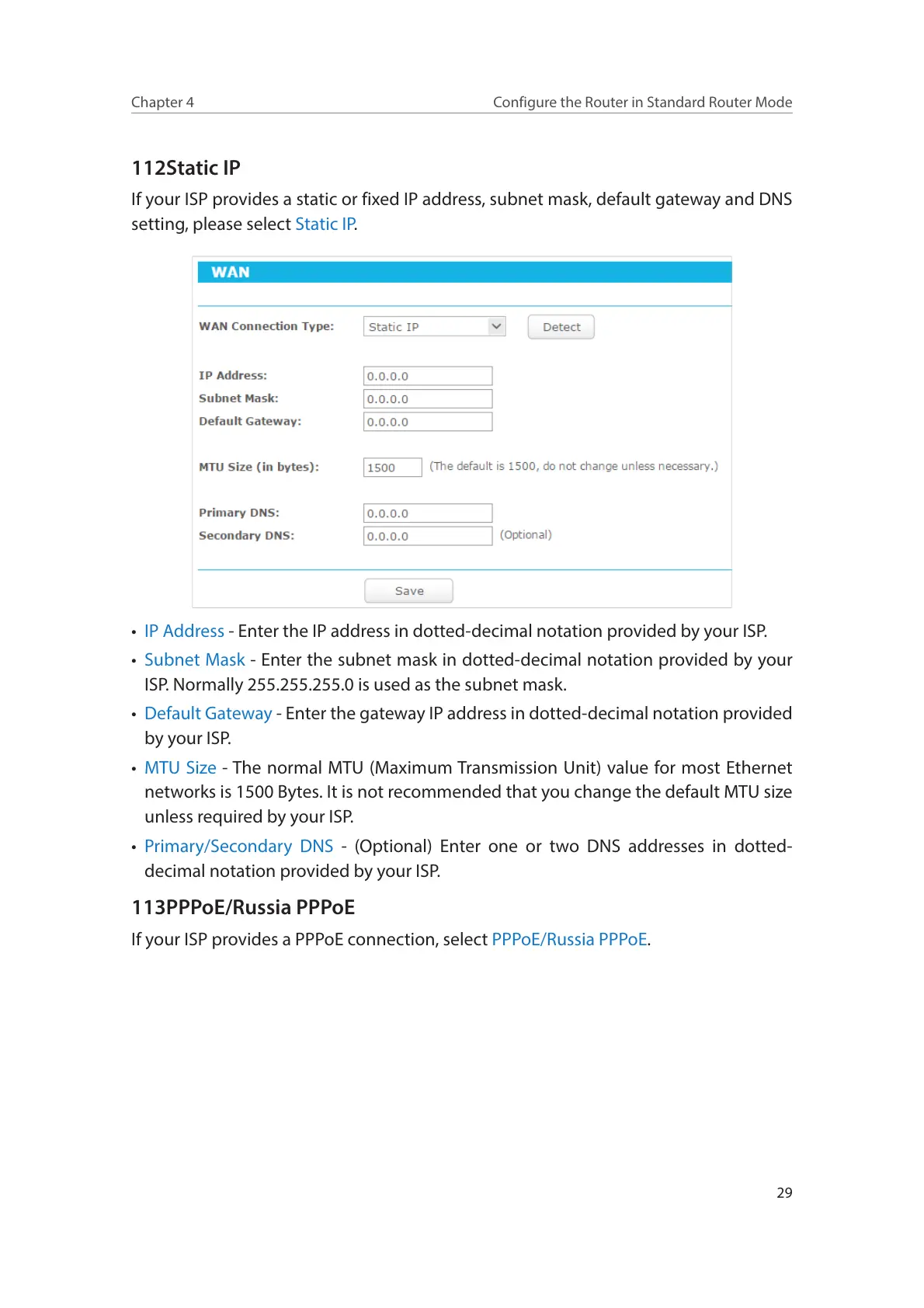

112Static IP
If your ISP provides a static or fixed IP address, subnet mask, default gateway and DNS
setting, please select Static IP.
• IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
• Subnet Mask - Enter the subnet mask in dotted-decimal notation provided by your
ISP. Normally 255.255.255.0 is used as the subnet mask.
• Default Gateway - Enter the gateway IP address in dotted-decimal notation provided
by your ISP.
• MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. It is not recommended that you change the default MTU size
unless required by your ISP.
• Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-
decimal notation provided by your ISP.
113PPPoE/Russia PPPoE
If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE.
