TP-Link VIGI NVR1008H Installation Guide

English
1
Note: images may dier from the actual products.
Hard Drive Installation
For first time installation, please prepare a 3.5-inch hard disk drive (HDD). It is
recommended to use the HDD of enterprise or surveillance level. Before installation,
please disconnect the power from the network video recorder (NVR).

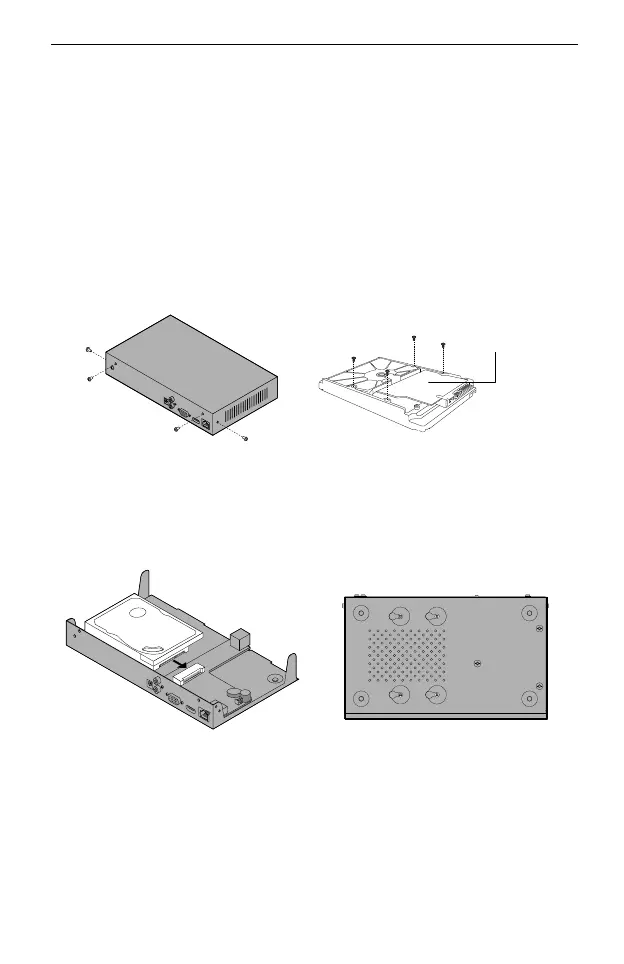

For steel shell products
1�
R
emove the xing screws on the side
and back panels to open the cover of
the NVR.
2� Attach the 4 included HDD screws
to your hard drive. Do not fasten.
Hard Disk Drive (HDD)
3� Match the 4 screws on the HDD with
the 4 holes on the NVR, and insert the
HDD interface into the slot.
4�
F
lip the NVR upside down and
fasten the HDD screws. Replace the
cover and fasten the screws of the
NVR.

TP-Link VIGI NVR1008H Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	8 channels
Supported resolutions	1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Video recording modes	1080p
Number of simultaneously playbacked channels	4 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	0 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Power supply	18 W
Output voltage	12 V
Operating temperature (T-T)	-10 - 55 °C
Harmonized System (HS) code	85219000

Weight and Dimensions

Depth	148.2 mm
Width	246.2 mm
Height	42.6 mm
Weight	578.5 g
Package depth	296.5 mm
Package width	277.5 mm
Package height	64.5 mm
Package weight	1070 g
