TP-Link VIGI NVR1008H Installation Guide

English
2

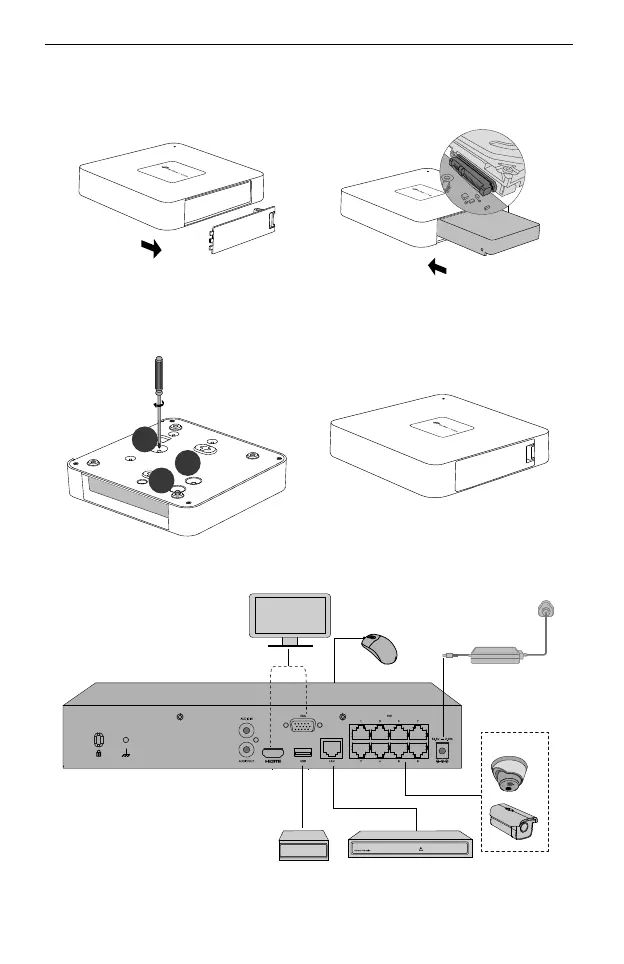

For plastic shell products
1�
P
ress and hold the side cover button
to remove the side cover.
2�
Push the HDD and ins
ert it into the
hard disk slot.
3� Fasten the screws to secure the HDD
according to the actual HDD screw
holes�
4� Install back the side cover.
2
1
3
Hardware Connection
Monitor
Or
Mouse
PoE IPC*
USB Storage
Device
Network Device
(e.g. router, switch)

TP-Link VIGI NVR1008H Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	8 channels
Supported resolutions	1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Video recording modes	1080p
Number of simultaneously playbacked channels	4 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	0 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Power supply	18 W
Output voltage	12 V
Operating temperature (T-T)	-10 - 55 °C
Harmonized System (HS) code	85219000

Weight and Dimensions

Depth	148.2 mm
Width	246.2 mm
Height	42.6 mm
Weight	578.5 g
Package depth	296.5 mm
Package width	277.5 mm
Package height	64.5 mm
Package weight	1070 g
