If you did receive a Network Termination Unit (NTU)
1. Use the NTU’s supplied Phone cable to connect
the LINE port directly to the phone socket on the
wall. Do not use a line filter.
2. Use the NTU’s supplied power cable to connect
the power port to a power outlet and ensure it is
turned on.
3. Use the modem’s supplied Phone cable to connect
the grey DSL port to the NTU’s MODEM port.
4. If you wish to use your VoIP phone service,
connect a handset to the Phone1 port.
5. You can use an additional Ethernet cable to
connect a computer to any of the 4 LAN ports.
Alternatively, follow the steps later in this guide to
connect devices via WiFi.
6. Finally, use the modem’s supplied power cable
to connect the power port to a power outlet and
ensure it is turned on.
7. Turn to next page to continue your setup.

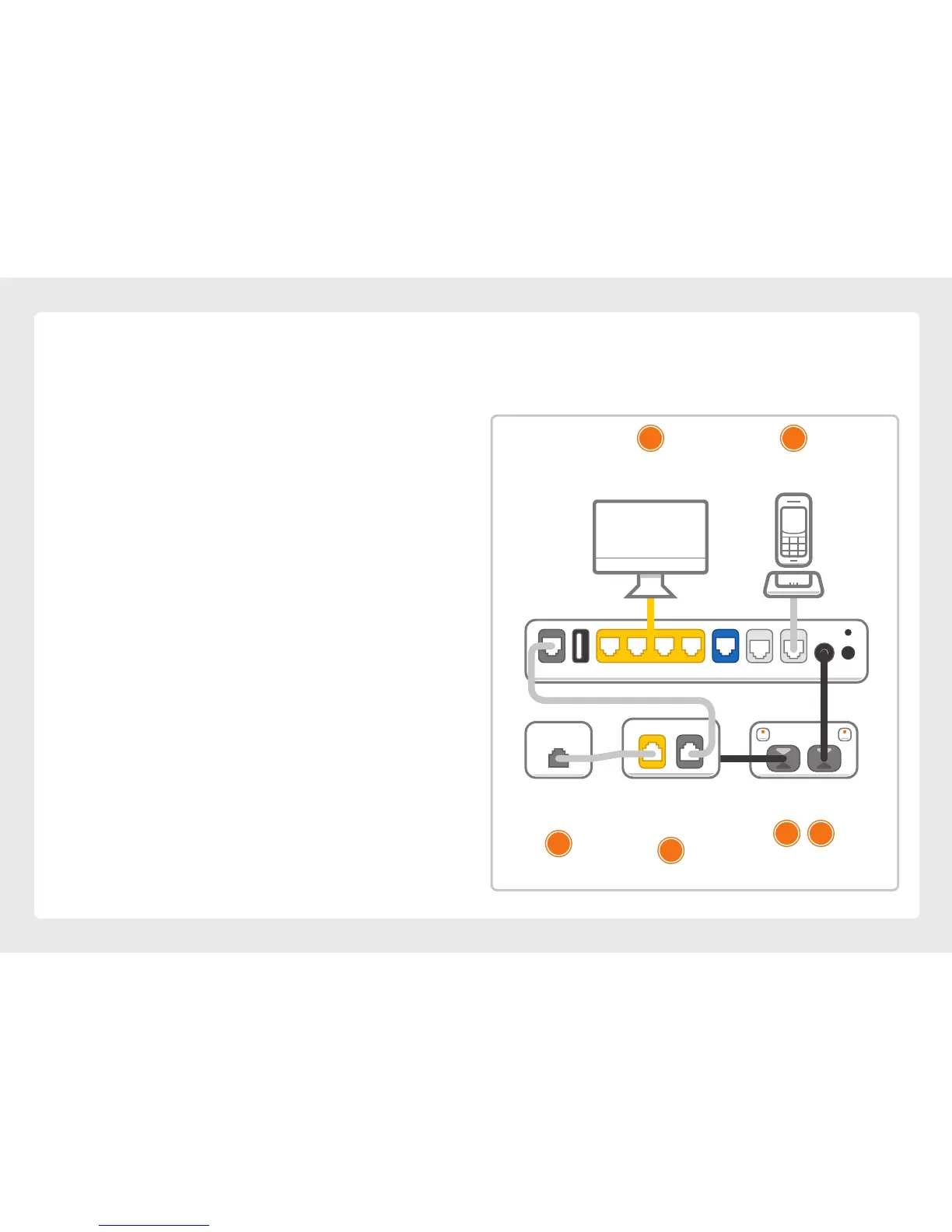

Ethernet Cable
Plug into your computer’s
Ethernet Port (Optional)
Phone Cable
Plug into handset (Optional)
Power Cables
Plug into power outlets
Network
Termination Unit
(NTU)
Phone Cable
Plug into the phone
socket on the wall
USBDSL LAN4 LAN3 LAN2 LAN1 WAN Phone2 Phone1 Power
MODEMLINE
