8.5 $QDO\]H6SHFWUXP
Spectrum Analysis can help you choose the proper channel/frequency. Through the
spectrum analysis, learn the distribution of the radio noise and intelligently select the
channel/frequency in low noise.
Click

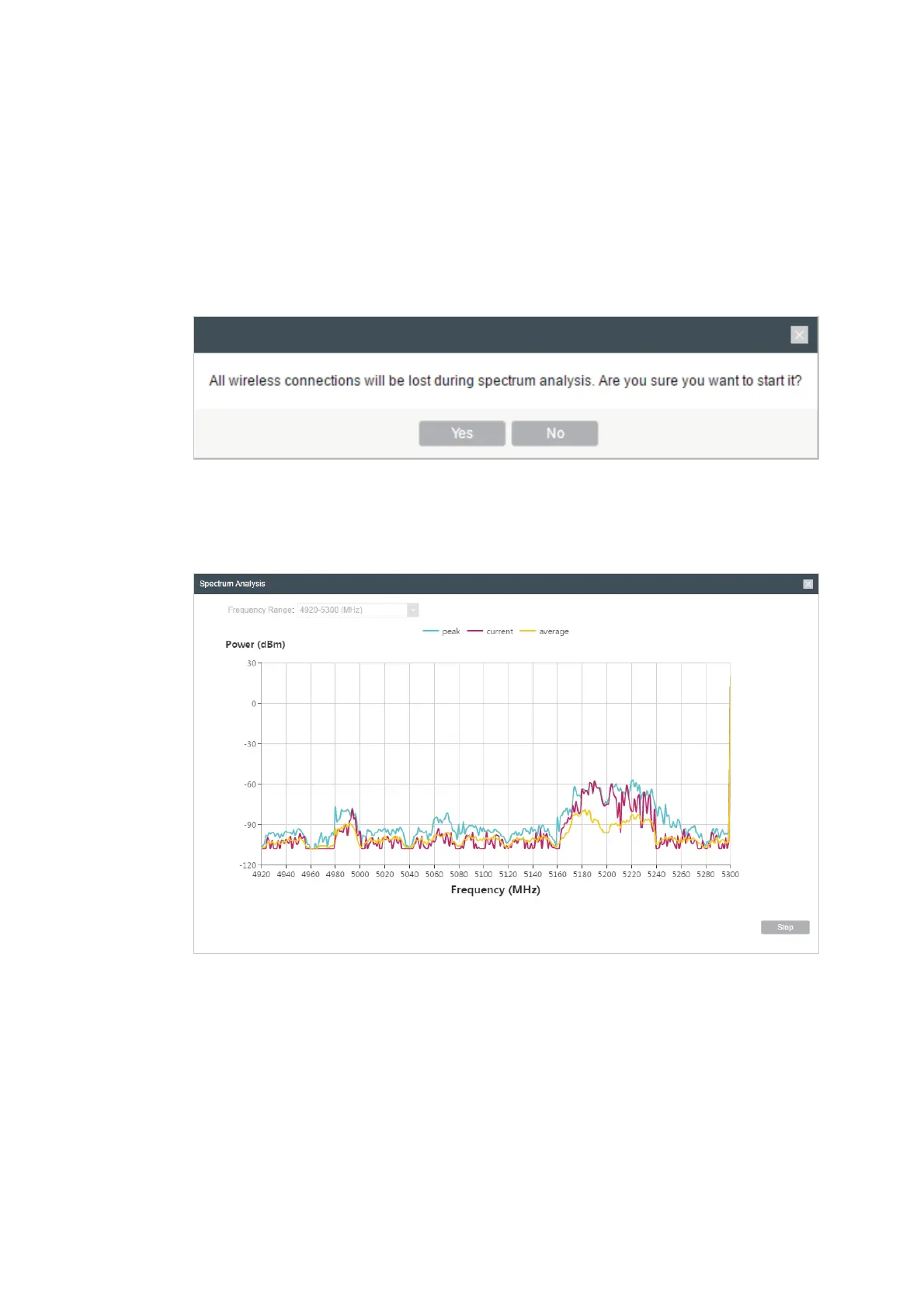

Spectrum Analysis from the drop-down list on the upper-right corner and click
Yes on the pop-up window.
Click Start . Observe the curves for a period of time, and then click Stop . The relatively
low and continuous part of the average curve indicates less radio noise. Here we take
the figure below as an example.
Note:
• Only CPE510/CPE610/WBS510 has the select box of Frequency Range at the upper-left
corner. Select the required range and then click
Start .
When choosing Channel/Frequency, try to avoid the spectrum with large radio noise.
