T+A R 1000 E - Appendix A; Wiring Diagram

64
Appendix A

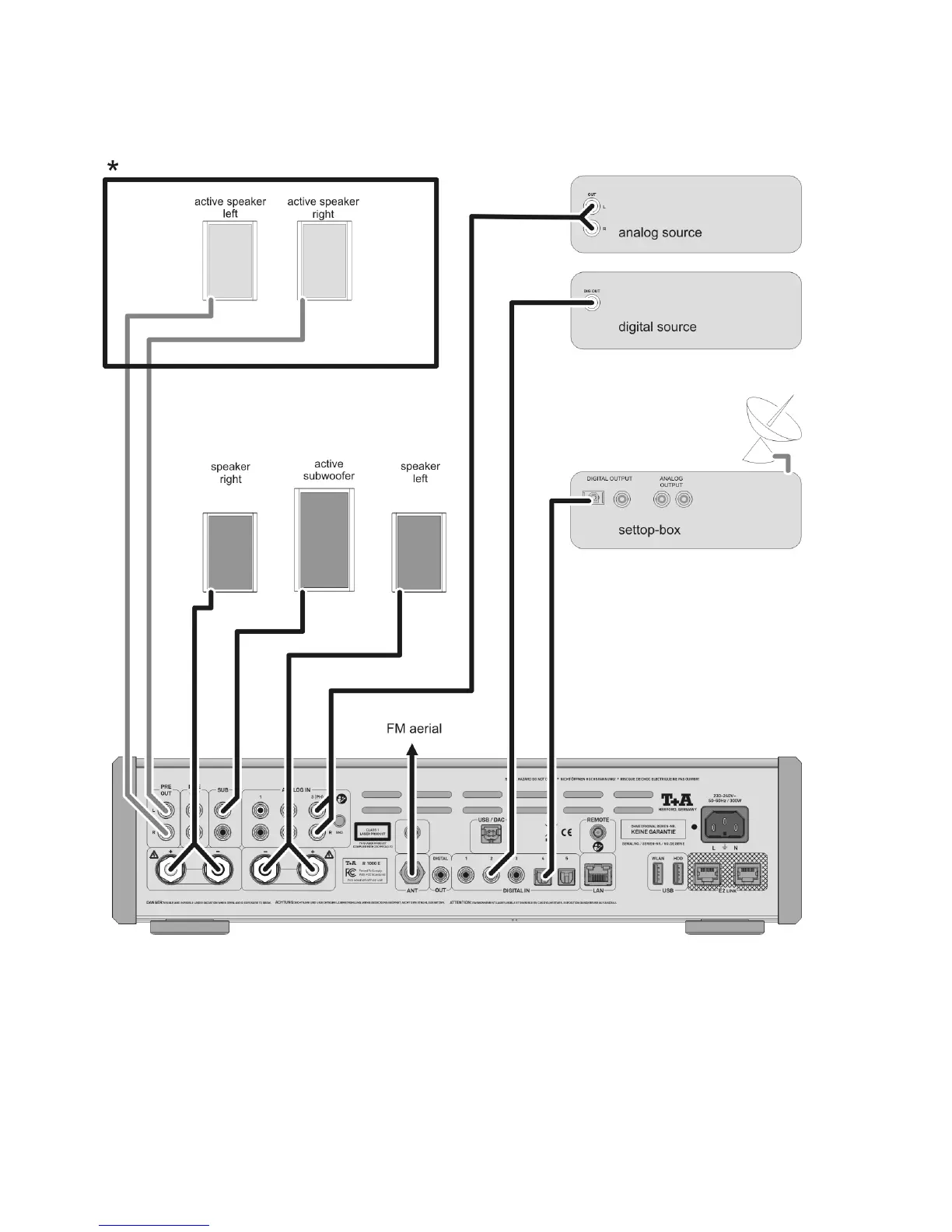

Wiring diagram
* As an alternative to passive loudspeakers it is possible to use active speakers, which are connected to the pre-
amplifier output.
External output stages can also be connected to the pre-amplifier output.
The volume control for the pre-amplifier output operates in parallel with the left and right output stages.
