T+A R 1000 E - Wiring Diagram

65

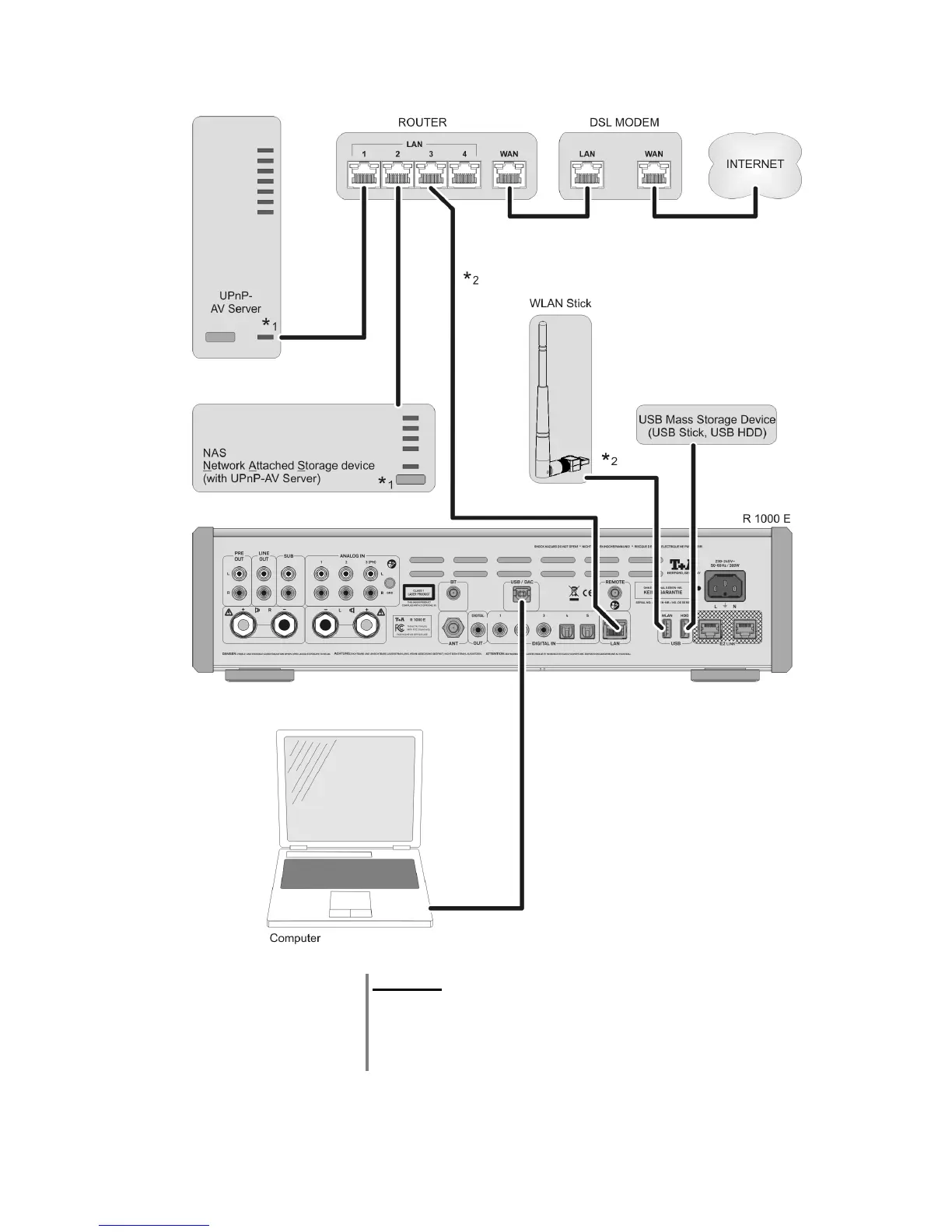

Wiring diagram

Attention!
A properly set up home network with router must be installed and in operation to
use the R 1000 E.
For the use of internet radio a DSL access to the internet is needed.
For questions regarding setting up your network and internet connection
please ask your system administrator or any network specialist.
*1 Musik Server with UPnP-AV server software installed
*2 Connection either via Cable-LAN oder Wireless-LAN. For use in a
WLAN, the USB WLAN stick included in the set must be connected as shown
above before the device is switched on.
