Blue M - - DC 146 Series Industrial Ovens, Models DC, DCW, DCI, DCC
Page 22
5.5 Water Supply Connections (for Cooling Coil - as applicable):
Your oven will require a supply of city water for the water-cooled cooling coil, which is installed for the
applications below.
 Optional for Model DC / DCW
 Standard for Models DCI and DCC
The supply should be rated 3 - 4 GPM, 30 to 40 PSIG, at 75° F maximum. Water-In and Water-Out
connections are located at the rear of the unit.
Water Inlet Connection: The water inlet connection is made to the Cooling Coil solenoid valve and is a Type
3/8” Flare Fitting. Make sure your connection is secure.
Water Outlet Connection: The water outlet / drain connection is made to a 1/2” O.D. stainless steel pipe.
Your connection should be made with a clamped hose that runs to an open drain, which assumes there is no
significant resistance to the flow of water, i.e., 0 PSIG "back pressure".
CAUTION! Equipment damage hazard: Equipment damage will occur if back pressure is
allowed to build up on water draining from coil.
WARNING! Severe burn hazard: The use of the cooling coil to rapidly cool a high temperature
oven (+100° C) will initially result in the emission of extremely hot steam from the water outlet /
drain line. This steam can cause severe burns. Stay clear from drain when steam is emitted.

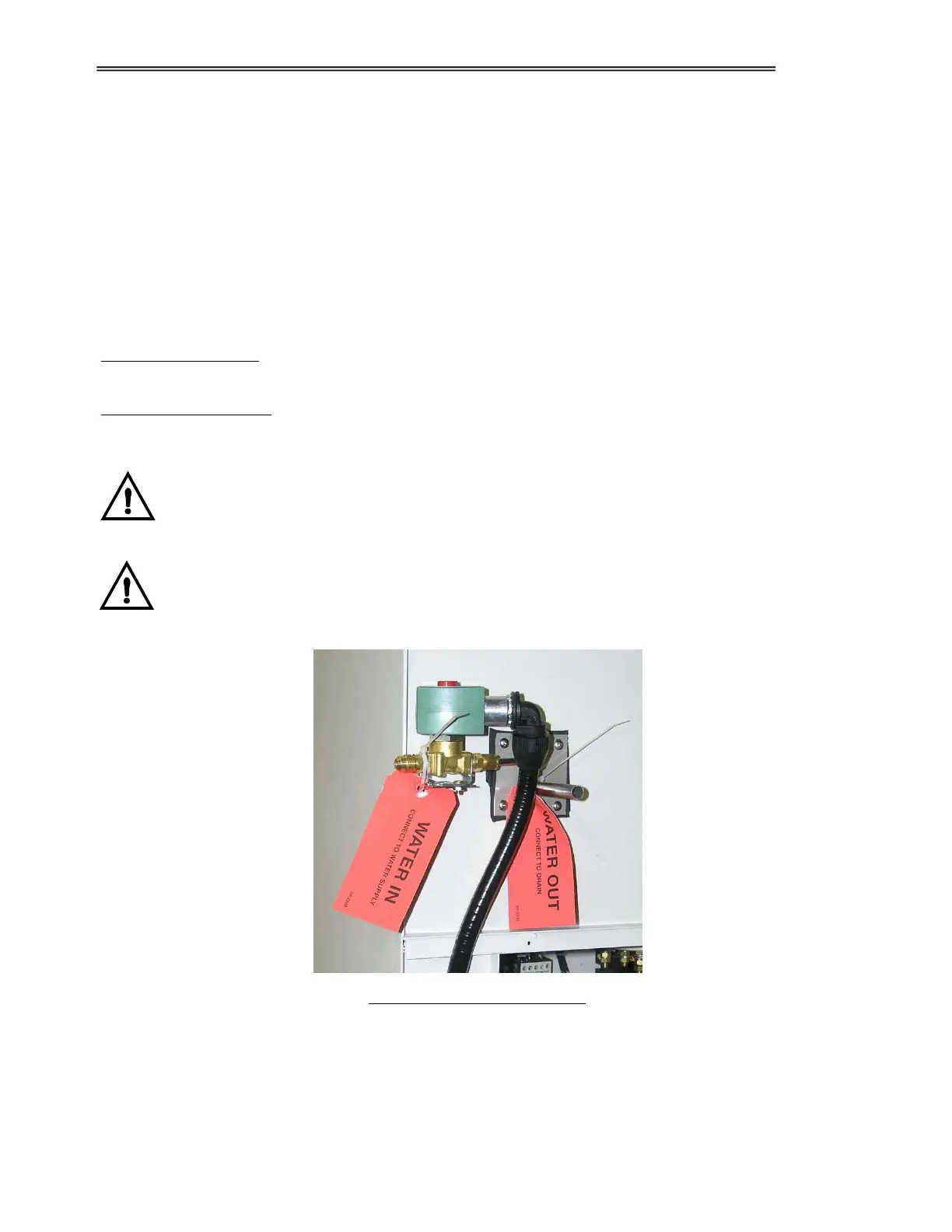

WATER SUPPLY CONNECTIONS
