Blue M - - DC 146 Series Industrial Ovens, Models DC, DCW, DCI, DCC
Page 58
IMPORTANT NOTE: The Model Digi 20E is being replaced by the Grasslin Model FM1D.
The Grasslin Model Digi 20E 24 Hour / 7 Day Digital Timer may be provided to start and stop 24 hour / 7 day
oven operation. This timer enables the oven to shut off at night and turn on and ramp back to temperature
before the work day starts. The timer can be programmed to have different hours of operation for any day of
the week. It can also be programmed with up to 10 on/off cycles, which can be assigned to any combination
of days. Circular programming keys are provided with an LCD display that shows various data and
information.
Process Cycle Operation:
Normally open output contacts of the timer are wired in series with the Heater Contactor. When the
programmed start time is reached, timer contacts will close to energize the contactor which will start the
circulation blower and enable the heater. Power to the heater is controlled by the main temperature
controller. When the programmed stop time is reached, timer contacts will open to remove power from the
circulation blower and heater.
The following features are included with the Digi 20E:
24 Hour, or 7 Day Programming
20 Programs with up to 10 On and 10 Off Events per day
Manual override for either temporary or continuous ON or
OFF state with status display
16 Amp, SPDT output contacts
Rechargeable Nicad battery backup with 1 week or more
carryover
A program consists of the following:
1. An ON or OFF command.
2. Time of day (Hour and Minute)
3. Single day or multiple days
Controller Configuration:
The pre-programmed controller configuration for your chamber is documented in the Test Report, which is
located in the Supplemental Instructions Section. Refer to the controller’s user manual for more information.

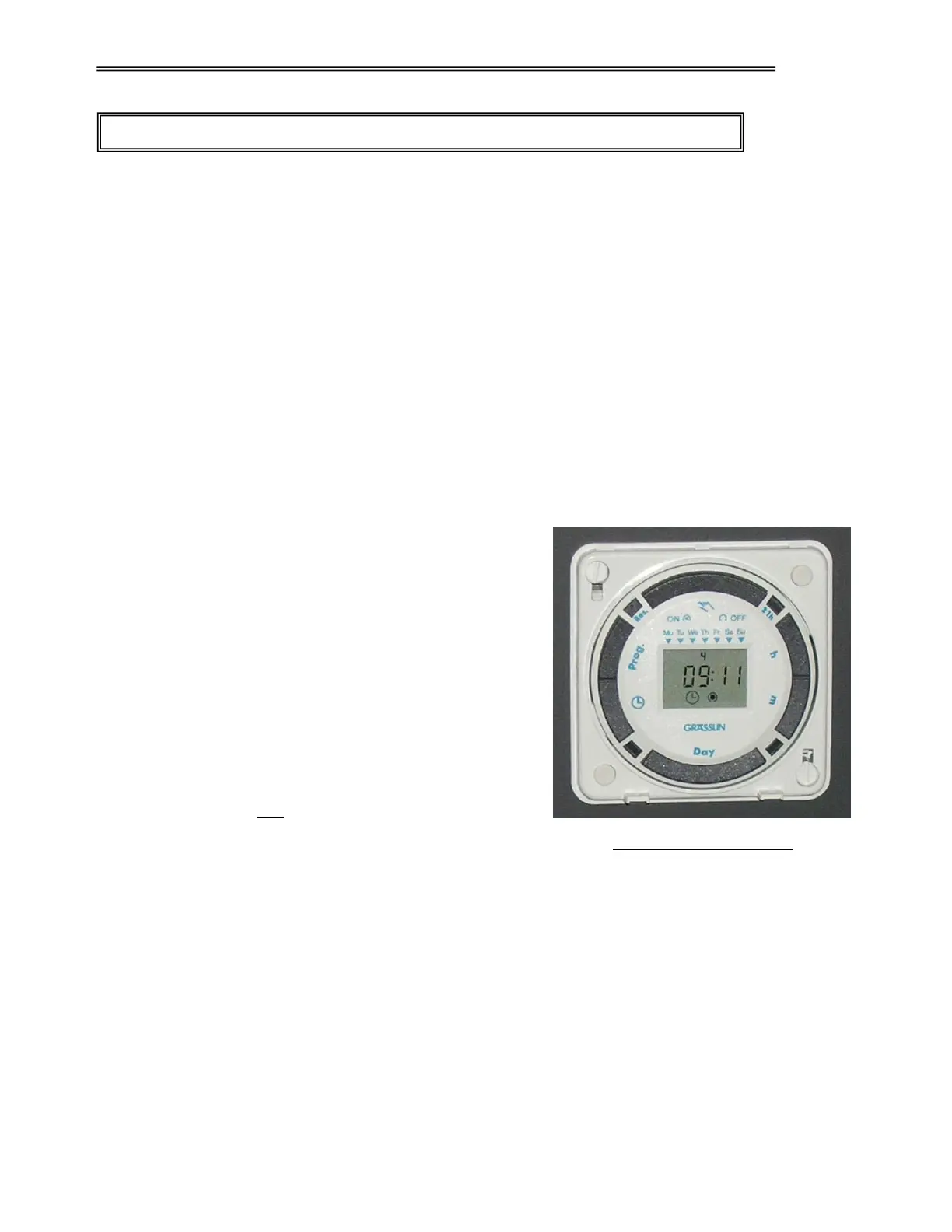

GRASSLIN DIGI 20E TIMER
14.0 24 HR / 7 DAY DIGITAL TIMER
GRASSLIN DIGI 20E
O
tional
To Next Page
