Blue M - - DC 146 Series Industrial Ovens, Models DC, DCW, DCI, DCC
Page 36
6.2 Basic Workspace Airflow Description
Process air is drawn down into the conditioning plenum from along the left side duct wall by the circulation
blower wheel. For Models DC / DCW, this air will mix with fresh ambient intake air when the intake damper is
opened. The air is forced through the heaters and the water-cooled cooling coil (when employed), and is
discharged up into the right side duct wall.
Conditioned air enters the workspace through either pierced or semi-pierced openings over the entire height
and depth of the workspace. The air flows in a horizontal pattern from right to left to condition the product,
and exits through pierced openings in the left side duct wall. Process air returns to the conditioning plenum
and the cycle continues. For Models DC / DCW, a portion of process air can be exhausted out through the
exhaust port when the exhaust damper is opened.

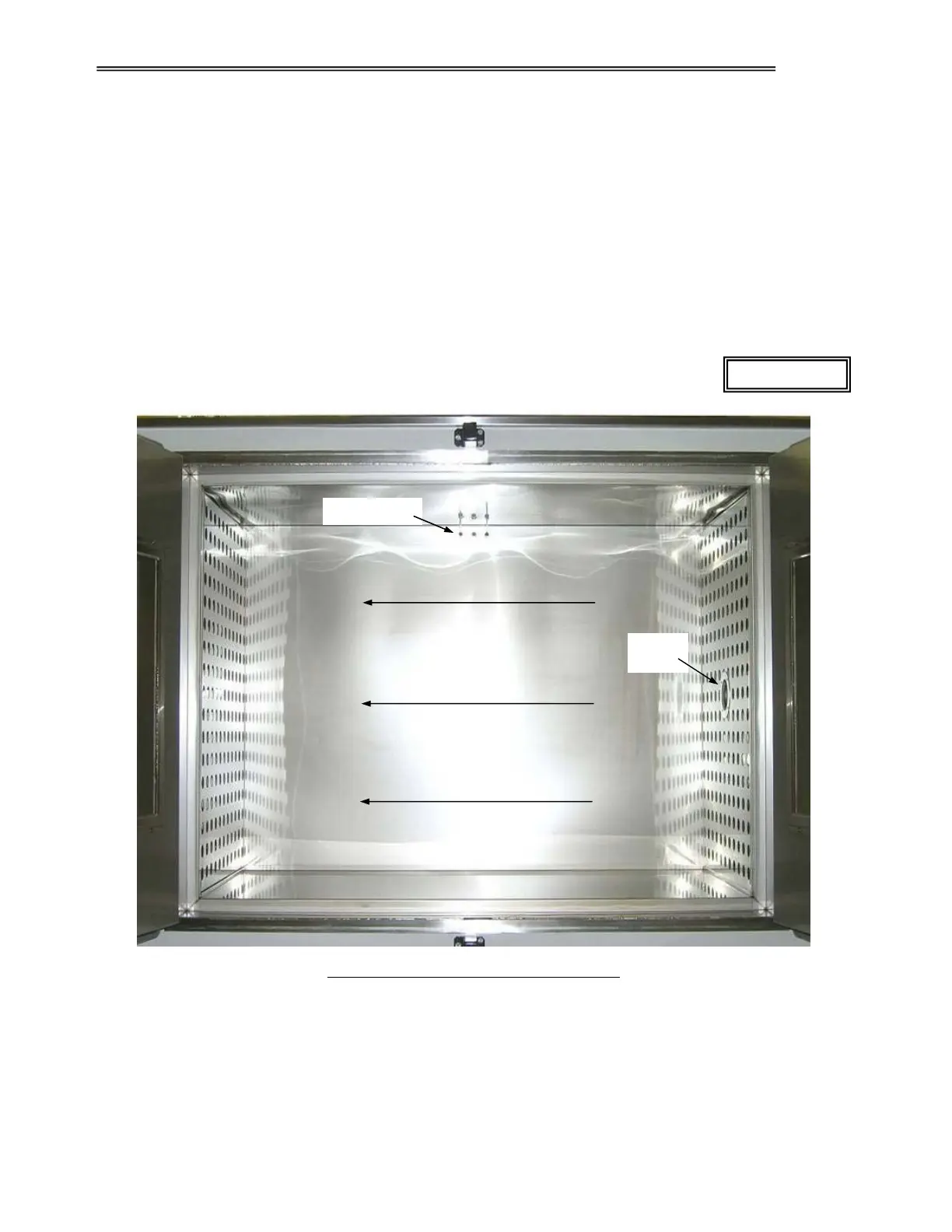

WORKSPACE AIRFLOW – MODEL DCW1406
Thermocouples
Access
Port
Model DCW1406
