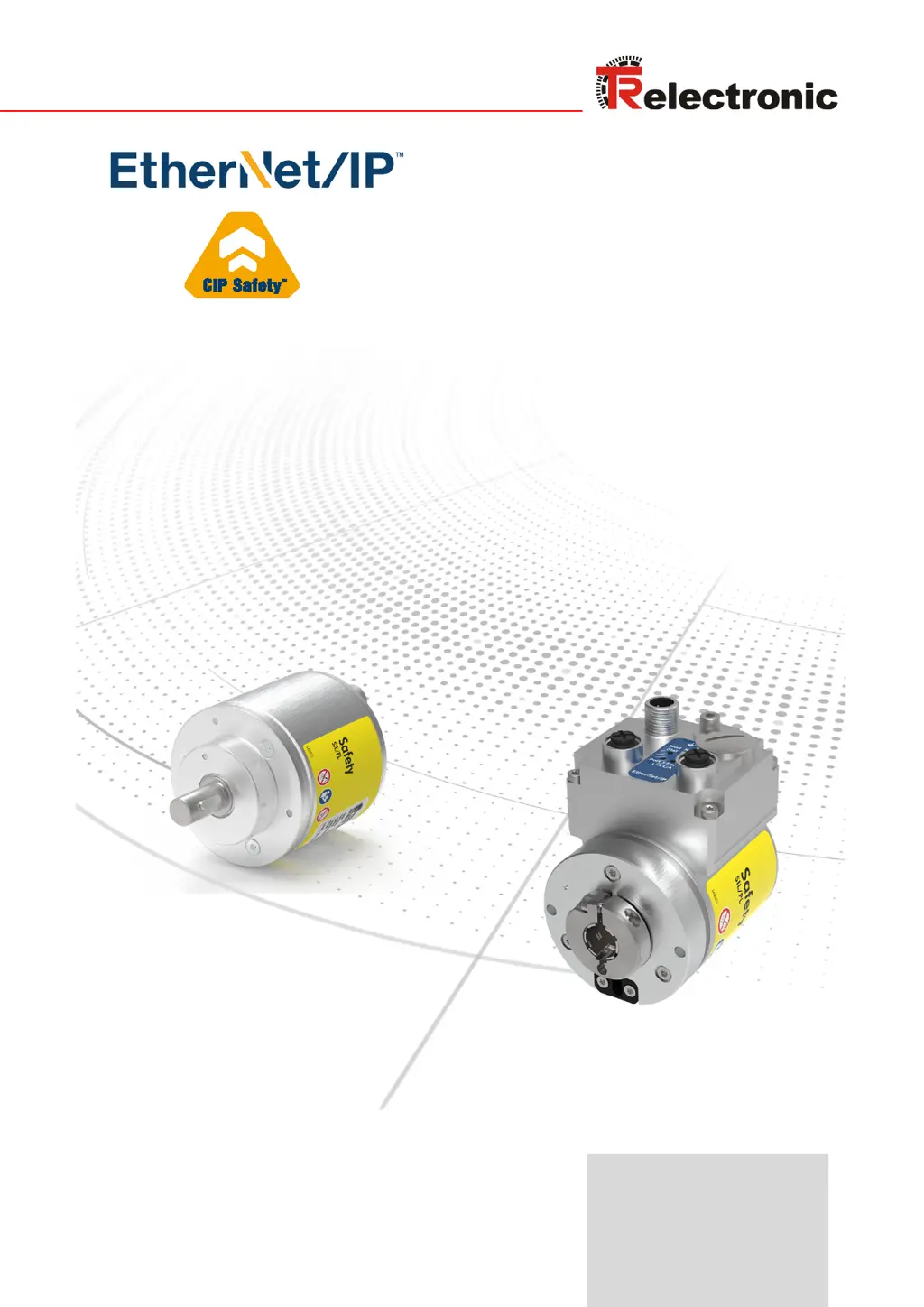

TR-Electronic CDS582 - User Manual

Other manuals for TR-Electronic CDS582

Original Manual154 pages

Questions and Answers

T
terrygarciaAug 7, 2025
What to do if the red Net-Status LED is ON on the TR-Electronic CDS582 Media Converter?
- A
  Amanda PatelAug 7, 2025
  If the red Net-Status LED is ON, it indicates there is no connection to the IO controller, no data exchange, or that invalid configuration parameters are being used. The project setup configuration may also differ from the measuring system configuration. To resolve this, check the bus connection to ensure the IO controller is available and online. Verify the device name, IP address, and subnet mask. Also, ensure the setup configuration parameters match the measuring system configuration.
S
Scott MejiaAug 17, 2025
Why is the green LED OFF on my TR-Electronic CDS582 Media Converter?
- C
  Cindy CollinsAug 17, 2025
  If the green LED is OFF, it could be due to several reasons. The voltage supply might be absent or too low, the connector might be incorrectly wired or screwed down, or there could be a hardware error with a defective measuring system. Check the power supply and wiring to ensure the voltage supply is within the permissible range. Also, check the wiring and connector position. If these steps don't resolve the issue, the measuring system may need to be replaced.
M
Mr. Zachary AlexanderAug 23, 2025
How to fix a green Net-Status LED that is OFF on a TR-Electronic CDS582?
- C
  Christopher BarberAug 23, 2025
  If the green Net-Status LED is OFF, it may indicate that the voltage supply is absent or too low, the connector is incorrectly wired or screwed down, or there is a hardware error causing the measuring system to be defective. Check the power supply and wiring to ensure the voltage supply is within the permissible range. Also, check the wiring and connector position. If the issue persists, consider replacing the measuring system.
M
Michael GreenAug 27, 2025
What does it mean when the red LED is repeating 3x 5 Hz on the TR-Electronic CDS582?
- J
  jonesleahAug 27, 2025
  If the red LED is repeating a 3x 5 Hz pattern, it indicates a parameterization error, such as an incorrect F-parameterization or an incorrectly configured F_iPar_CRC value. To resolve this, check the measuring system configuration to ensure at least one module is configured.
T
Thomas WalkerSep 1, 2025
What does it mean when the green LED is repeating 3x 5 Hz on the TR-Electronic CDS582?
- V
  Vincent RoweSep 1, 2025
  If the green LED is repeating a 3x 5 Hz pattern, it means that either the measuring system could not synchronize with the F Host during start-up and is requesting a re-integration, or an error has been detected in the safety-related communication or a parameterization error has been eliminated. In either case, re-integration of the designated variable is required via the safety program.
E
Elizabeth ThomasNov 11, 2025
Why is the red LED ON related to the Window Increments parameter on my TR-Electronic CDS582 Media Converter?
- A
  Adam HolderNov 11, 2025
  If the red LED is ON and related to the Window Increments parameter, it could be due to several reasons. The value set for the Window Increments parameter might have been exceeded, or the ambient temperature might be outside the permissible range. It could also mean the internally calculated PROFIsafe telegram is faulty, or, for double magnetic scanning systems, the electrically permissible speed has been exceeded. To solve this, check that the set value for the Window Increments parameter is appropriate for the automation task and ensure the permissible ambient temperature range is maintained. Try turning the power supply OFF and then ON. If the error persists, the measuring system must be replaced. For speed issues, bring the speed into the permissible range and acknowledge the fault by ...
