Trace Engineering PP-SW2512/D User Manual

©1999 Trace Engineering
15
AC WiringSW Single Inverter Models
AC Input/Output Wiring To AC Bypass Box
 Connect the Ground wire to the Ground block in the AC Disconnect/Bypass Box. Connect the other end
to the sub-panels Ground Bar.
 Connect the Hot (input) wire from the utility service panel to the AC Disconnect breaker as shown in
Figure 17.
 Connect the Hot wire (output) to the AC Disconnect breaker as shown in Figure 17. Connect the other
end of this wire to the input breaker in the sub-panel.
 Connect the Neutral wire to the Neutral block in the AC Disconnect/Bypass Box. Connect the other end to
the sub-panels Neutral Bar.
 Torque service crimps to 45 in-lb (3.75 ft-lb), (5 N-m).
NOTE: The Ground and Neutral are bonded only at the main utility service panel.

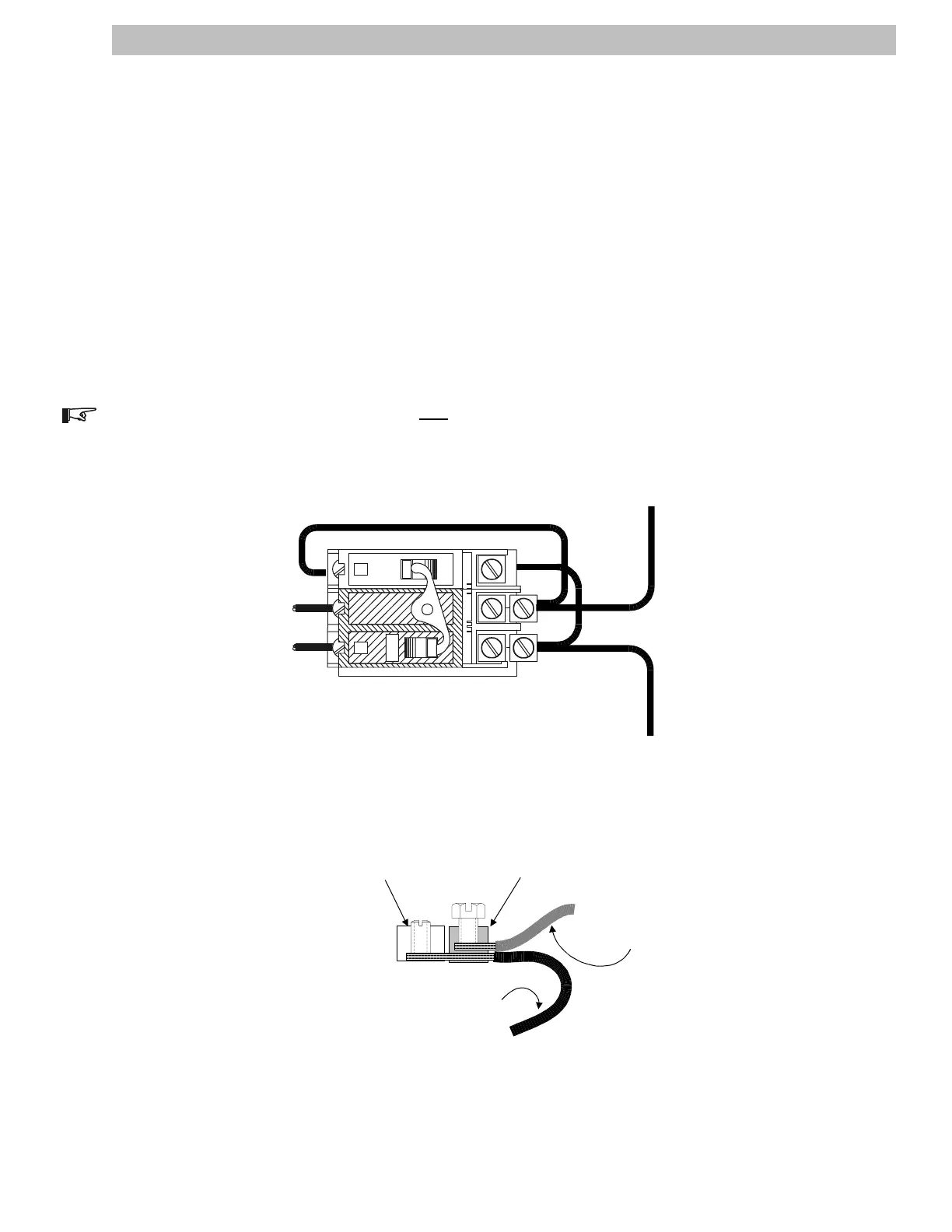

Figure 17
AC Input/Output Wiring (Single Inverter Models)
2.0 INSTALLATION
IN
INV
OUT
INV
0N
OFF
60
OFF
D
60
D
From Utility or
Generator
HOT
To Sub-panel
(Loads)
HOT
NOTE:
DO NOT REMOVE
FACTORY WIRING!
Breaker Lug
Service Crimp
Existing Factory Wiring
Added Input or
Output Wire
2906-00-026
Figure 17A
Breaker Terminal Lug Detail (side view)
