18
FEATURES AND CONTROLS
FuelGauge with Low Oil Pressure Indicator
The fuel gauge (8) indicates the amount of gasoline in the fuel tank. ‘4/4’ indicates a full tank and ‘0’ indicates an
empty fuel tank. The fuel gauge has a low oil pressure indicator. A low engine oil pressure condition is shown with a
red indicator light.
The low oil pressure indicator light is located beside the fuel gauge on the dash, and not part of the fuel gauge.
Toprevent enginedamage, do not operate the engine whenthe oil pressure indicator is
illuminated. Do not overfill the engine. Too much oil maycause smoking or allow oil to
enterthe filter enclosure.
Direction Selector
Toreduce the possibility of component damage,
the vehiclemust be completely stopped before
changing positions of the direction selector.

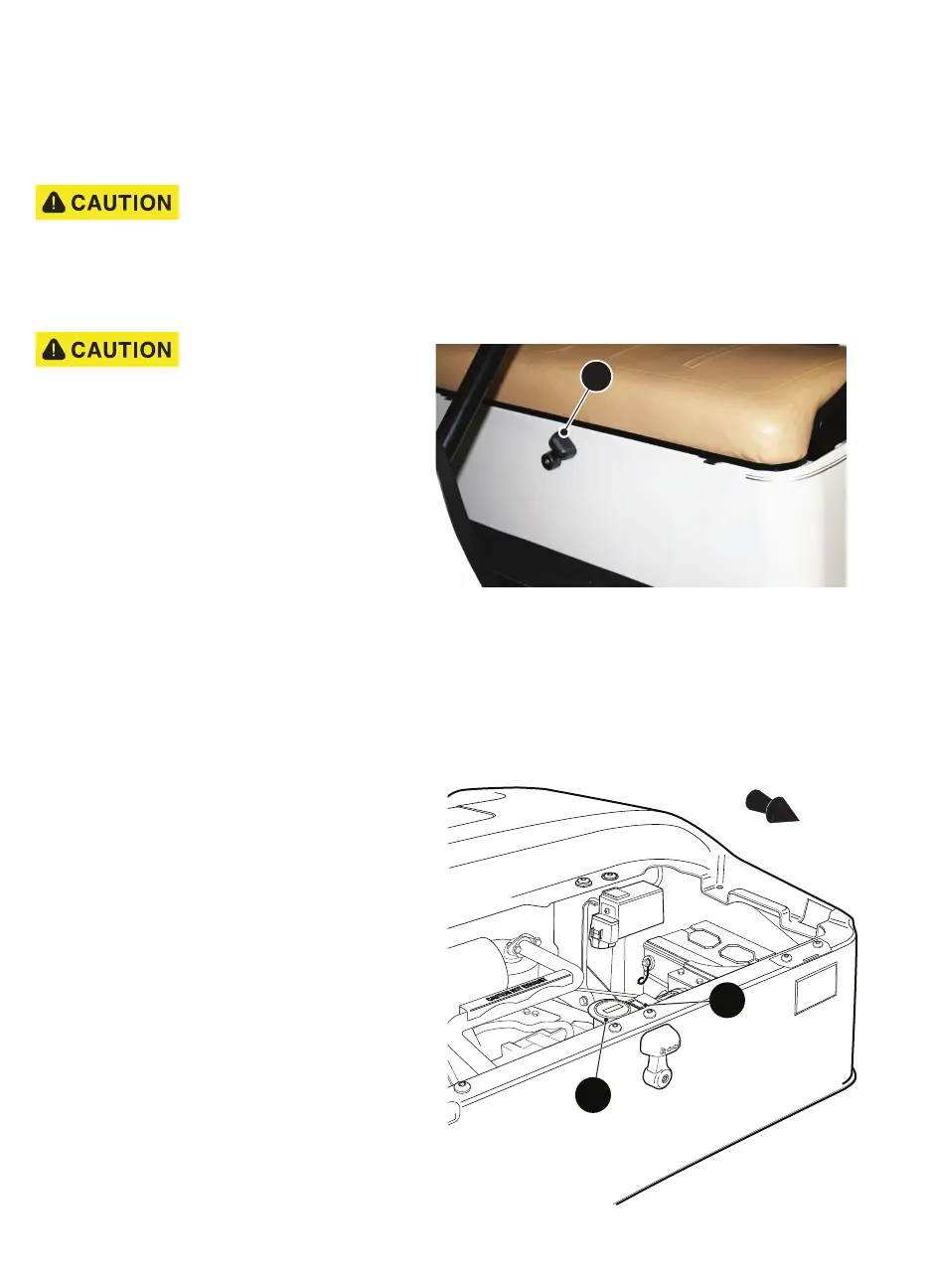

Located on the seat wrap panel, the direction selector
lever (9) permits the selection of either ‘F’ (forward),
or ‘R’ (reverse). The vehicle should be left in ‘F’ when
unattended.
Choke
This vehicle is equipped with Electronic Fuel Injection and does not require a choke.
Fuse Block
The fuse block is used to provide electrical protection to some of the electrical components and vehicle accessories.
The fuse block is located under the seat on the front frame for the seat wrap.
Malfunction Indicator Light (MIL)
The MIL (11) is located under the seat and mounted to the
front of the seat wrap. Lift or remove the seat bottom to
view the MIL. The MIL can be used to diagnose a problem
and whether a technician will be required to service the
vehicle. See MALFUNCTION INDICATOR LIGHT (MIL) on
page 43.
HourMeter (if equipped)
The hour meter (12) is located under the seat and
mounted to the front of the seat wrap. The hour meter
shows the total run time for the life of the vehicle.
9
12
Front of Vehicle
11
