BM-20 PLUS Operator’s Manual 13

4. ACCESSORIES

4.1. 0° guide set for facing plates

Allows facing plates.

To mount the set, use the 6 mm hex wrench to unscrew two side screws (Fig. 10)

and remove the standard guide set. Then, mount the 0° guide set in such a way to

obtain the indication of 45° on the right pitch, and secure with the same screws.

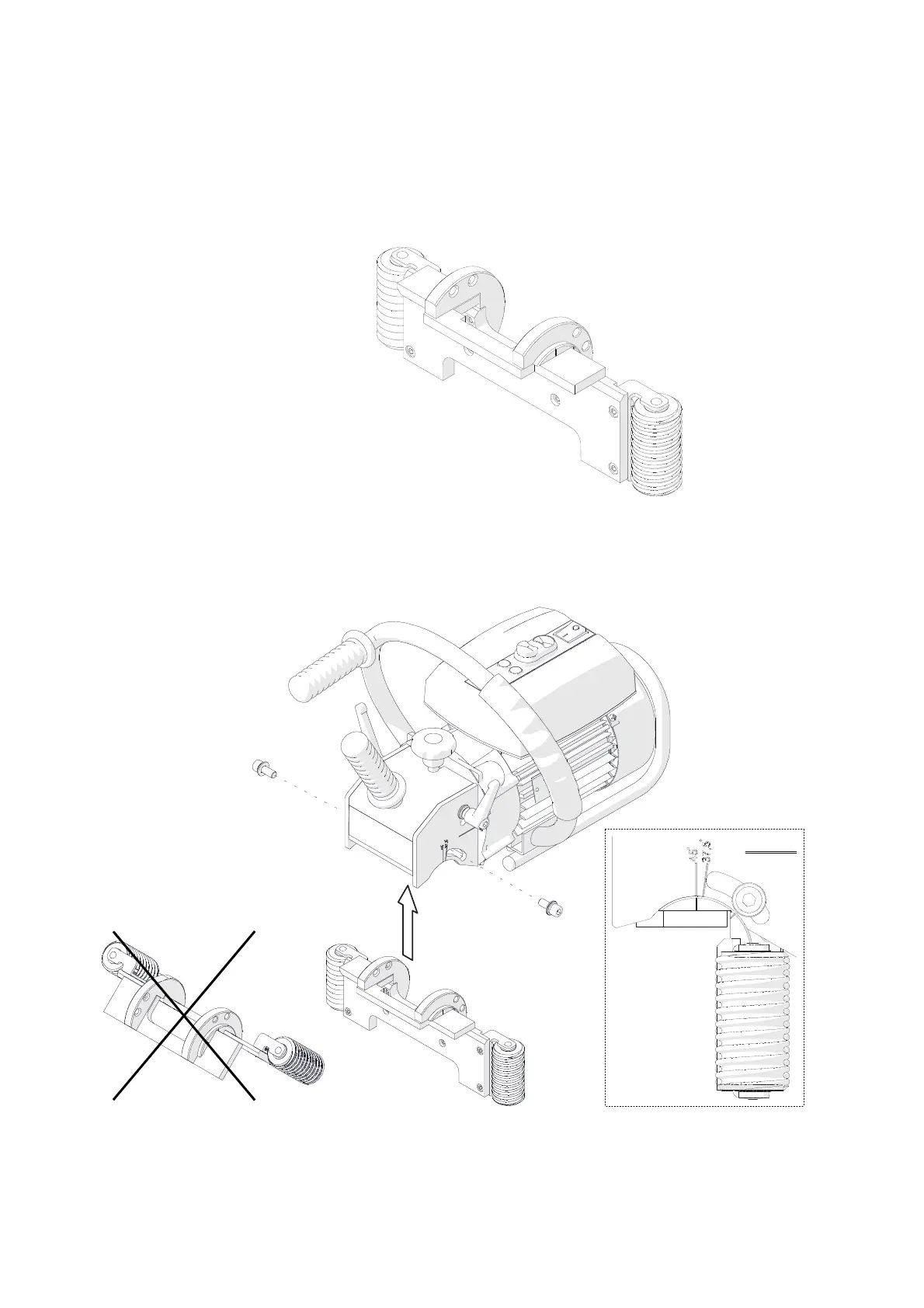

Fig. 10. Dismounting the standard guide set and mounting the 0° guide set

Part number:

ZSP-0075-32-00-00-1
