BM-20 PLUS Operator’s Manual14
4.2. Guides for bevelling pipes
Allow bevelling pipes with outer diameters of 150–300 mm (6–12’’) or 300–600 mm
(12–24’’).
To adapt the machine for work on pipes, first dismount the standard guide set as
shown in Fig. 10. Then, use the 4 mm hex wrench to unscrew four screws from the
dismounted guide set and assemble the guide set for pipes as indicated (Fig. 11).

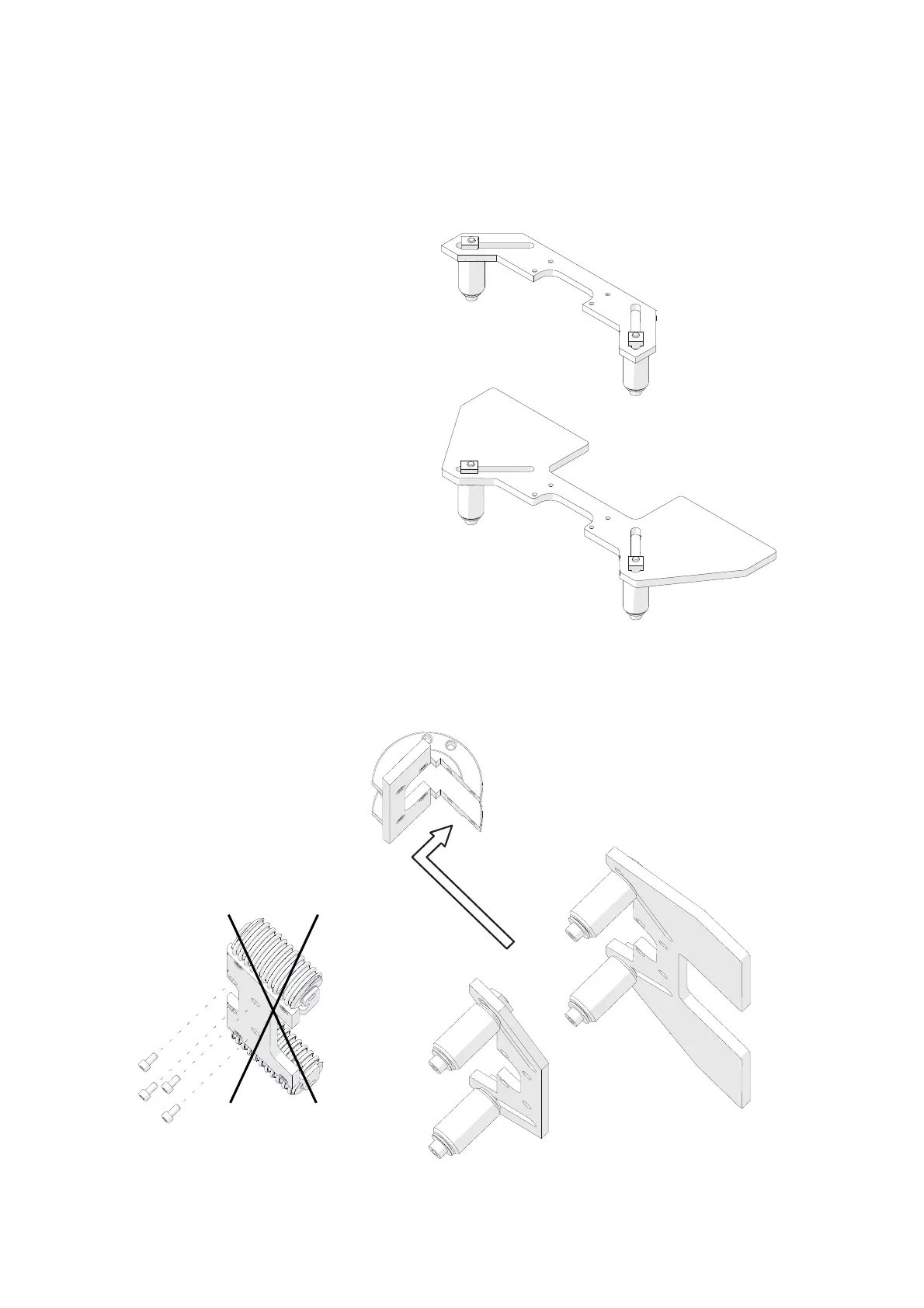

Fig. 11. Assembling the guide set for pipes
Part number:
ZSP-0075-31-00-00-0
(for pipes with diameters of 150–300 mm)
Pat number:
ZSP-0075-31-00-00-1
(for pipes with diameters of 300–600 mm)
