BM-20 PLUS Operator’s Manual8
3. STARTUP AND OPERATION
3.1. Adjusting the bevel angle and width
Unplug the power cord from the power outlet. Begin with setting the bevel width to
zero. To do this, loosen two depth lock levers (Fig. 3) and rotate the depth knob to set
the indication ‘0’ on the bevel width pitch.

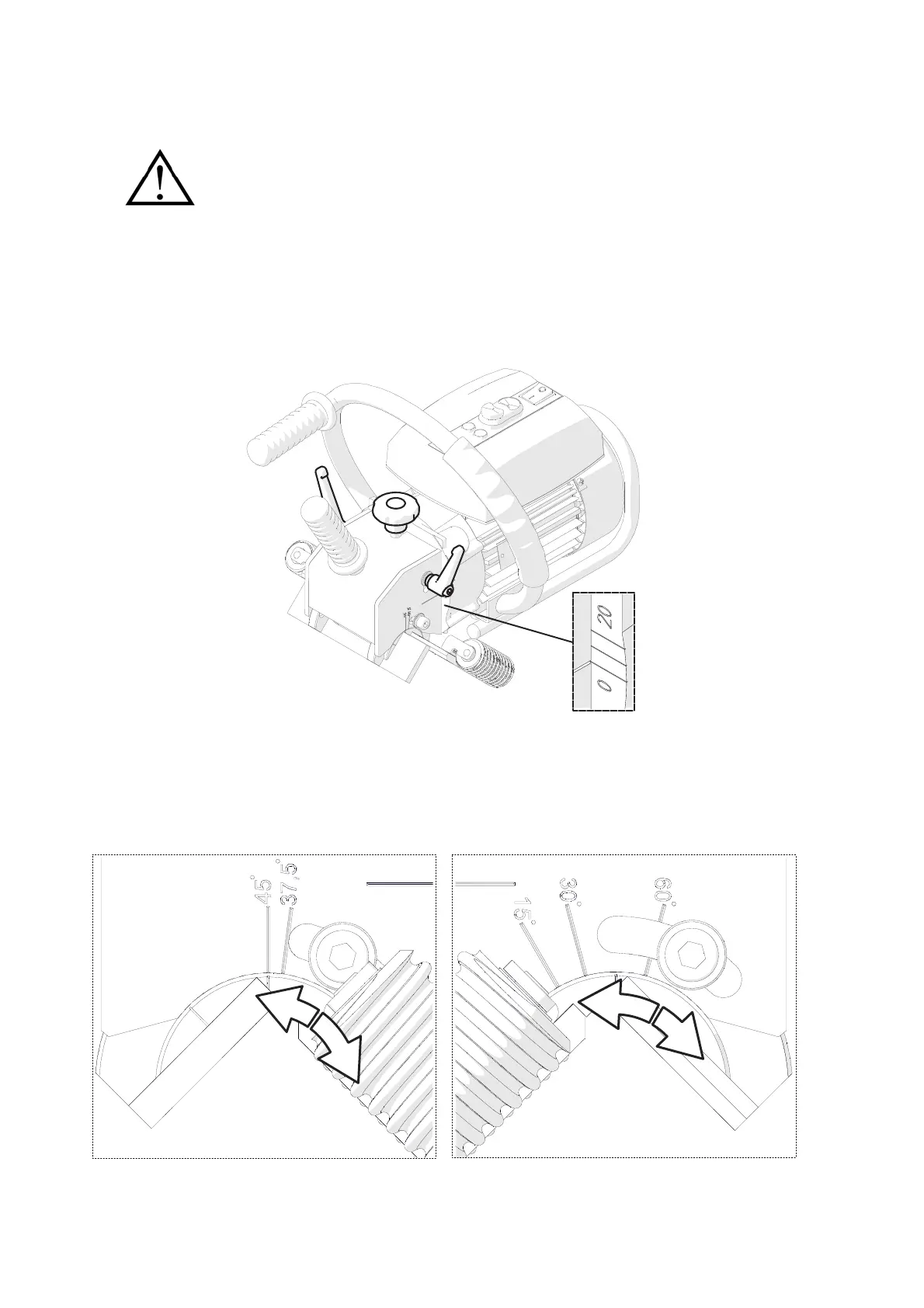

Fig. 3. Initial setting the bevel width to zero
Then, to set the required bevel angle (Fig. 4), use the 6 mm hex wrench to loosen
two side screws, rotate the guide set to set the angle on the pitch, and tighten the
screws in this new position.
Fig. 4. Setting the bevel angle (45° is set on the drawing)
All safety precautions must be closely observed
