SECTION ONE: ASSEMBLY INSTRUCTIONS

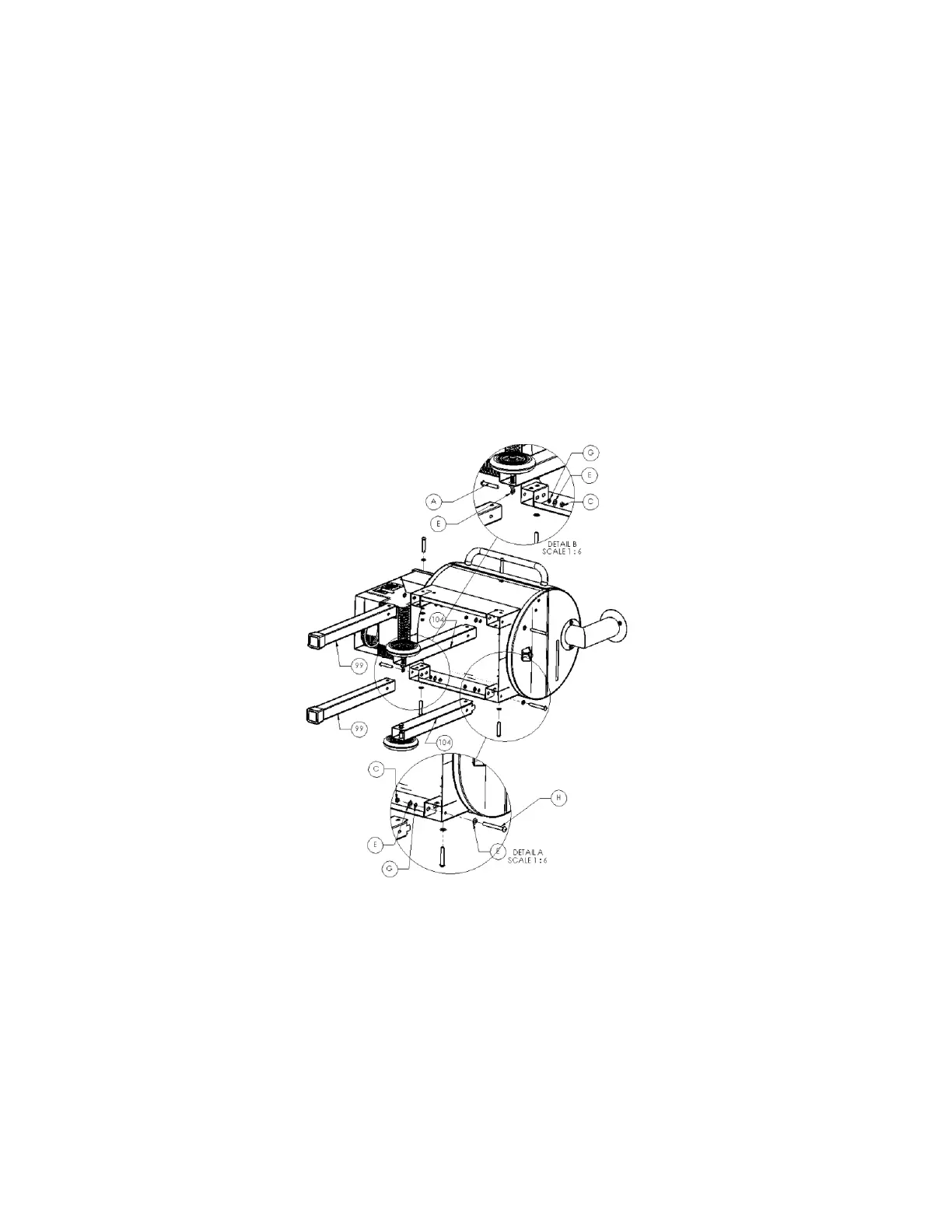

MOUNTING THE LEGS:
1) Carefully lay the Grill on its back on a non-abrasive surface.
2) Use the Black Bolts (A, H), Washers (E, G) and Nuts (C) supplied in the
hardware kit to install the Leg Assemblies (99) on the left end of the Grill and the
Wheel Leg Assemblies (104) on the right end of the Grill, as shown in the
diagram below. Install the Pegboard (154) when installing the 2 front legs using
the side bolts to secure. Leave the Nuts loose during this step.
3) Set the Grill upright to level the legs and then tighten all Nuts using the Hex key
wrench and the open end wrench.
