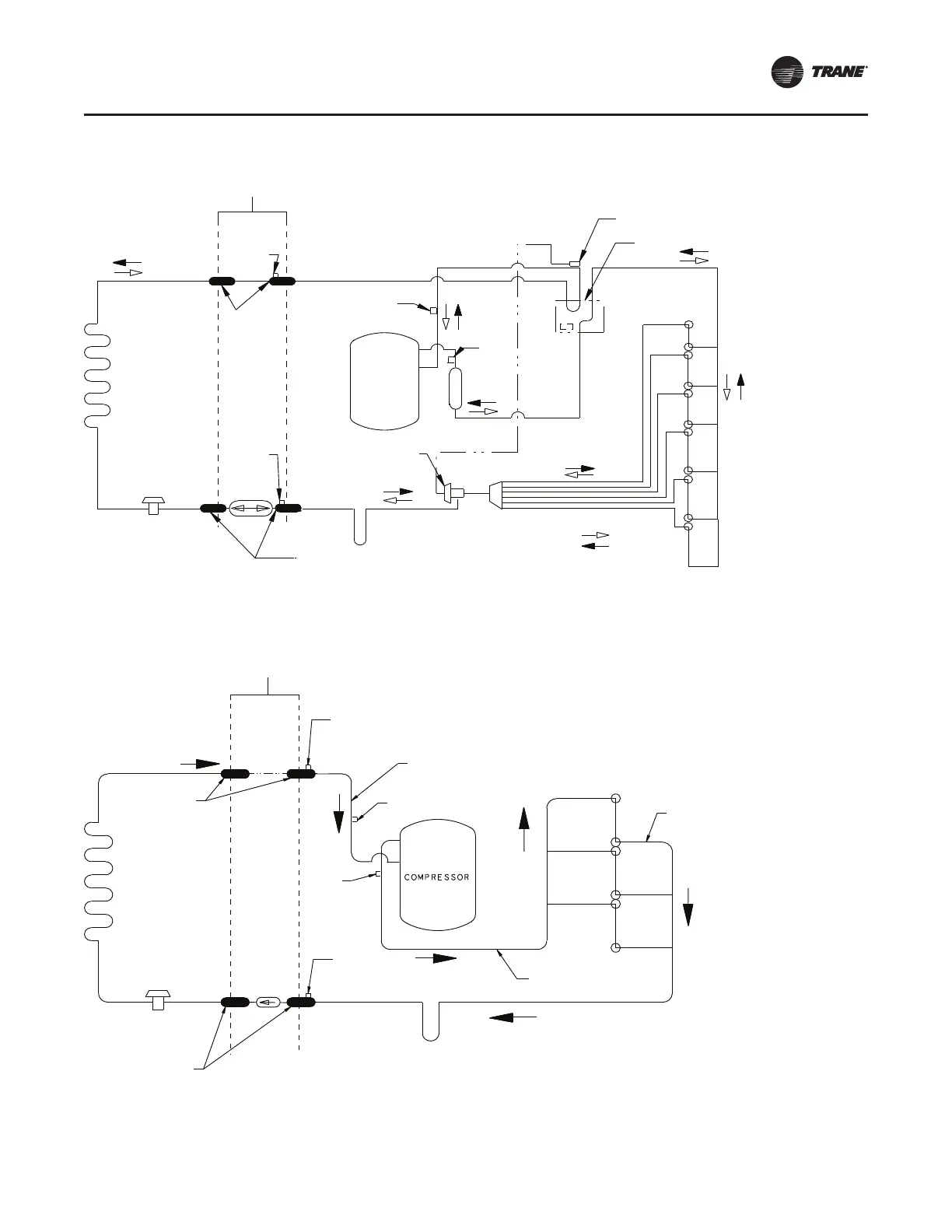

Figure 15. 5 Ton HP (060 Models)
INDOOR
SECTION
OUTDOOR
SECTION
FIELD INSTALLED
INTER-CONNECTING
TUBING
FIELD
CONNECTION
INDICATES DIRECTION OF
REFRIGERATION FLOW
COOLING
HEATING
PRINTED FROM DRAWING D158073rev01
EEV GAS
SENSOR
SWITCHOVER
VALVE
1/4 FLARE
PRESSURE
TAP
FIELD
CONNECTIONS
PRESSURE
TRANSDUCER
COMPRESSOR
HPCO
MUFFLER
SOV
COIL
IN
D
O
OR
COIL
1/4 FLARE
PRESSURE
TAP
EEV
OR
TXV
BI-FLOW
DRIER
INTERNALLY CHECKED
ELECTRONIC EXPANSION
VALVE
DRIVE
COOLING
LOOP
LIQUID
LINE
DISTRIBUTOR
OUTDOOR
COIL
Figure 16. 2 TON A/C (024 Models)
INDOOR
SECTION
OUTDOOR
SECTION
FIELD INSTALLED
INTER-CONNECTING
TUBING
REFRIGERANT FLOW
1/4 FLARE
PRESSURE
TAP
SUCTION
LINE
PRESSURE
TRANSDUCER
OUTDOOR
COIL
FIELD
CONNECTION
INDOOR
COIL
HPCO
DRIER
1/4 FLARE
PRESSURE
TAP
EXPANSION
VALVE
FIELD
CONNECTION
LIQUID LINE
DRIVE
COOLING
LOOP
REFRIGERANT FLOW
DISCHARGE
LINE
PRINTED FROM DRAWING D158077
