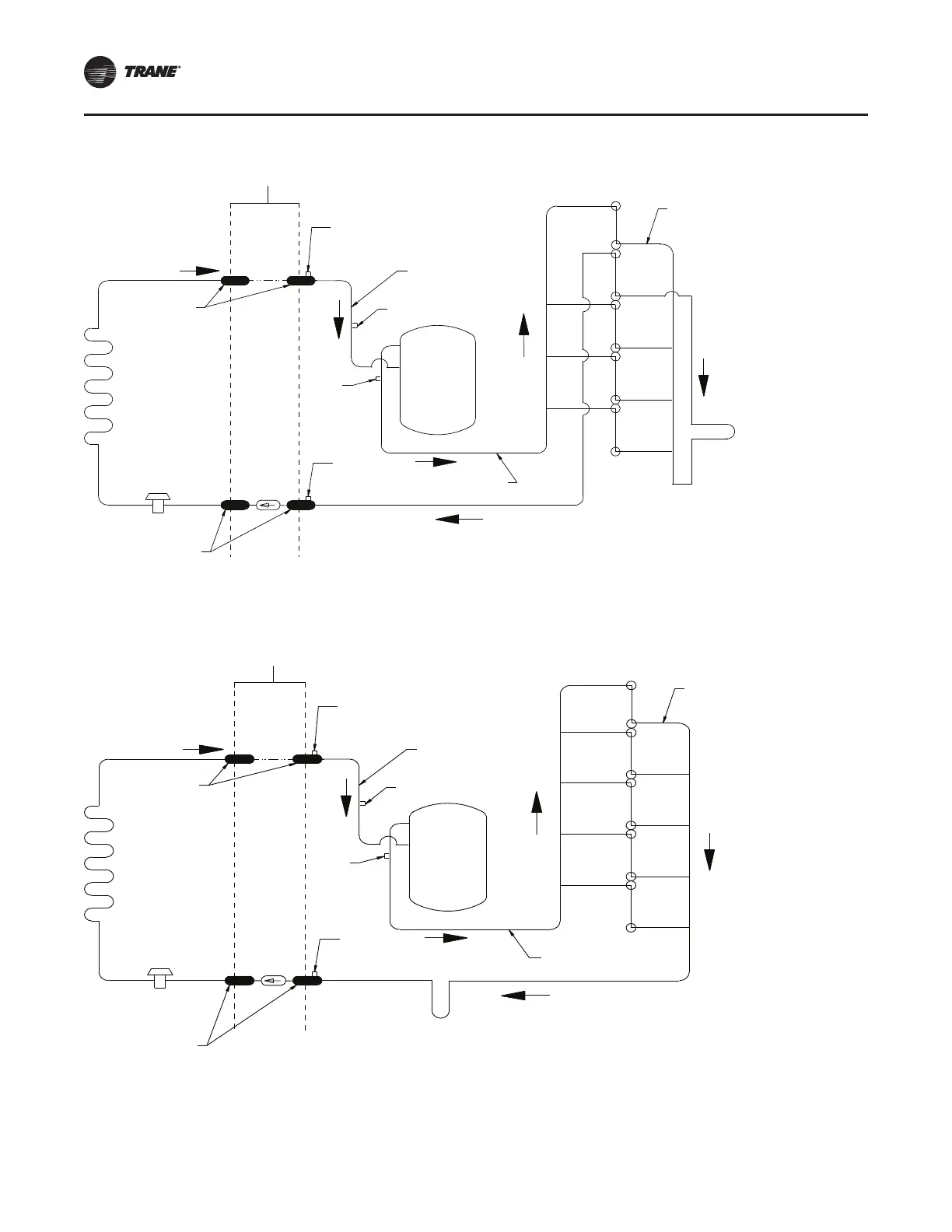

Figure 17. 3 Ton A/C (036 and 037 Models)
INDOOR
SECTION
OUTDOOR
SECTION
FIELD INSTALLED
I
NTER-CONNECTING
TUBING
REFRIGERANT FLOW
1/4 FLARE
PRESSURE
TAP
SUCTION
LINE
PRESSURE
TRANSDUCER
OUTDOOR
COIL
FIELD
CONNECTION
INDOOR
COIL
HPCO
DRIER
1/4 FLARE
PRESSURE
TAP
EXPANSION
VALVE
FIELD
CONNECTION
LIQUID LINE
DRIVE
COOLING
LOOP
REFRIGERANT FLOW
DISCHARGE
LINE
PRINTED FROM DRAWING D158074
COMPRESSOR
Figure 18. 4 Ton A/C (048 Models)
INDOOR
SECTION
OUTDOOR
SECTION
FIELD INSTALLED
INTER-CONNECTING
TUBING
REFRIGERANT FLOW
1/4 FLARE
PRESSURE
TAP
SUCTION
LINE
PRESSURE
TRANSDUCER
OUTDOOR
COIL
FIELD
CONNECTION
INDOOR
COIL
HPCO
DRIER
1/4 FLARE
PRESSURE
TAP
EXPANSION
VALVE
FIELD
CONNECTION
LIQUID LINE
DRIVE
COOLING
LOOP
REFRIGERANT FLOW
DISCHARGE
LINE
PRINTED FROM DRAWING D158075
COMPRESSOR
