appropriate outputs. A user-selected timeout value will
determine how long the controller will remain in any given
state once initiated. For detailed information on how each
Service Test State is interpreted based on the equipment’s
configuration, see ACC-APG002*-EN, Symbio™ 700 for
Precedent Packaged Rooftop Air-Conditioners Application
Guide.

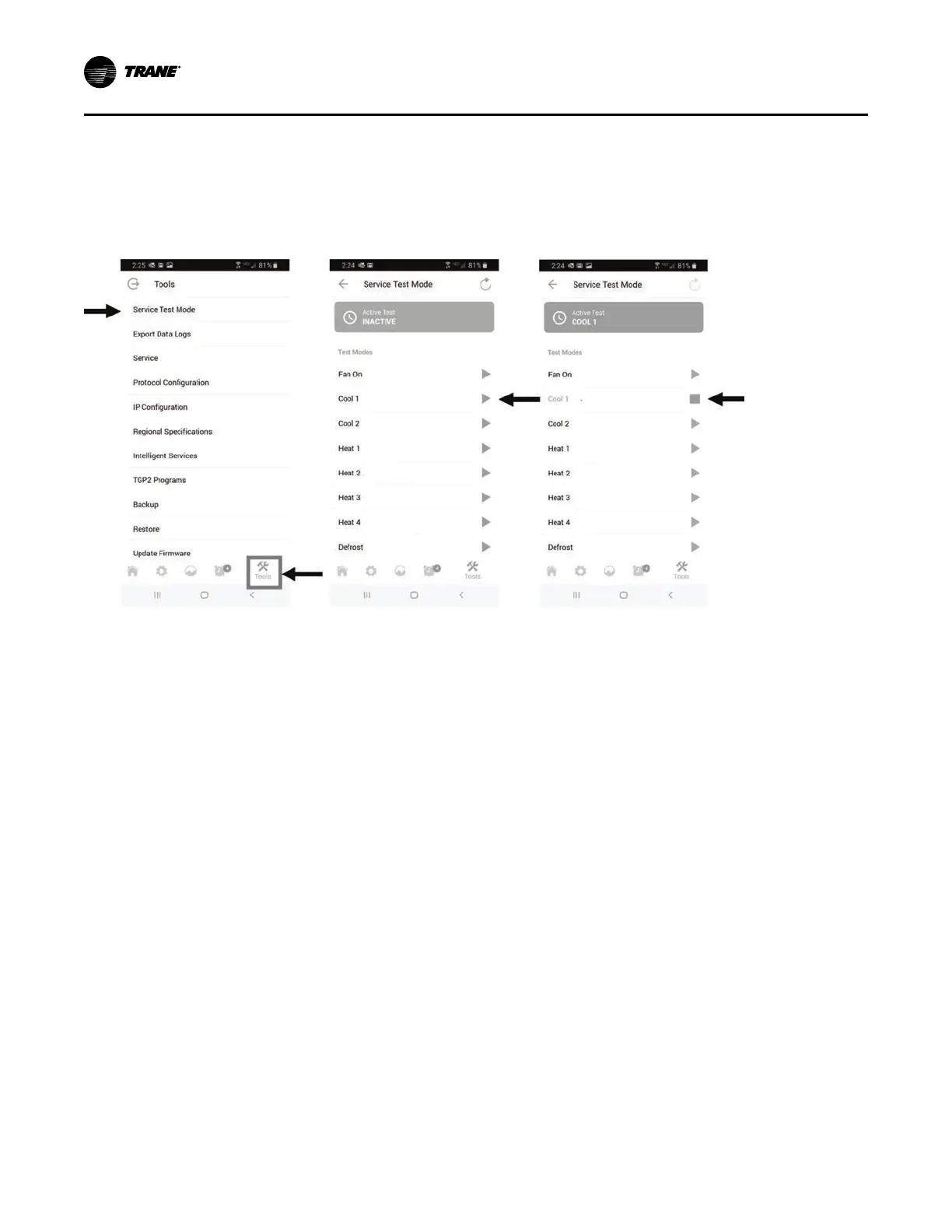

Figure 25. Symbio 700 service test mode
Pre-Start
