Page 13
Installer’s Guide

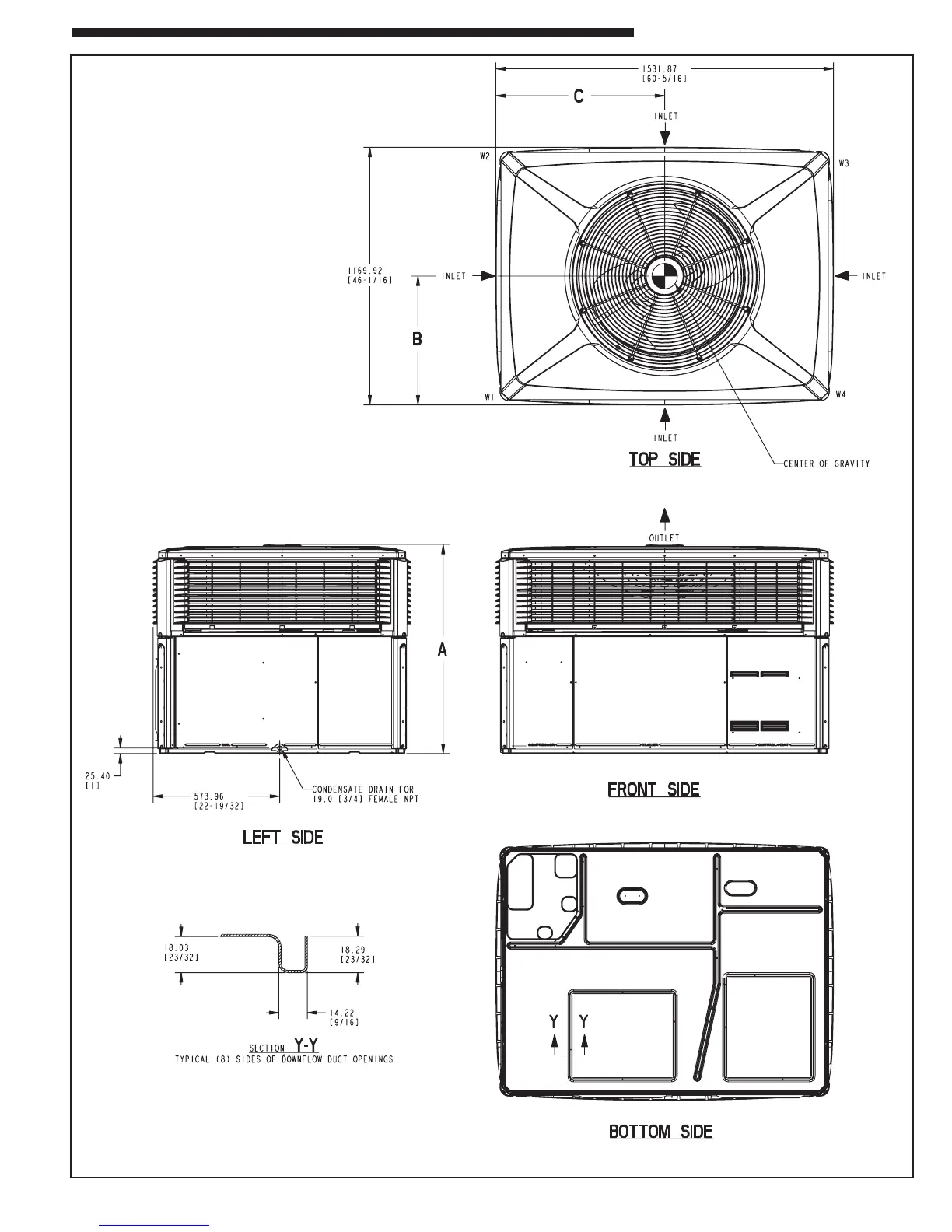

Figure 10. 4WCX3042 through 4WCX3060 (1 of 3)
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
