Installer’s Guide
Step 2—Determine Unit Clearances

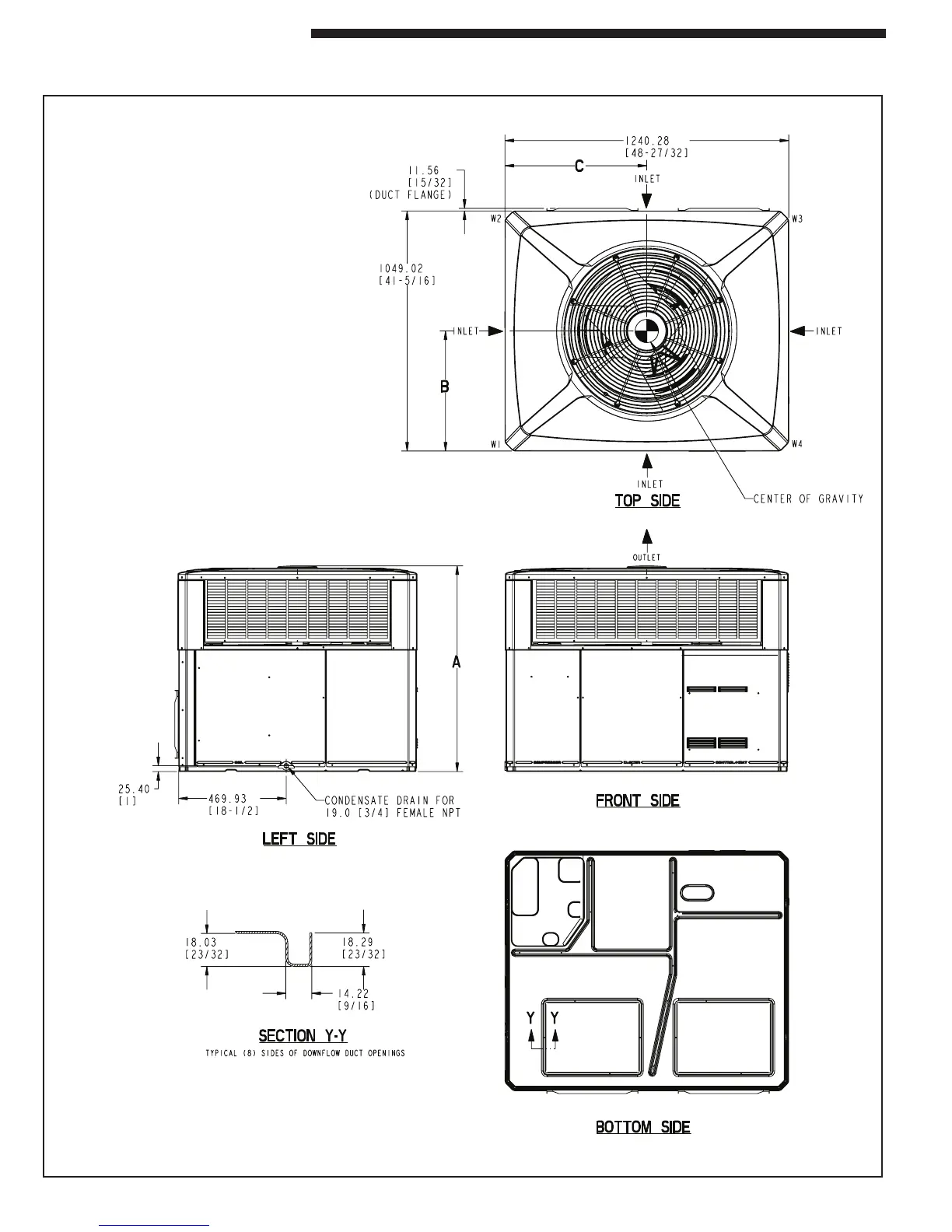

Figure 1. 4WCC3018 through 4WCC3036 (1 of 3)
Figures 1 through 12 show the unit critical dimensions. Fig-
ures 1 through 6 show the 4WCC3 clearances and Figures 7
through 12 show the 4WCX3 clearances.
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
