Page 7
Installer’s Guide

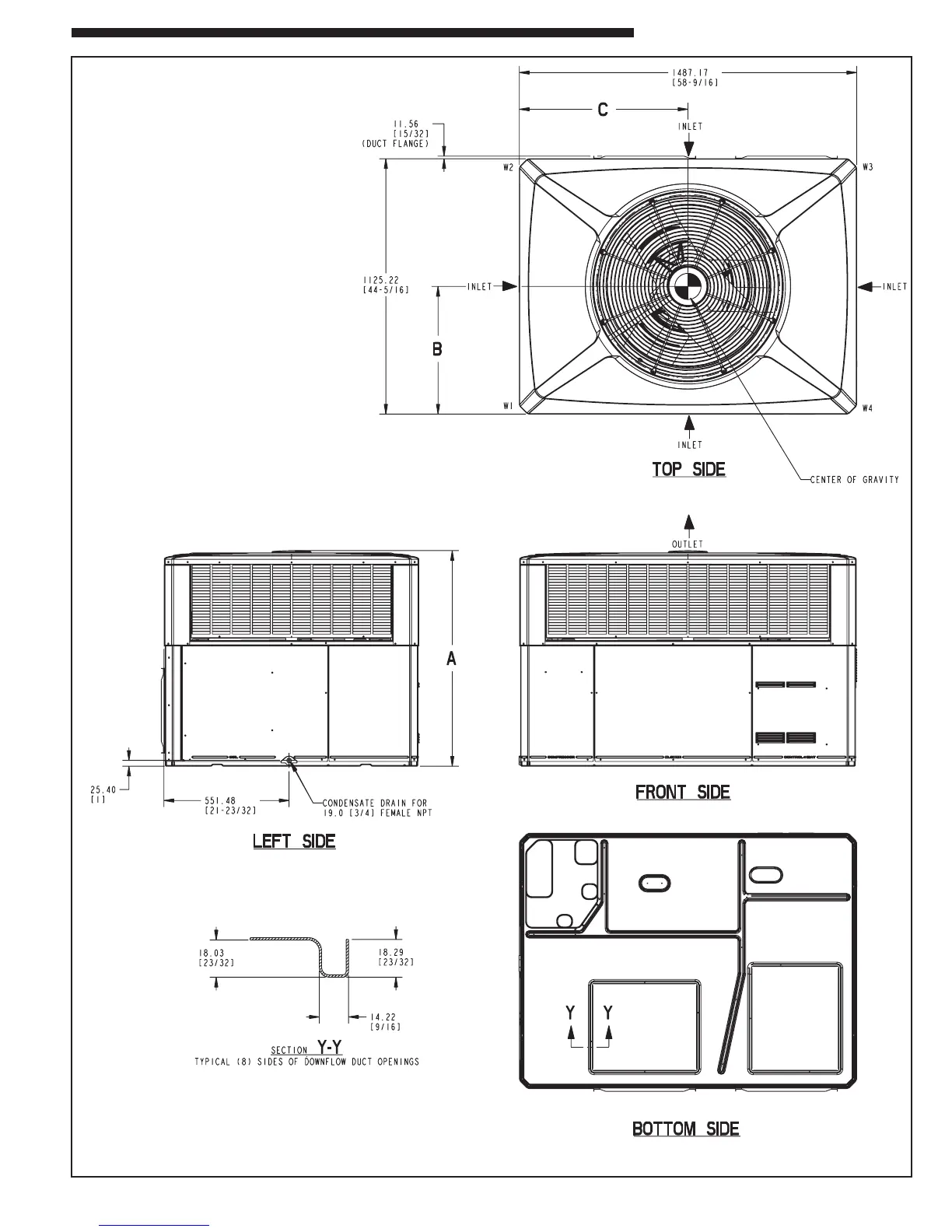

Figure 4. 4WCC3042 through 4WCC3060 (1 of 3)
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
