|nsta||er's Guide

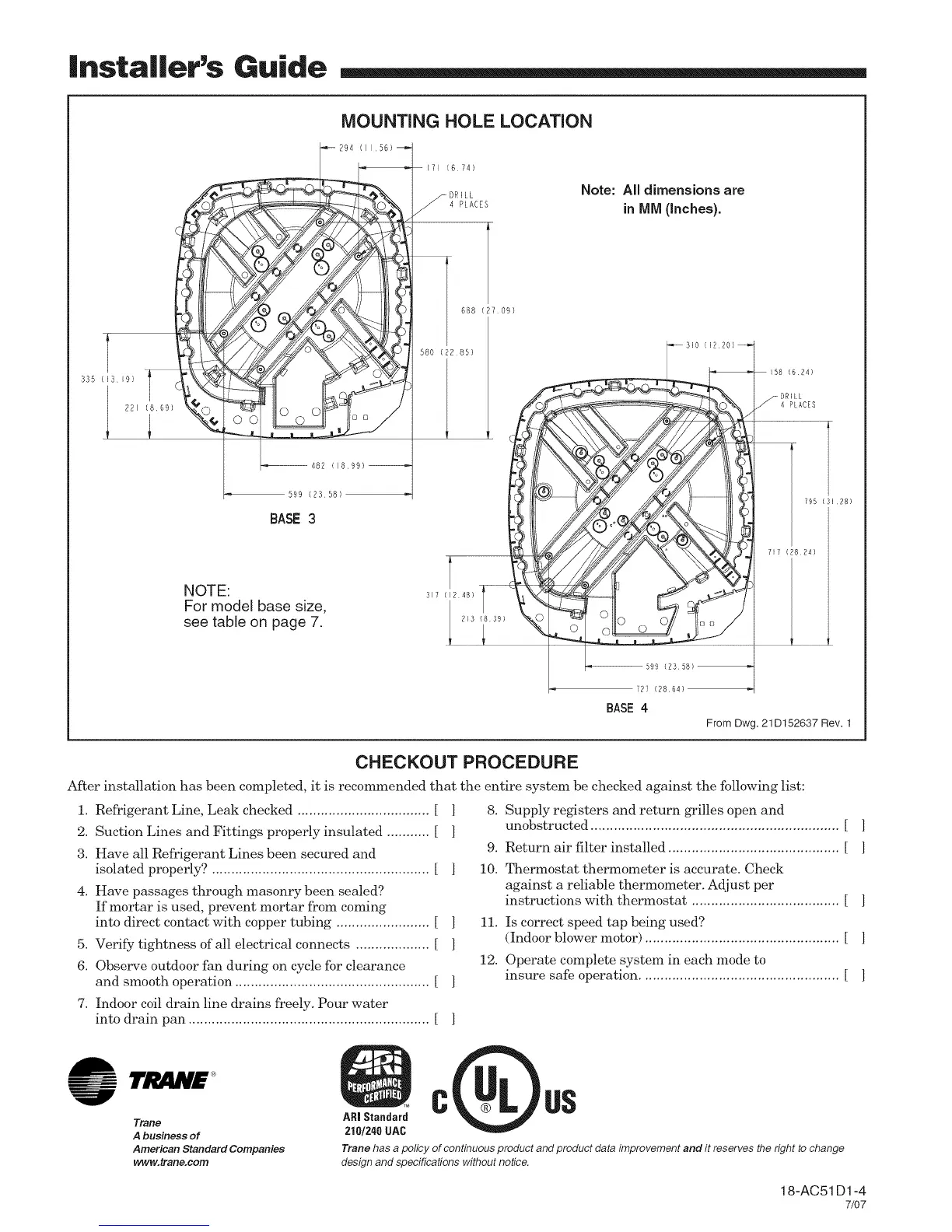

MOUNTING HOLE LOCATION
(I
Ill (674)
Note: All dimensions are
in MM (inches).
688 (2709)
T
335 (139)
221 (i.69)
482 (1899)
599 (2358)
BASE 3
NOTE:
For model base size,
see table on page 7.
580 (2285)
_3[0 ([220}_
_599 (2358)
727 (2864)
BASE4
158 (624)
s DRILL
4 PLACES
195 (3128)
717 (2824)
From Dwg. 21D152637 Rev. 1
CHECKOUTPROCEDURE
A_er installation has been completed, it is recommended that the entire system be checked against the _llowing list:
1. Refrigerant Line, Leak checked .................................. [ ]
2. Suction Lines and Fittings properly insulated ........... [ ]
3. Have all Refrigerant Lines been secured and
isolated properly? ........................................................ [
4. Have passages through masonry been sealed?
If mortar is used, prevent mortar from coming
into direet contact with copper tubing ........................ [
5. Verify tightness of all electrical connects ................... [
6. Observe outdoor fan during on cycle for clearance
and smooth operation .................................................. [
7. Indoor coil drain line drains freely. Pour water
into drain pan .............................................................. [
]
]
8. Supply registers and return grilles open and
unobstructed ................................................................ [ ]
9. Return air filter installed ............................................ [ ]
10. Thermostat thermometer is accurate. Check
against a reliable thermometer. Adjust per
instructions with thermostat ...................................... [ ]
11. Is correct speed tap being used?
(Indoor blower motor) .................................................. [ ]
12. Operate complete system in each mode to
insure safe operation ................................................... [ ]
Trane AR[ Standard
A business of 210/240 UAC
American Standard Companies
www.trane.com
C US
Trane has a policy of continuous product and product data improvement and it reserves the right to change
design and specifications without notice.
18-AC51 D1-4
7/07
