14. Reinstall the drain pan support bracket. The bracket
should be located between the two drain plugs as
shown.

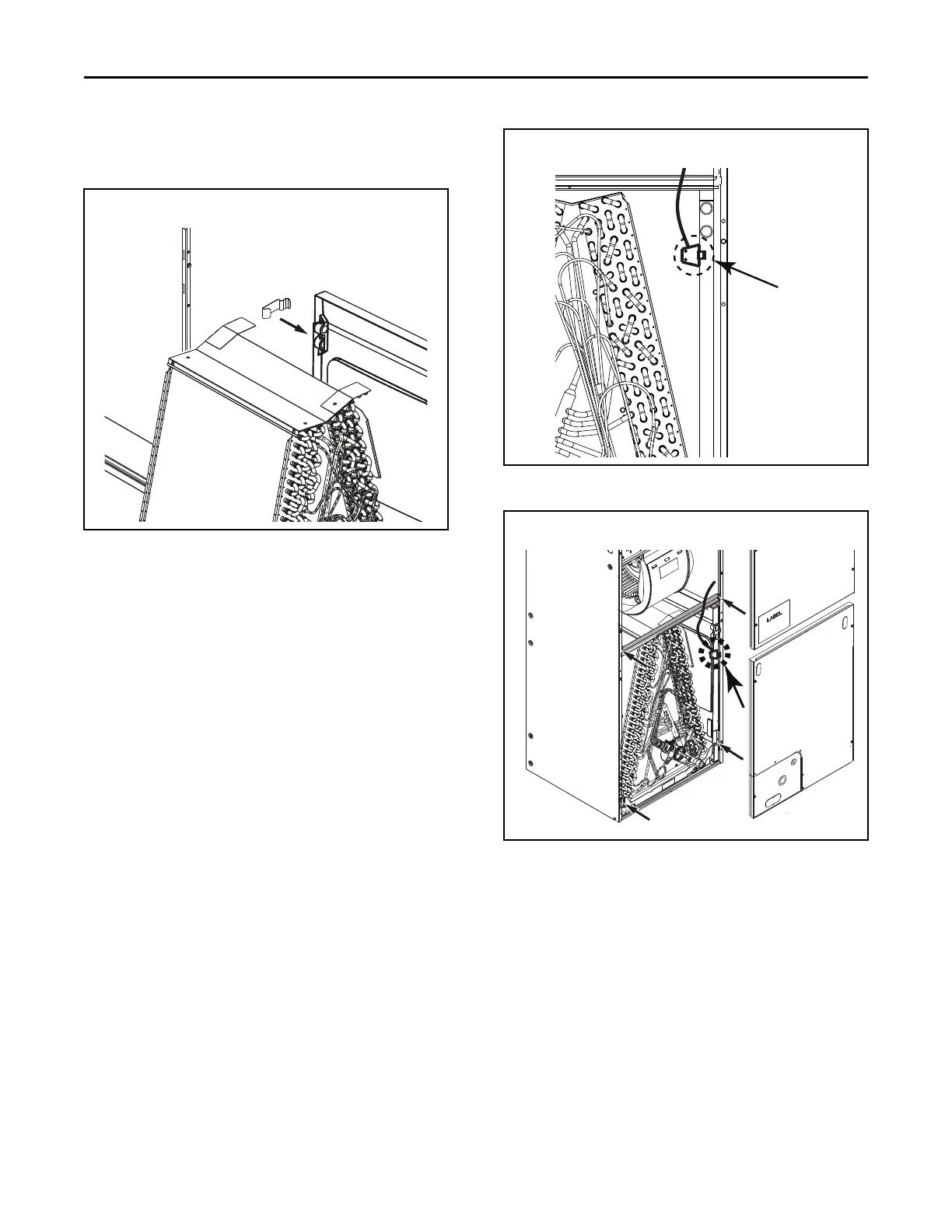

Figure 24. All models
15. Slide the coil assembly back into the air handler
cabinet.
IImmppoorrttaanntt:: Make sure that the coil corner locks in place
under the tab in the side left bracket to
support the coil weight in the horizontal
right position.
16. Replace the center horizontal bracket using screws
removed earlier in Step 3.
17. Replace the two coil retaining brackets removed in
a previous step.
18. Rotate unit into horizontal right position.
19. Install sensor onto secondary drain pan using the
provided clip. Sensor should be positioned close to
the drain lines. Reconnect the sensor to the wire
harness and position extra wire length in the drain
pan.
Figure 25. All Models
20. Replace all panels.
Figure 26. All Models
UUnniitt CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
