Trane 7½ - 20 Tons - Typical Wiring - Dual Compressor Heat Pump

Trane 7½ - 20 Tons
64 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
SSP-PRC001-EN 39
Typical Wiring

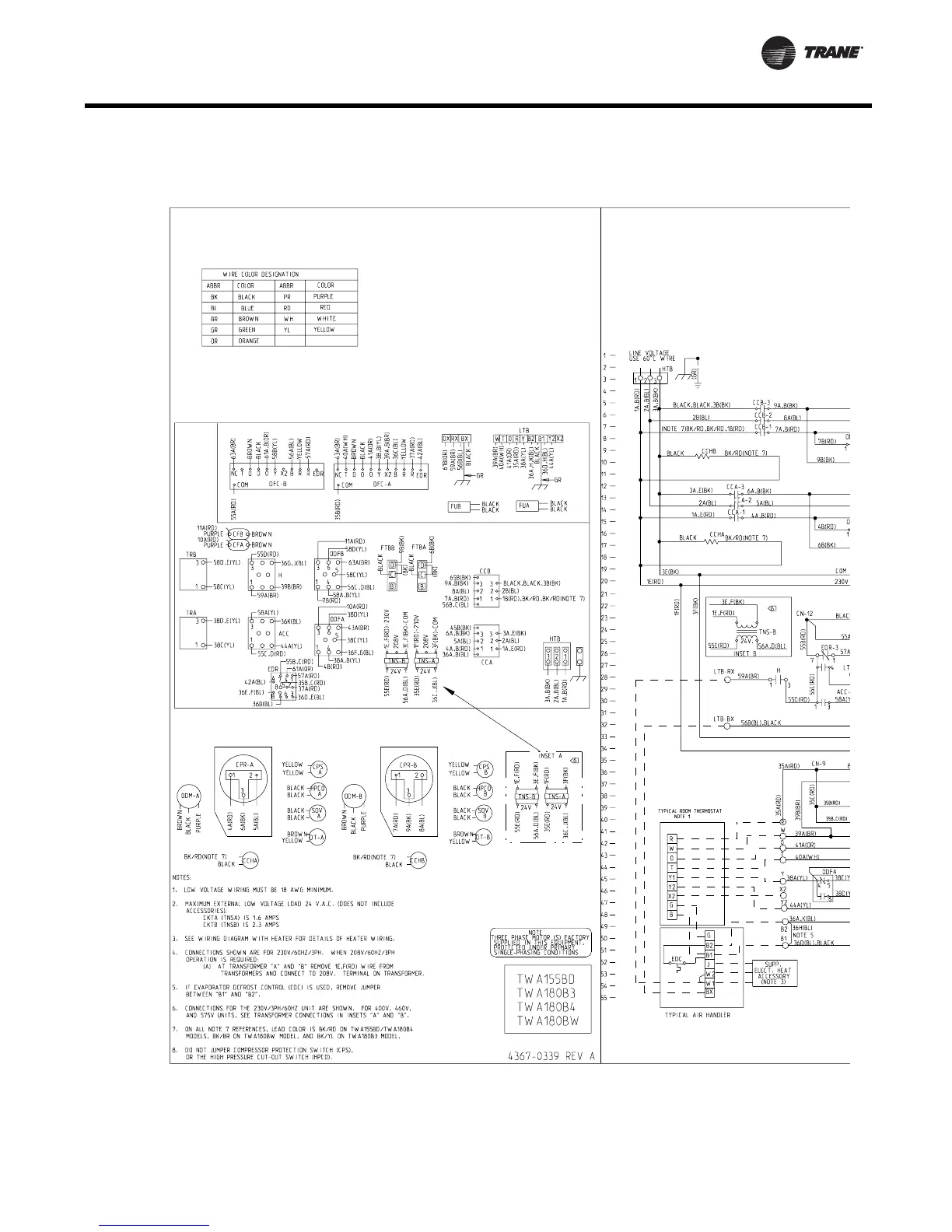

Heat Pump Dual Compressor Wiring Diagram
Figure 18. Heat Pump - Dual Compressor. For specific wiring, see individual Service Facts.
