Trane 7½ - 20 Tons - Weights - Unit and Corner Weights; Accessory Weights

58 SSP-PRC001-EN
Table 49. Unit and Corner Weights (lbs.)
Corner Weights
Tons Unit Model No.
Shipping Maximum
(lbs)
Net Maximum
(lbs) 1 2 3 4
7 TWA090A 390 343 112 89 63 79
10 TWA120A 502 443 149 116 78 100
15 TWA180B 816 740 195 186 175 184
20 TWA240B 970 885 253 250 190 192
Table 50. Accessory Weights (net lbs.)
Tons Unit Model No. RIS Isolators
Steel Spring
Isolators
Anti Short
Cycle Timer
Coil
Guard
Thermostat
s
Low
Ambient
7½ TWA090A 2 12 1 8 1 23
10 TWA120A 2 12 1 11 1 23
15 TWA180B 2 12 1 22 1 23
20 TWA240B 2 12 1 34 1 23

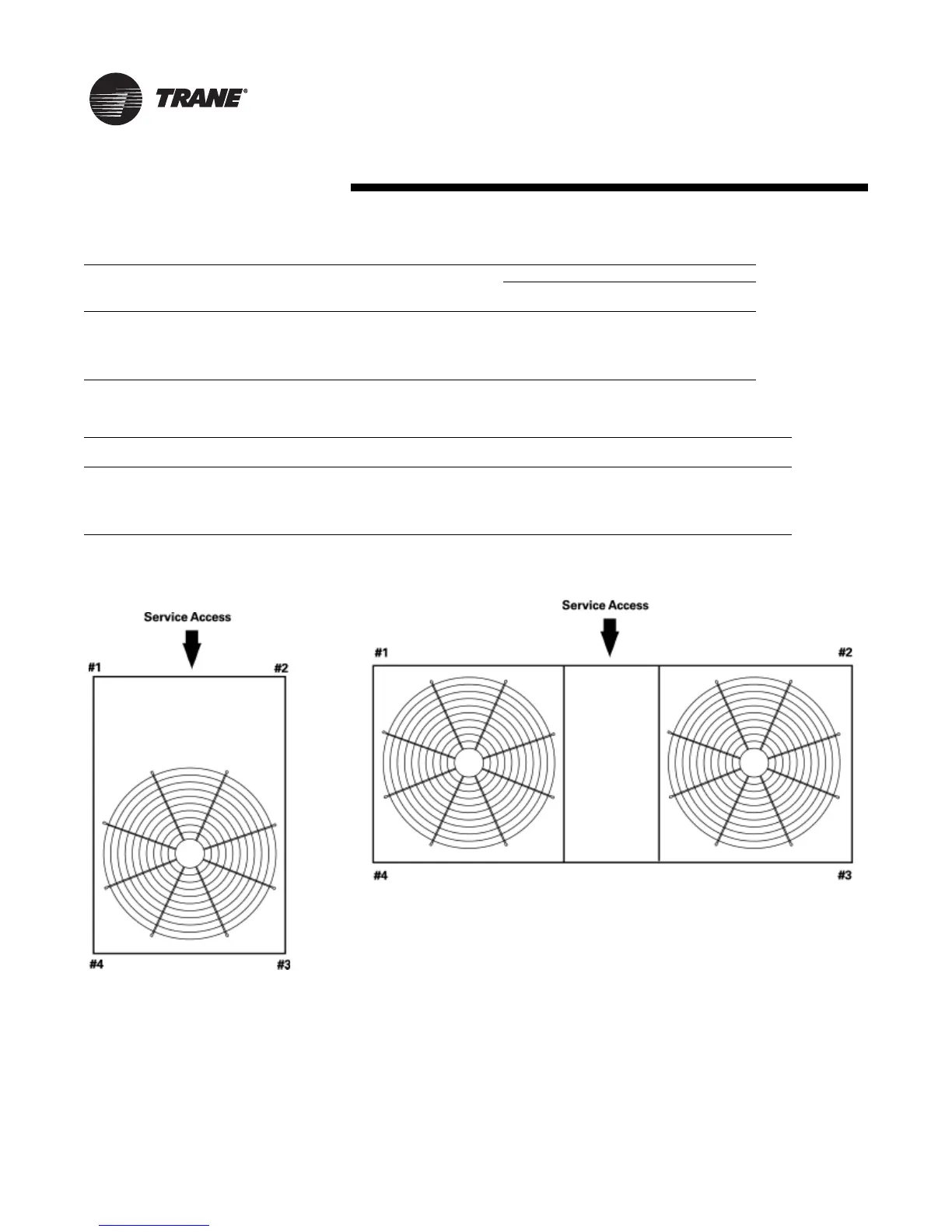

Figure 40. 7½ and 10 Ton
TWA090A, 120A
Figure 41. 15 and 20 Ton TWA180A, 240B
Weights
