Trane 7½ - 20 Tons - Weights - Air Handler Unit and Accessory Weights

SSP-PRC001-EN 59
Weights
Table 51. Unit and Corner Weights (lbs.)
Tons
Unit
Model No.
Shipping
Maximum
(lbs)
Net
Maximum
(lbs)
Corner Weights — Vertical Corner Weights — Horizontal
1234ABCD
5 TWE060A, B 298 232 59 59 59 59 54 64 64 54
7½ TWE090A, B 388 317 79 79 79 79 73 81 84 77
10 TWE120A, B 439 392 98 98 98 98 95 101 101 95
15 TWE180B 754 692 173 173 173 173 156 174 190 170
20 TWE240B 886 816 204 204 204 204 179 221 228 185
Notes:
1. If application requires steam or hot water heating coils, field supplied isolators must be utilized.
Table 52. Accessory Weights (net lbs.)
Tons
Unit Model
No.
Discharge
Plenum &
Grille
(i)
(i)
For use when no supplemental heat is supplied.
Discharge
Plenum &
Grille
(ii)
(ii)
For use with electric heat.
Return
Air
Grille
Electric
Heat
Min/Max Subbase
Oversized
Motor
RIS
Isolator
Floor
Mount
RIS
Isolator
Suspended
Mount
Steel
Spring
Isolator
Floor
Mount
Steel
Spring
Isolator
Suspended
Mount
Control
Transformer
5 TWE060A,B 58 93 3 32/43 14 31 2 9 12 6 —
7½ TWE090A,B 73 123 5 27/45 19 48 2 6 12 6 4
10 TWE120A,B 92 156 7 27/45 23 50 2 7 12 6 4
15 TWE180B 124 230 10 79/100 27 80 2 7 12 6 —
20 TWE240B 145 264 12 79/100 31 88 2 9 12 6 —

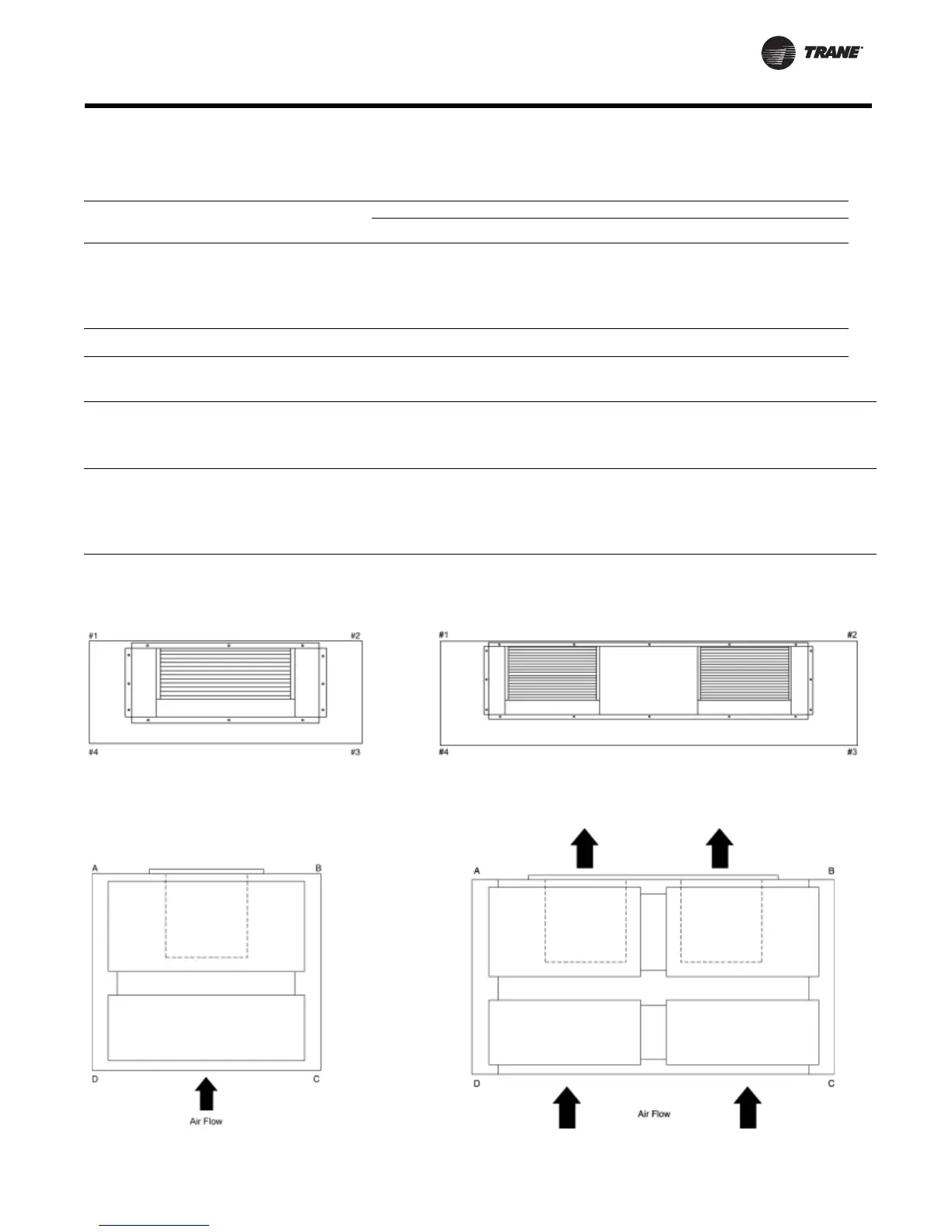

Figure 42. Vertical - 5, 7½ & 10 Ton TWE060A, 060B, 090A, 120A, 120B (left), 15 & 20 Ton TWE0180B, 240B (right)
Figure 43. Horizontal - 5, 7½ & 10 Ton TWE060A, 060B, 090A, 120A, 120B (left), 15 & 20 Ton TWE0180B, 240B (right)
Air Handlers
