Dimensional Data
15 Tons

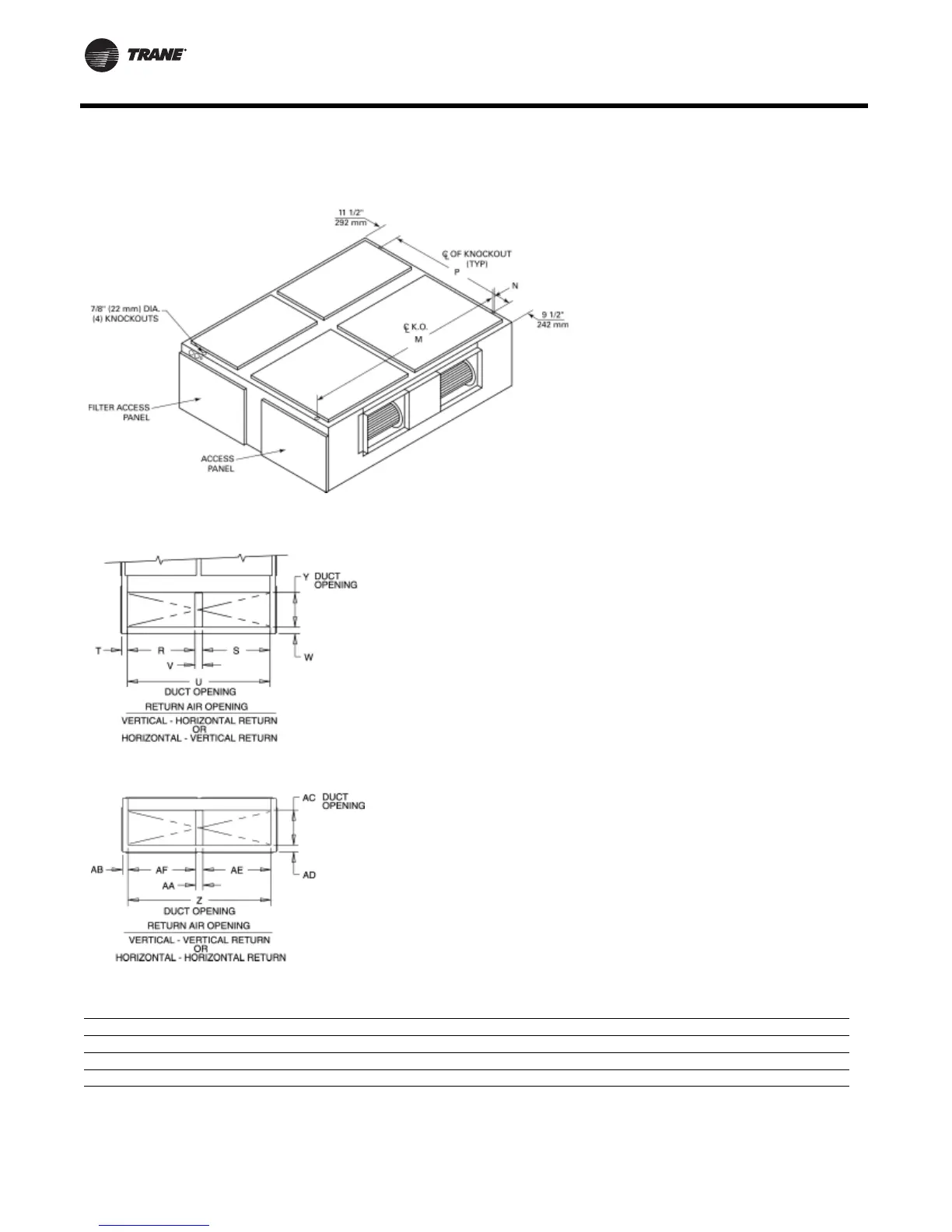

Figure 28. 15 Tons TWE180 Air Handlers
Figure 29. 15 Tons TWE180 Air Handlers
Table 42. Air Handler Dimensions (in.)
Tons Model No. A B C D E F G H J K L M N P
15 TWE180B 69 79-1/2 27-5/8 12-3/8 1-5/8 26 25-1/8 49-1/8 56-1/4 15-1/2 19-1/2 77-1/4 1 1/4 48
Tons Model No. R S T U V W Y Z AA AB AC AD AE AF
15 TWE180B 35 35 2-7/8 73-7/8 3-3/4 3-3/8 18 73-7/8 3-3/4 2-7/8 18 3-5/8 35 35
