Trane 7½ - 20 Tons - Dimensional Data - Accessories: Rubber Isolators

56 SSP-PRC001-EN
Dimensional Data
Accessories, Rubber isolators

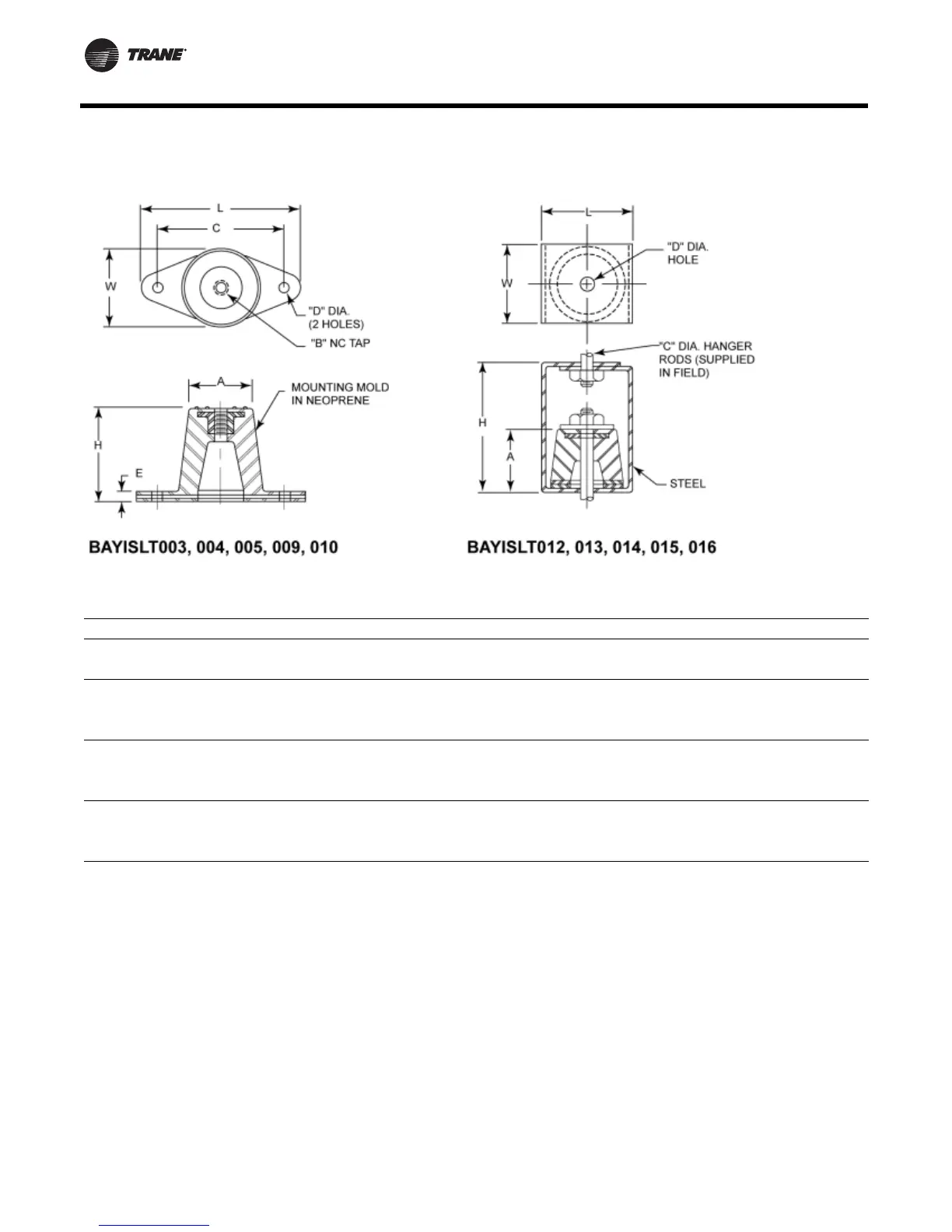

Figure 38. 5-20 Tons Rubber Isolators
Table 48. Isolator Dimensions (in.)
Model No. L W H A B C D E
BAYISLT003 3-1/8 1-3/4 1-1/4 1-1/4 3/8 2-3/8 3/8 1/4
BAYISLT004
BAYISLT005
BAYISLT009 3-7/8 2-3/8 1-3/4 1-3/4 3/8 3 3/8 1/4
BAYISLT010
BAYISLT013
BAYISLT014 2-1/4 2 3 1-3/8 3/4 3/8 1/2 —
BAYISLT015
(i)
(i)
BAYISLT015 contains quantity 2 of the 2 1/4 x 2 x 3 isolators and quantity 3 of the 3 x 2 1/4 x 4 1/2 isolators.
BAYISLT012
BAYISLT015
(i)
3 2-1/4 4-1/2 1-7/8 1/4 5/8 3/4 —
BAYISLT016
