6. On both sides of the cabinet, remove the screws
that hold the coil support brackets and retain for
later use. Seal the holes to prevent air leakage.
7. Rotate and lift the two coil support brackets to
remove from front slots in cabinet.

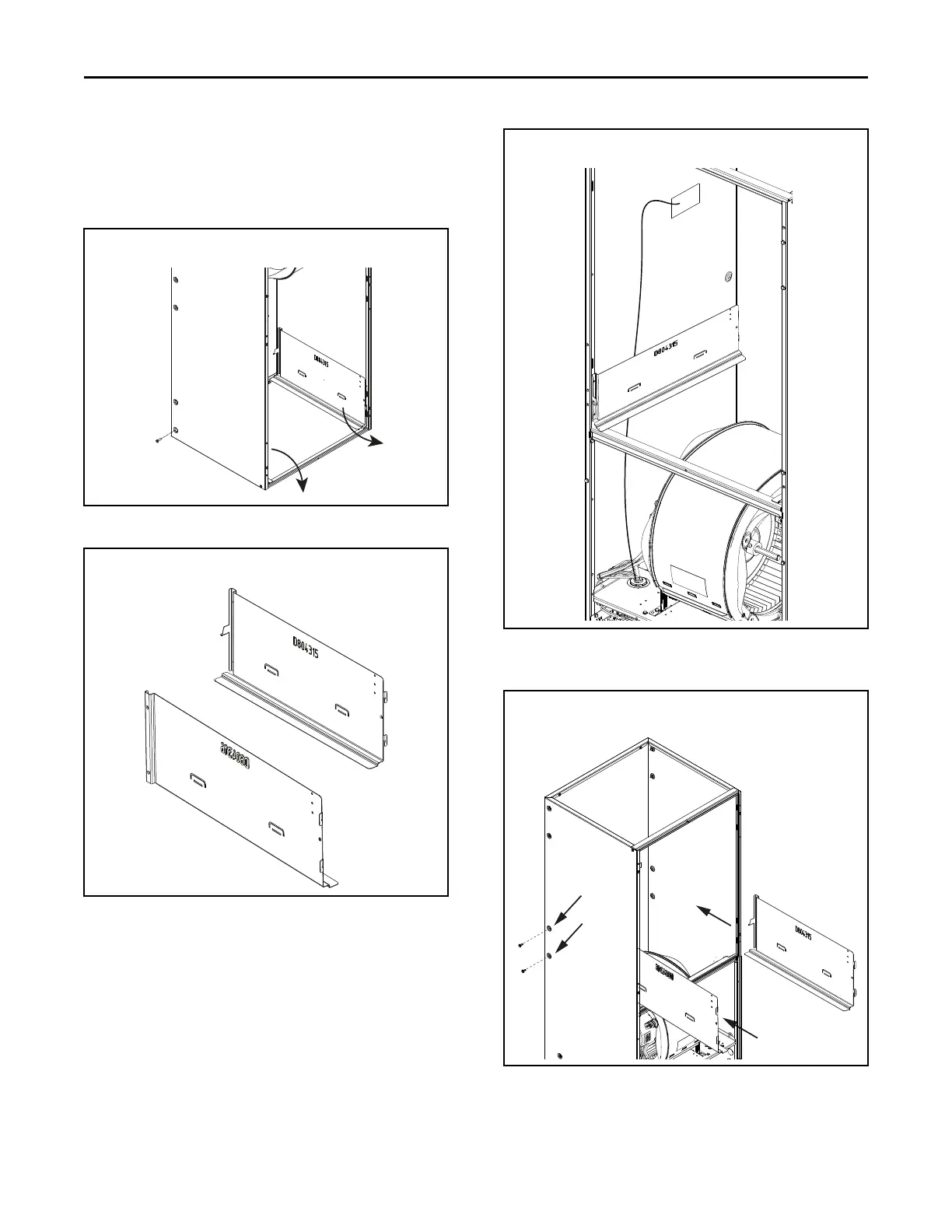

Figure 6. All models
Figure 7. All models
8. Rotate the unit into the downflow orientation.
9. Pre-drill four clearance holes in the cabinet at
dimples located below the location the screws were
removed for the coil support brackets. There are
two holes per side. See location of holes.
10. Replace the center horizontal bracket removed in
Step 3. Use the screws retained from Step 3 to
attach.
11. Place coil support brackets into the slots and rotate
into place. Push downward to lock into place.
Refrigerant sensor wire harness should be routed
between coil support bracket and the insulation.
Figure 8. All Models
12. Secure each bracket with the screws that were
previously removed.
Figure 9. All models
13. Slide the coil assembly back into the air handler
cabinet as shown.
