28
18-GF81D1-1A-EN

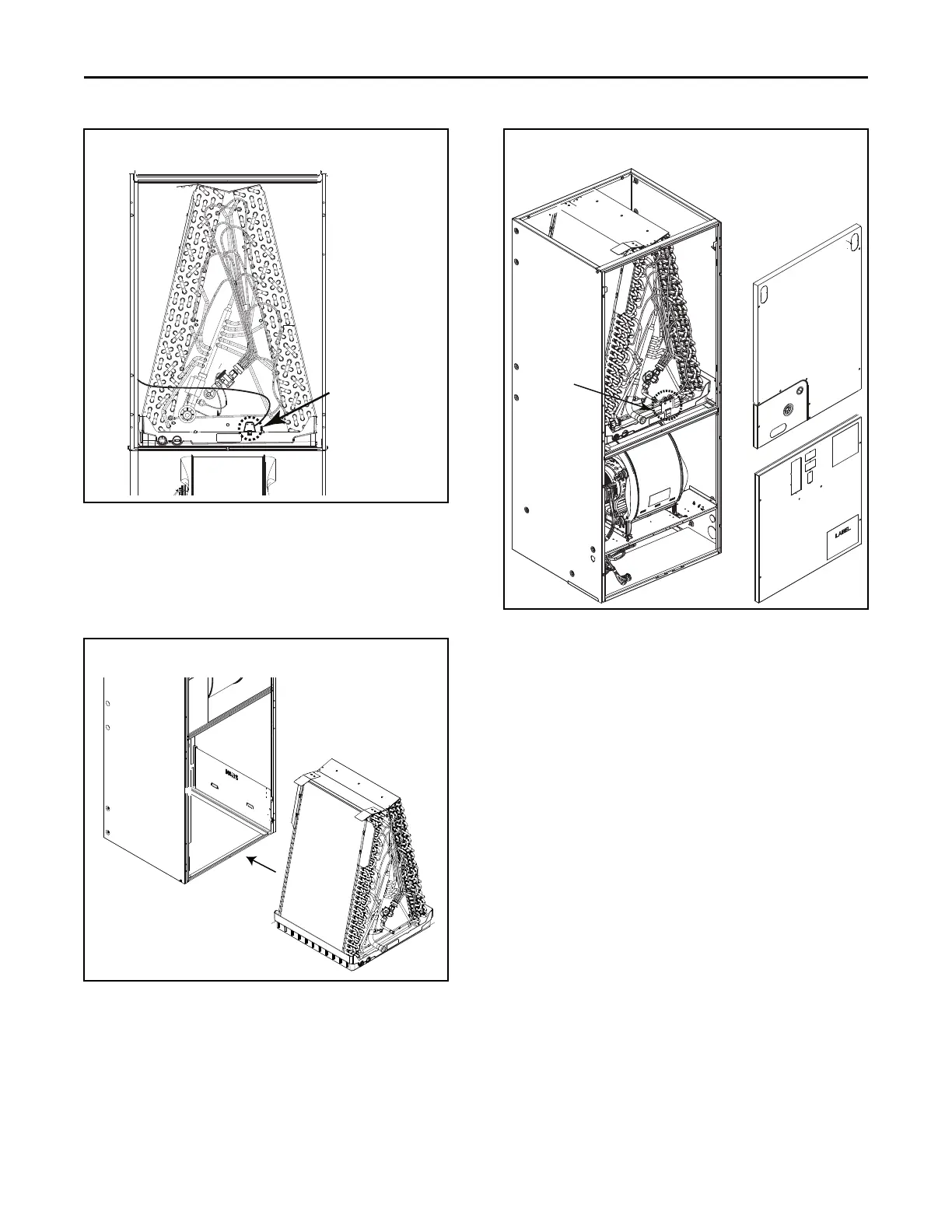

Figure 10. All Models
14. Clip refrigerant sensor back onto primary drain pan
(as shown in figure above) and reconnect the
sensor to the wire harness. Position extra wire
length next to the coil.
15. Remove the appropriate knock out for the
condensate piping.
Figure 11. All Models
16. Replace all panels.
Figure 12. All Models
HHoorriizzoonnttaall RRiigghhtt
IImmppoorrttaanntt:: For horizontal applications, airflow
restrictions apply for condensate blow off.
Refer to Air Flow Performance Tables in
this manual.
Follow the conversion steps when installing the air
handler in horizontal right configuration.
1. Remove the front panels from the air handler. The
coil and line set panel do not need to be separated.
2. Remove the fasteners on both sides of the coil.
Retain the coil retaining brackets and screws.
3. Remove the two screws holding the center
horizontal bracket and rotate out of place. Retain
parts.
4. Pull refrigerant sensor up and away from the
primary drain pan and remove it from the pan.
Detach the sensor and clip from the wire harness
and move it out of the way.
UUnniitt CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
