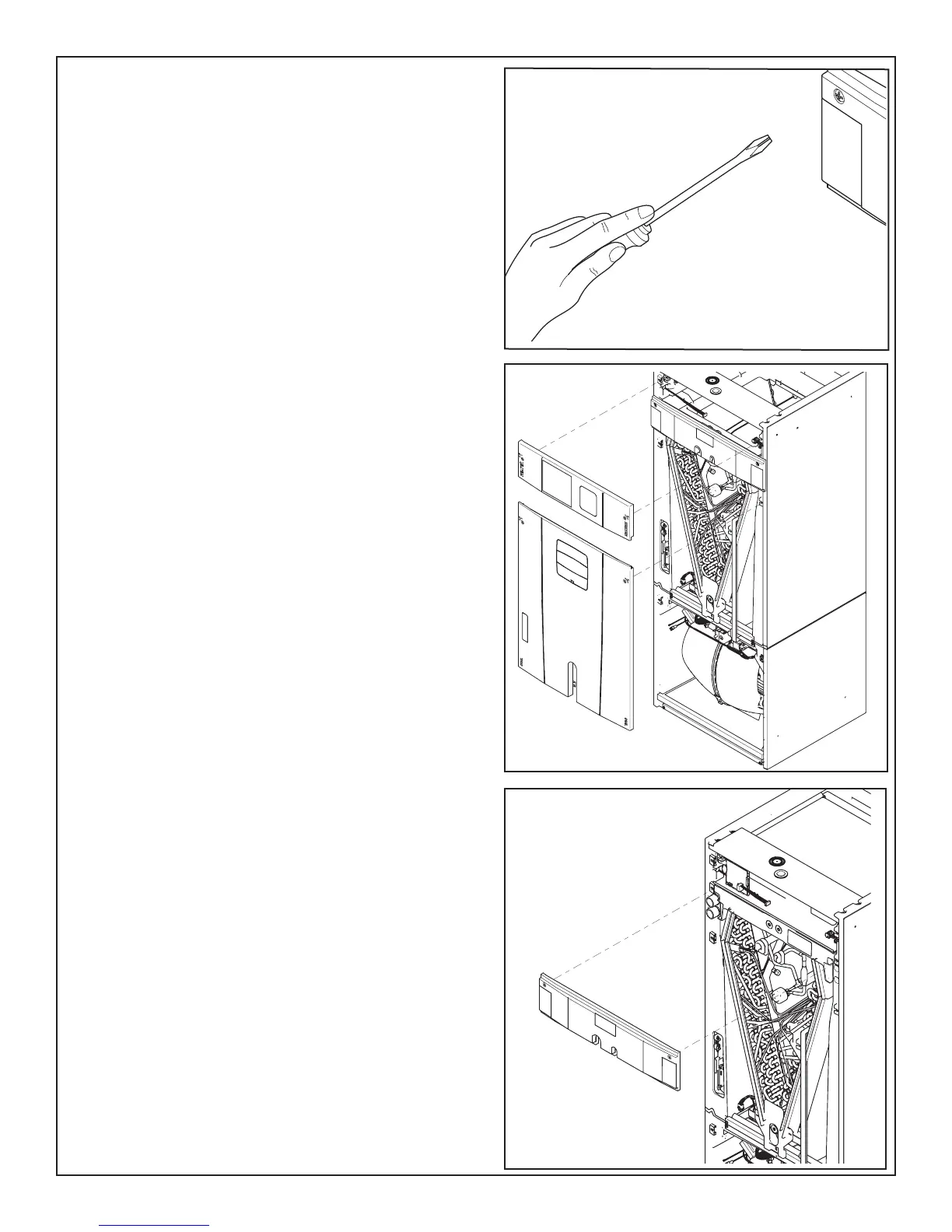

The Coil, Line Set, and Heater panels are removed
using Phillips head screws.
#3 Size Phillips
Coil and Heater panels must be removed prior to re-
moving the Line Set panel.
To remove Coil Panel:
1. Turn screws on Coil panel.
2. Pull bottom of panel out, away from cabinet.
3. Pull panel down and out of channel.
4. Set aside.
To remove Heater Panel:
1. Turn screws on Heater panel.
2. Pull panel straight out, away from cabinet.
3. Set aside.
Removal of the Line Set panel is required for all refrig-
erant line brazing and some condensate line assembly
depending on your orientation.
To remove Line Set panel:
1. Remove both Heater and Coil panels.
2. Turn screws on Line Set Panel.
2. Pull panel straight out, away from cabinet.
3. Set aside.
NOTE: After replacing all panels, loosen the Line Set
Panel screws approximately 1/4 - 1/2 turn. This will
improve the seal between the Heater Panel and Line
Set Panel.
