Installation
Remove unit end panel, retain the screws removed from the top of panel and the screws removed
from bottom of panel for use later.
Downflow Installation
For Downflow Installation, assemble end panel to the economizer. Refer to Figure 2.
Horizontal Installation
For Horizontal Installation, assemble end panel to the economizer. Refer to Figure 3 for
disassembly instructions of the downflow configuration.

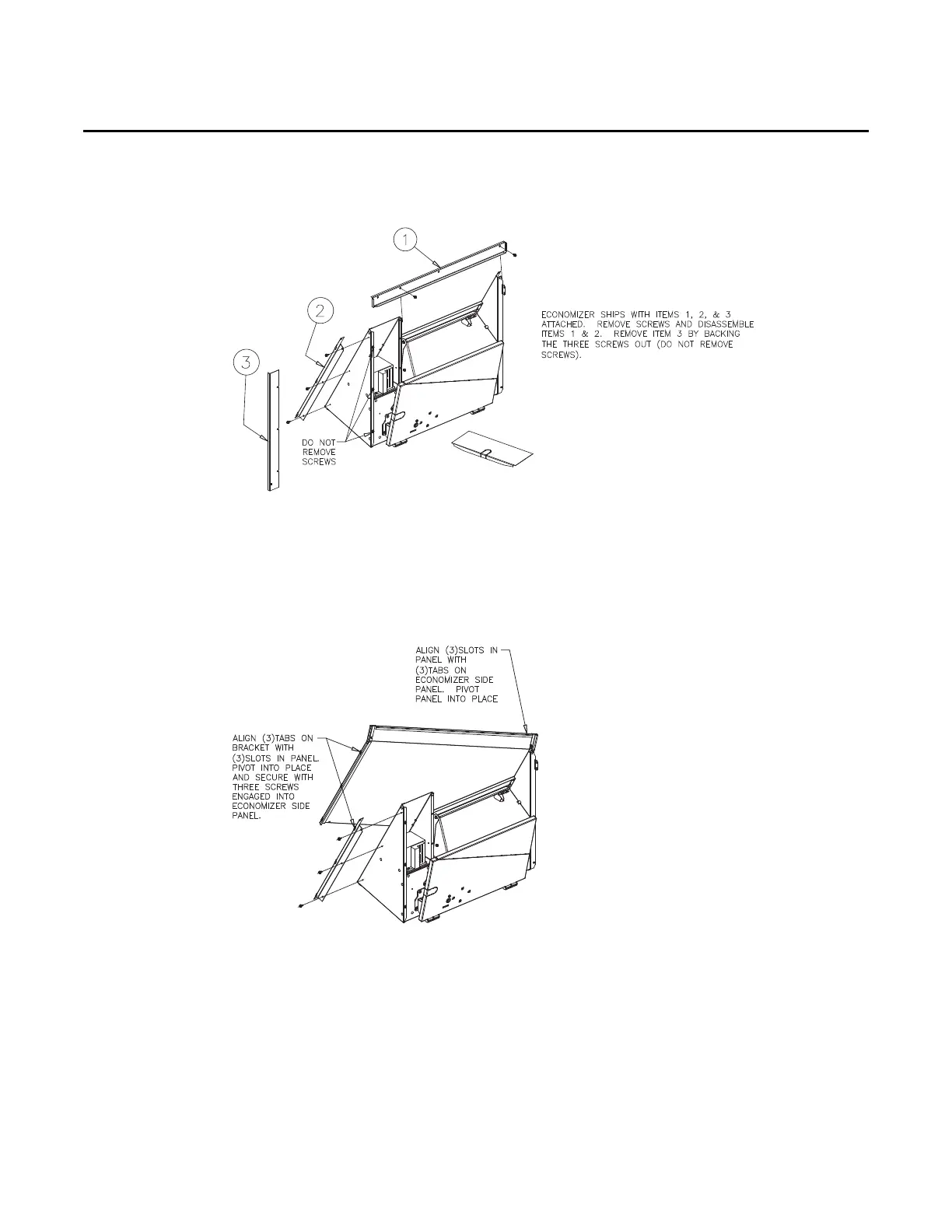

Figure 1.
Figure 2.
