Installation
Install the Mixed Air Sensor with grommet, secure with pop-in wire tie. Connect to exiting
jumper connections located in the Indoor Fan Section.
Wiring Connections ReliaTel Units
Locate unit wiring harness plug P7 and plug into J7 on the actuator motor.
Note: If Options Module (RTOM) is not installed then connect plug 3P4 to 3J4 on the Refrigeration
Module (RTRM) in the control box.
Electromechanical Units
Locate unit wiring harness plug PPM2A and plug into the actuator motor wiring harness.
Replace access panels.

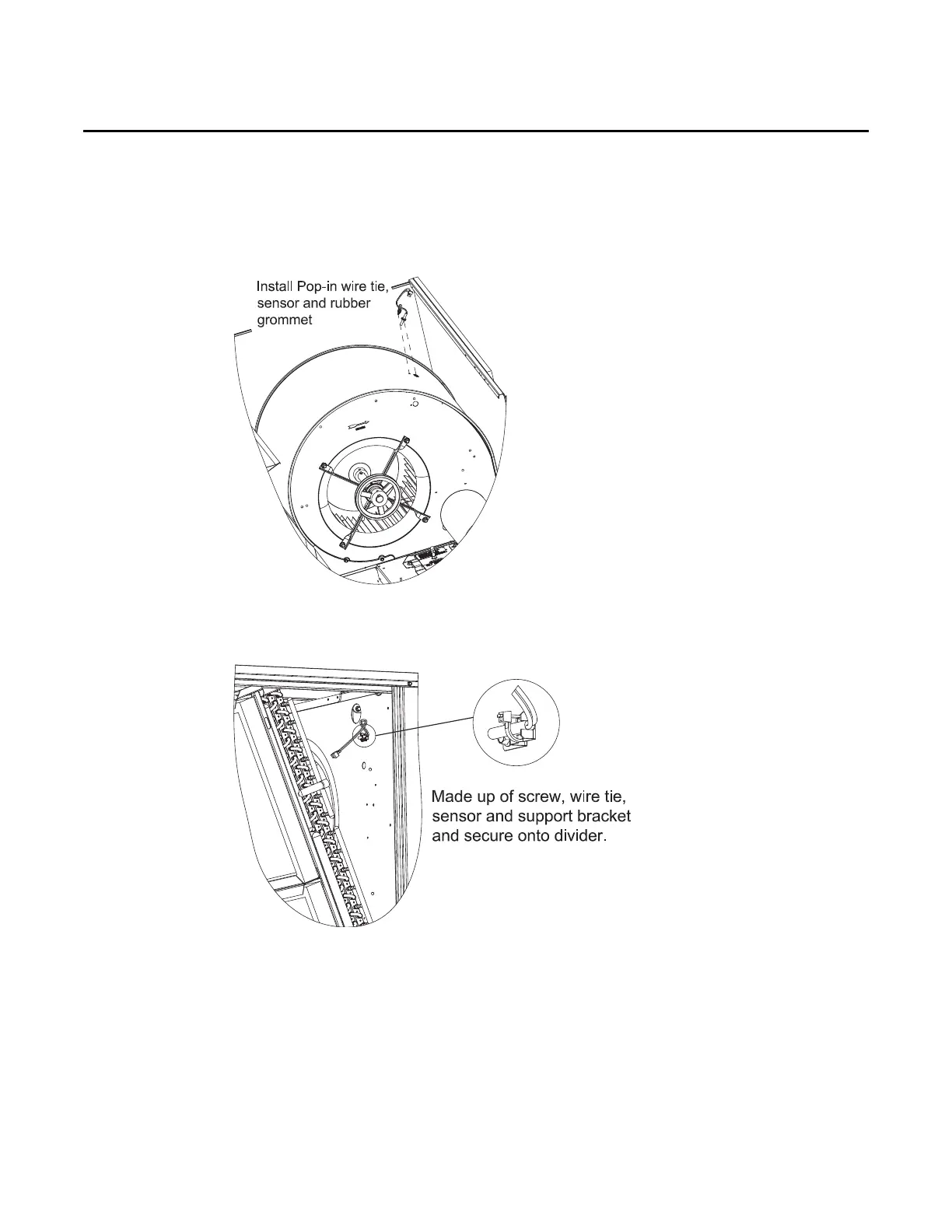

Figure 7. Mixed Air Sensor figure for units with FC fan (All units except Y/TSC120E(3/4/W), Y/
THC092-120E, WSC120E(3/4/W)
Figure 8. Mixed Air Sensor for units with Plenum fan (Y/TSC120E(3/4/W), Y/THC092-120E,
WSC120E(3/4/W)
