Trane CGAD050C - CGAD 050 C;060 C Dimensions

CG-PRC002A-EN 23
Dimensional
Data CGAD 050C / 060C

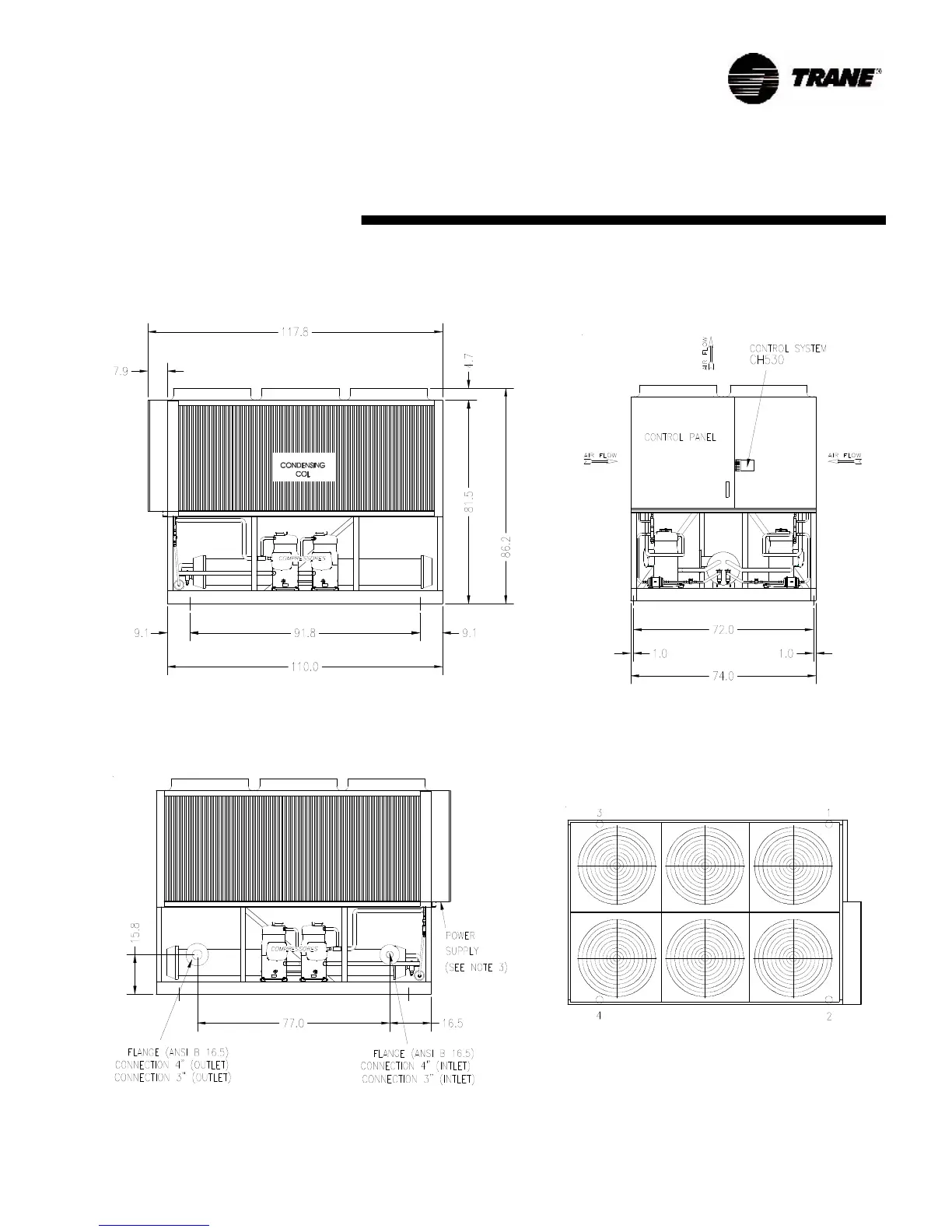

Fig. 13 - Unit Dimensions - CGAD 050B / 060C
Fig. 14 - Top View of Fans
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (4 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
3 - UNITS NOT SPECIFIED: mm
